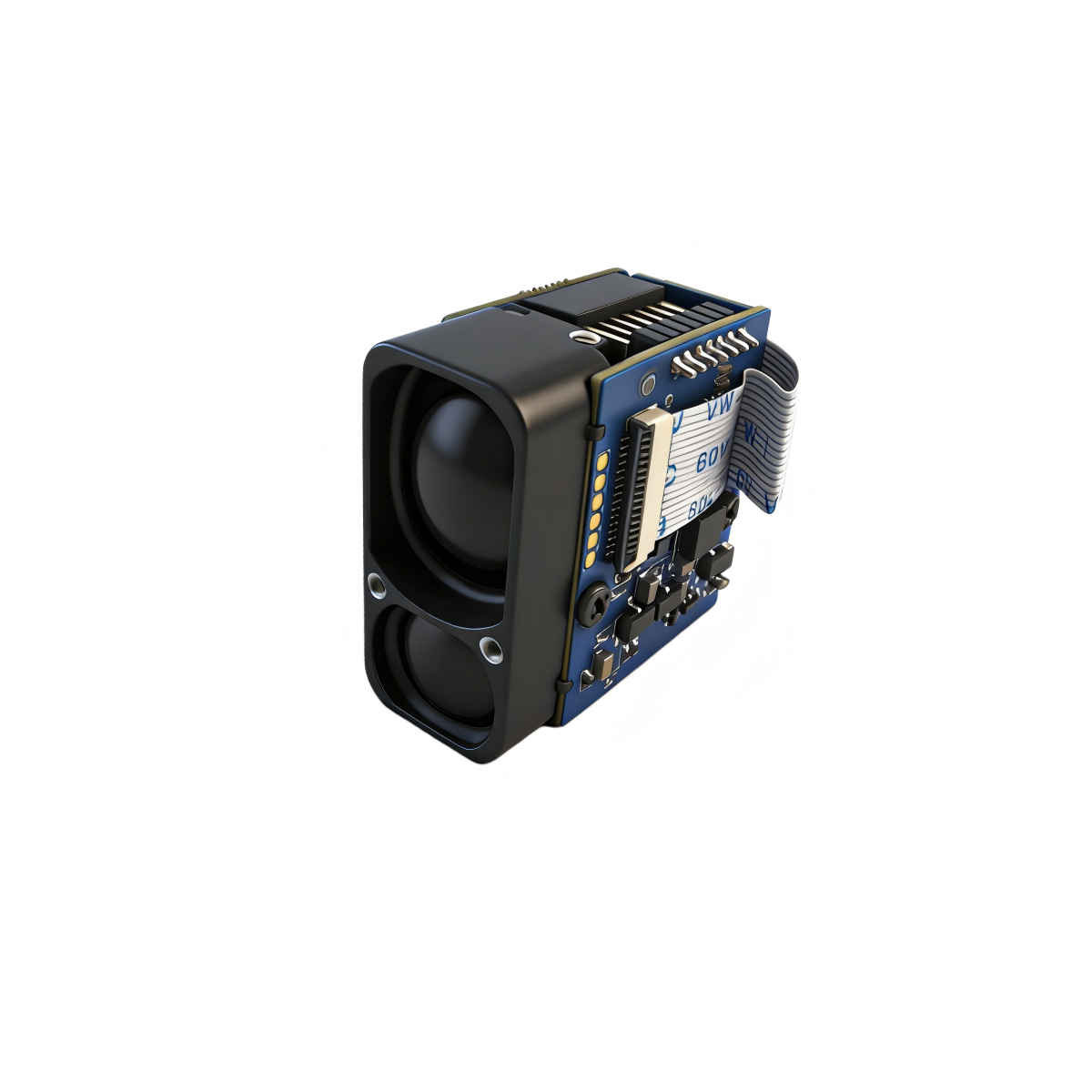

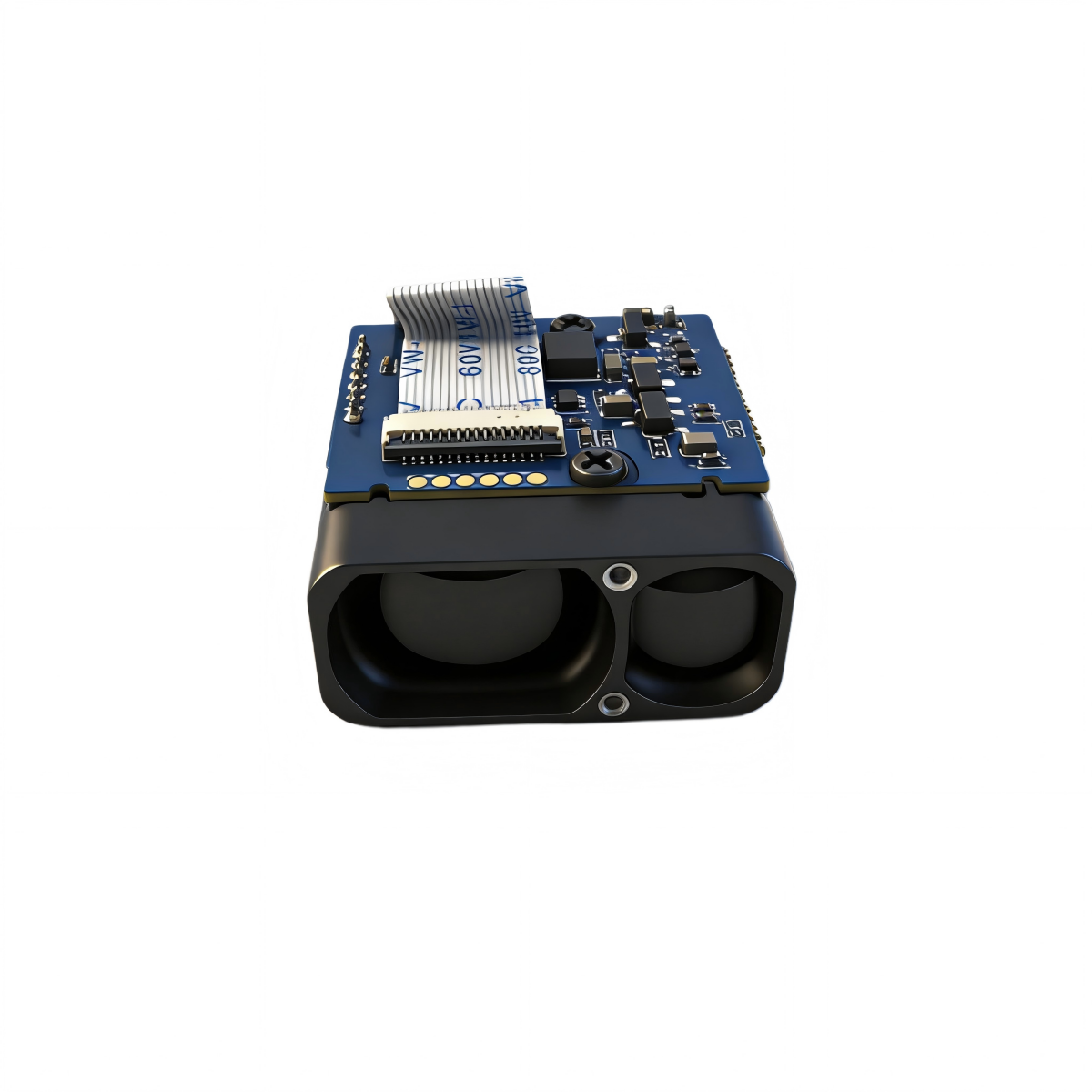

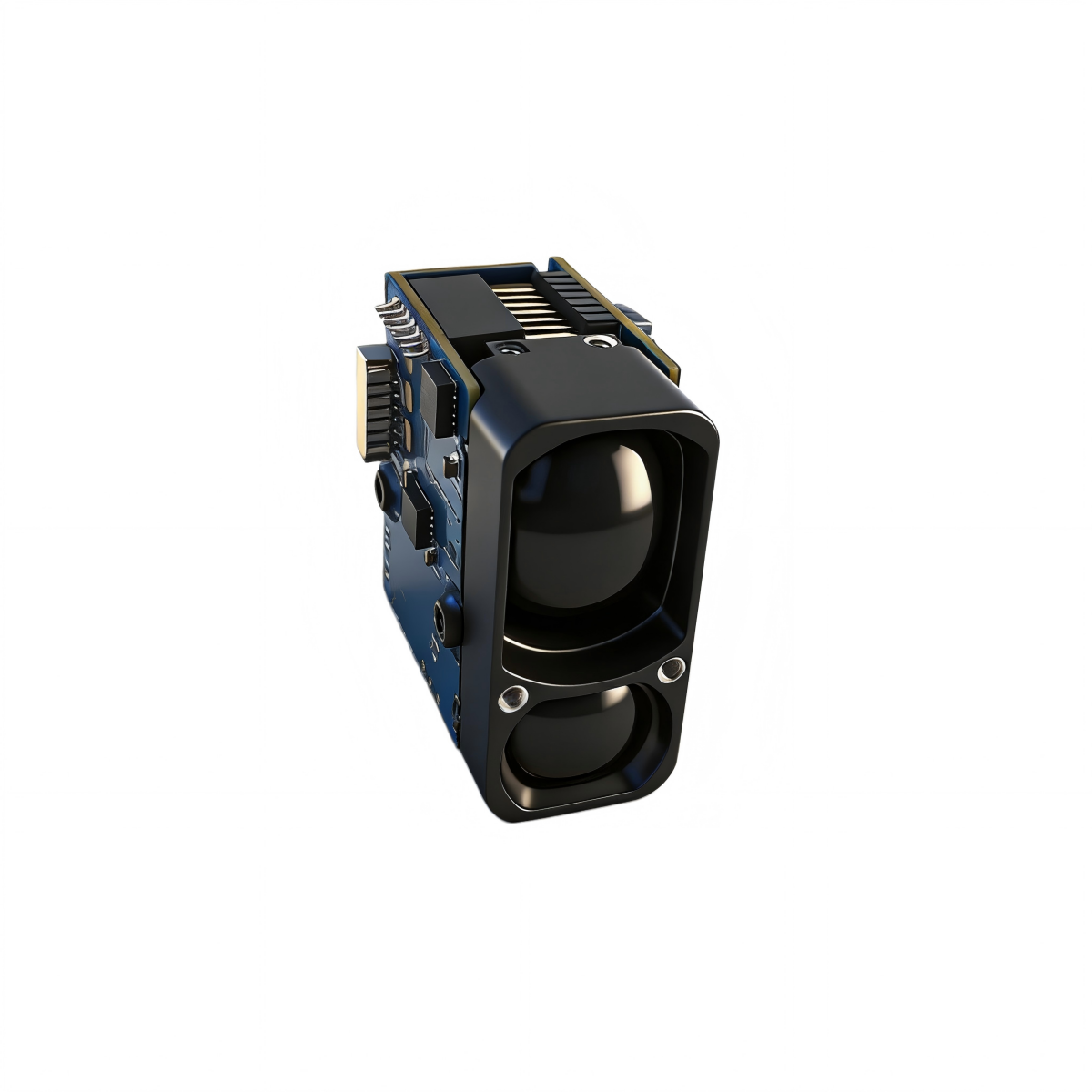

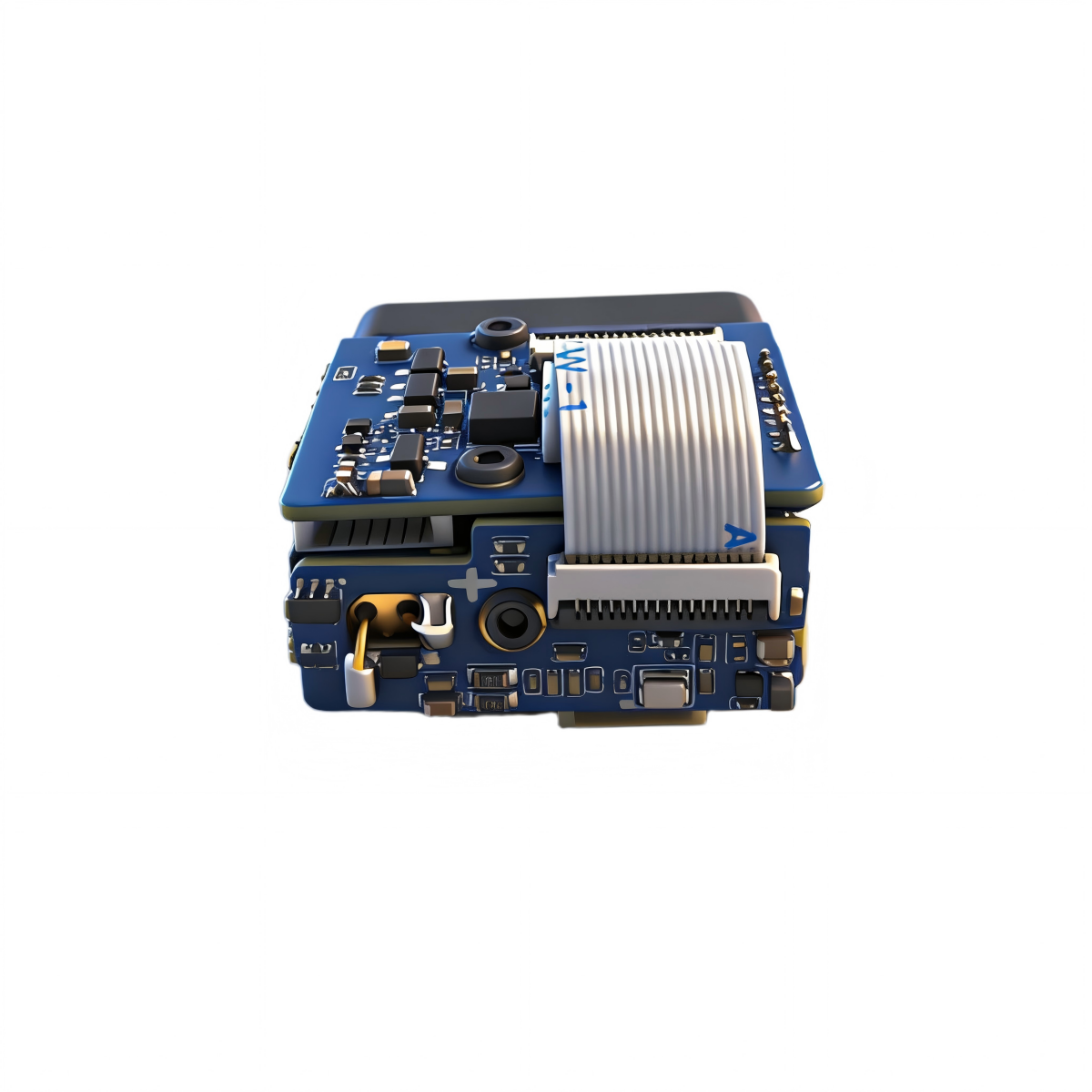

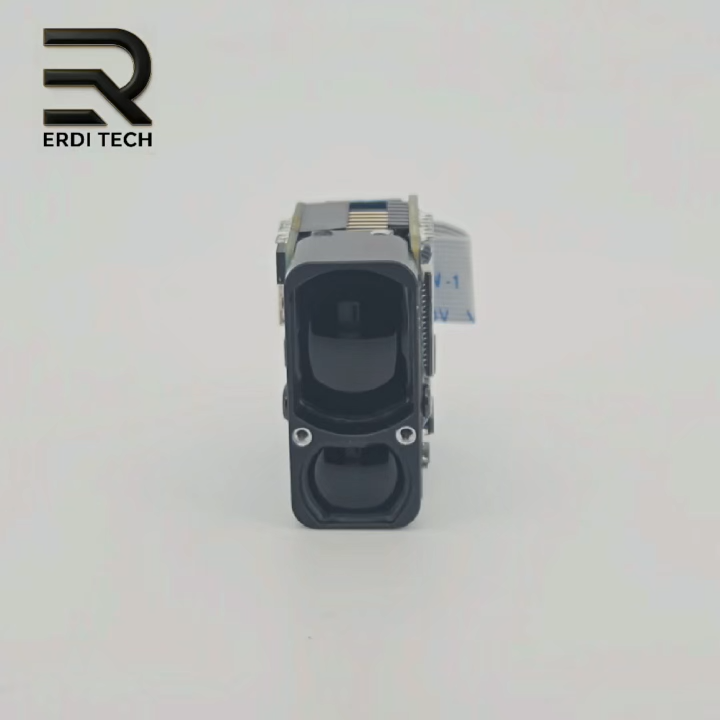

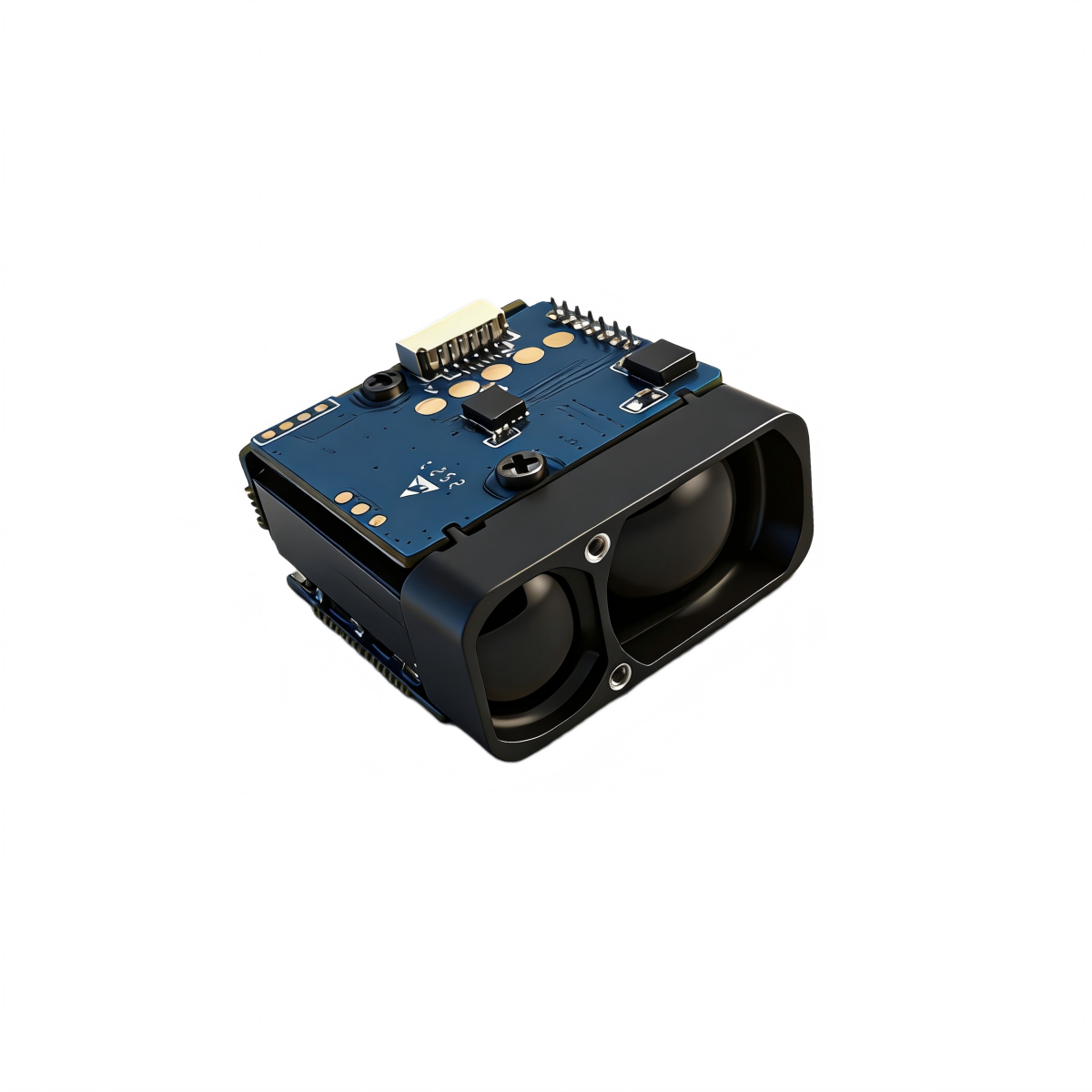

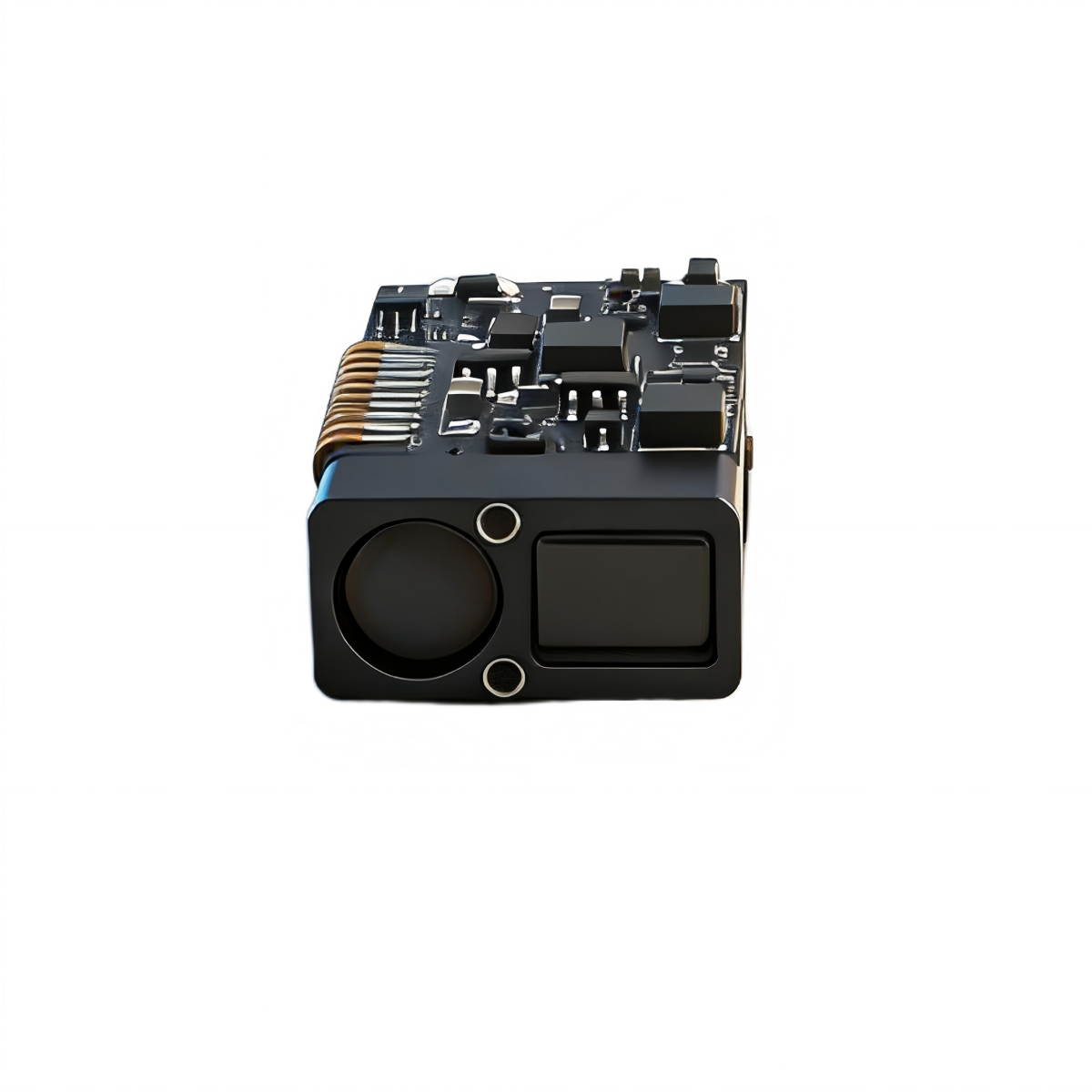

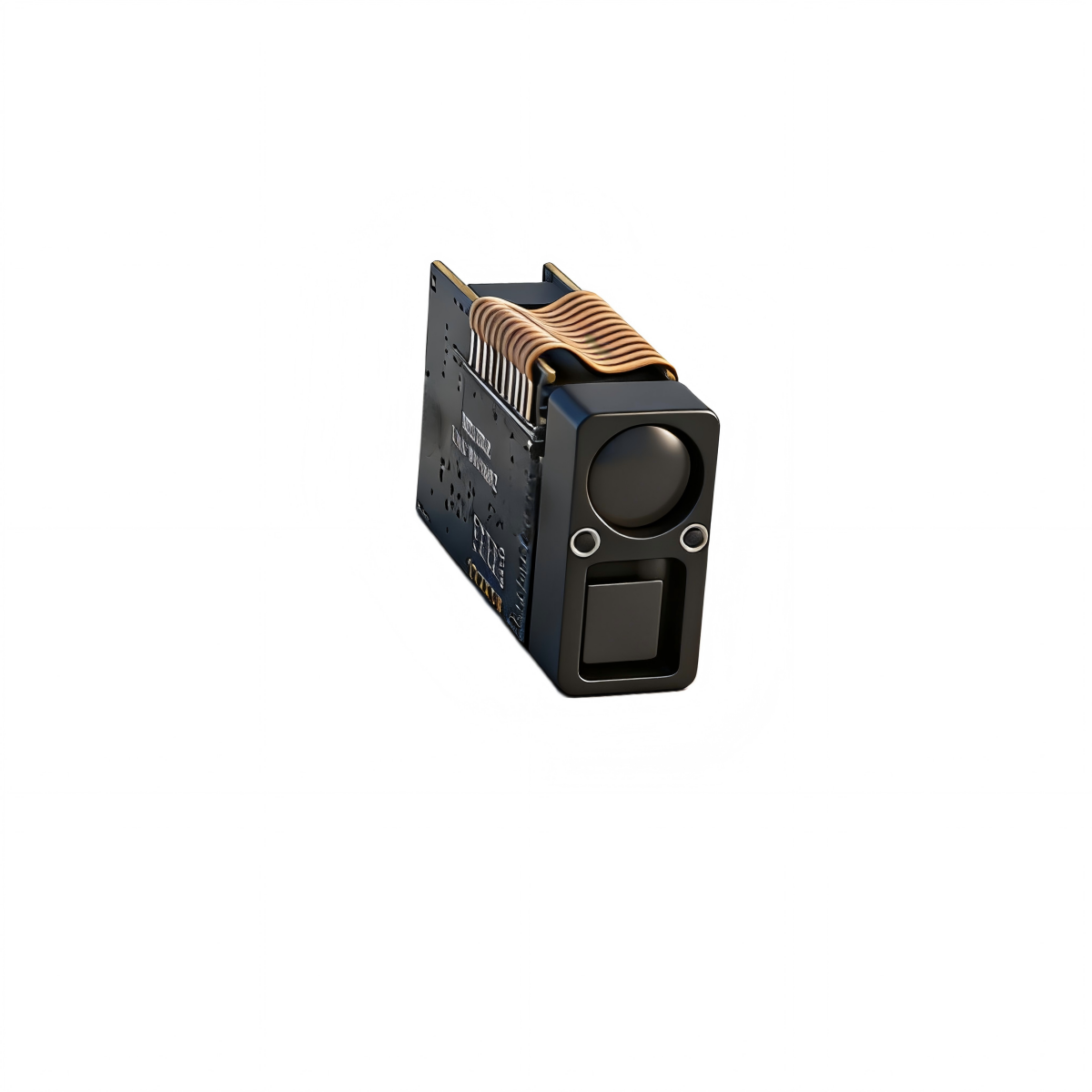

905nm Laser Rangefinder Module – 0.2–1200m Distance & Orientation Sensor
MOQ
After-Sales Support
Choose ERDI modules with confidence.
OEM/ODM Capabilities
Support Global Delivery
30-day TrialTake
PRODUCT DESCRIPTON

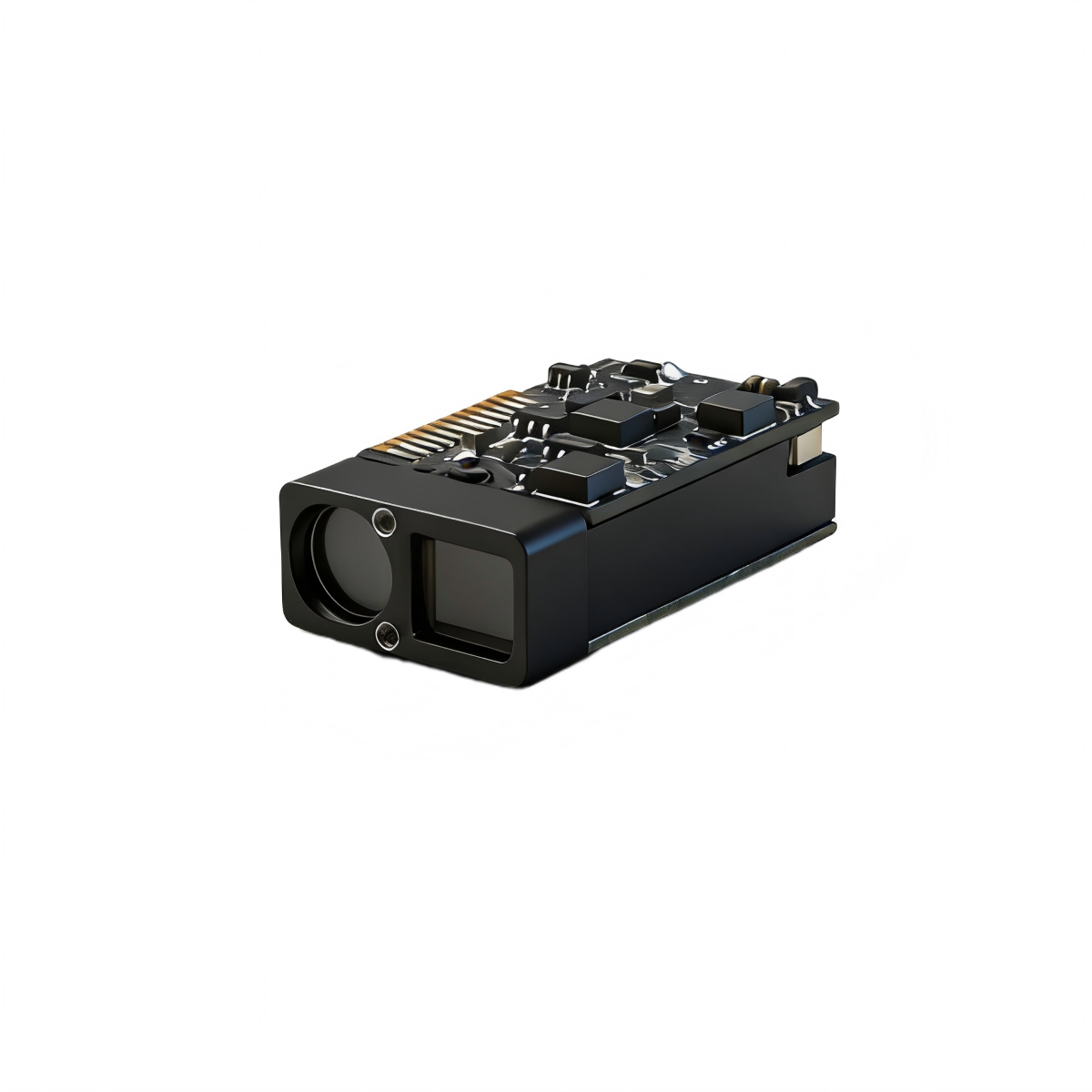

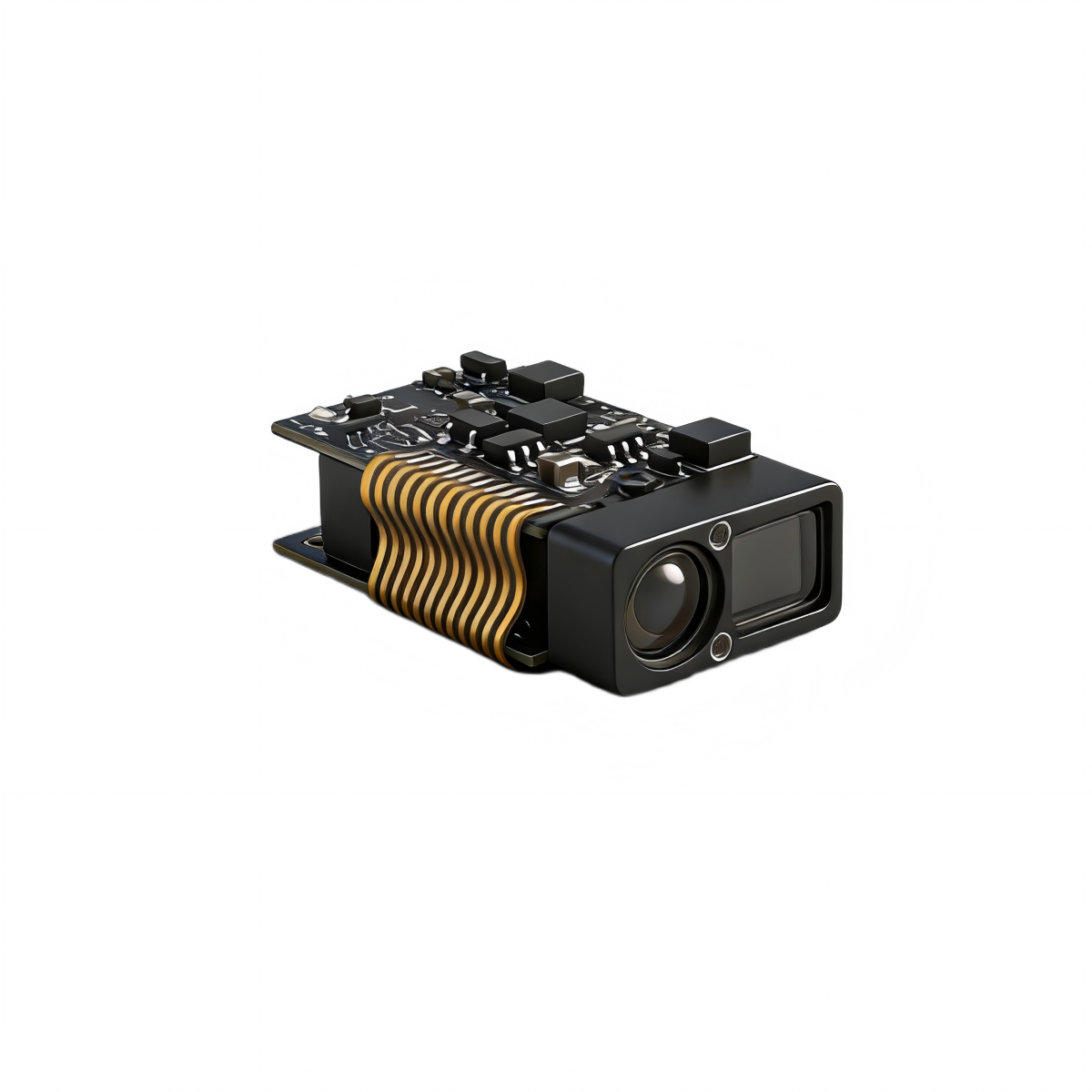

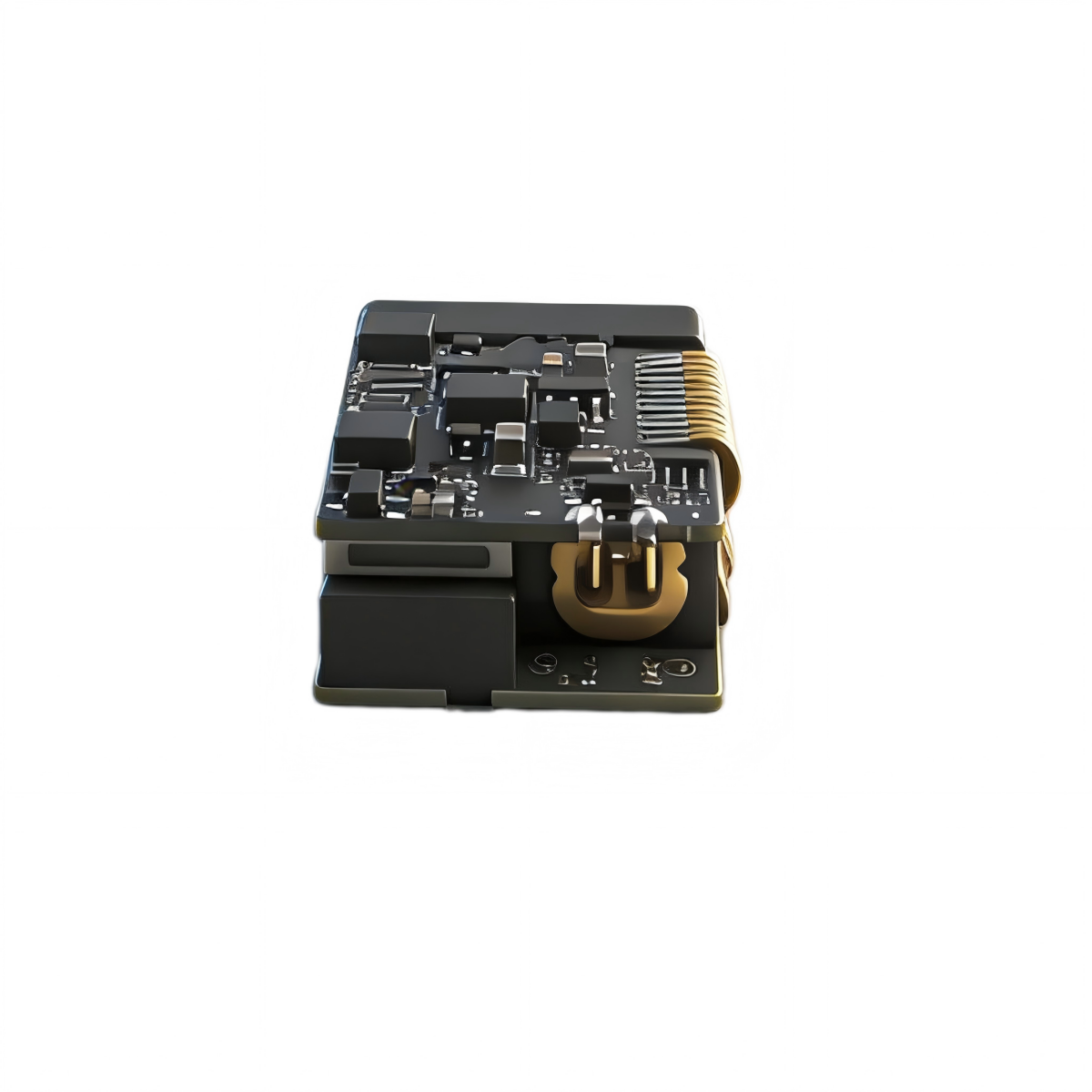

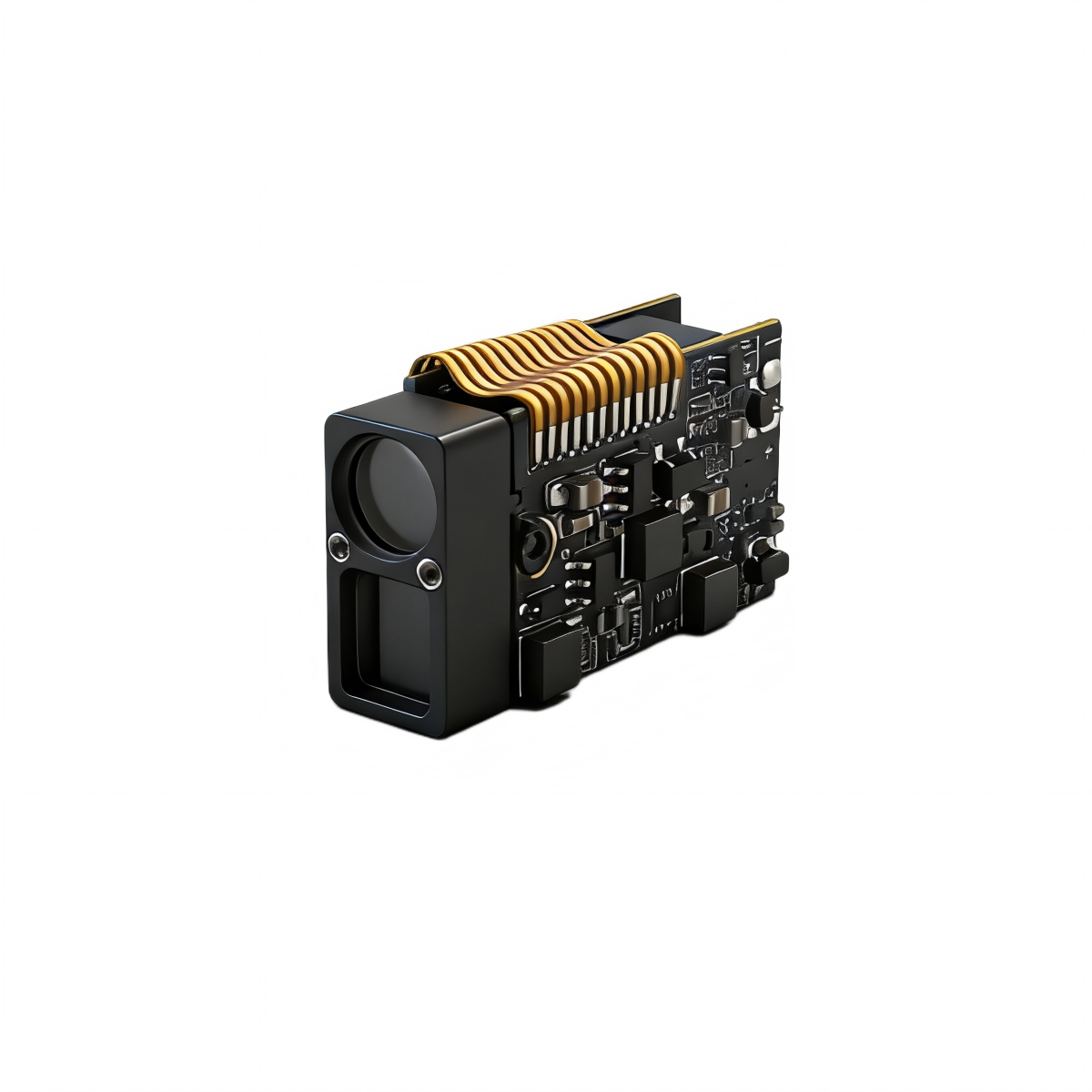

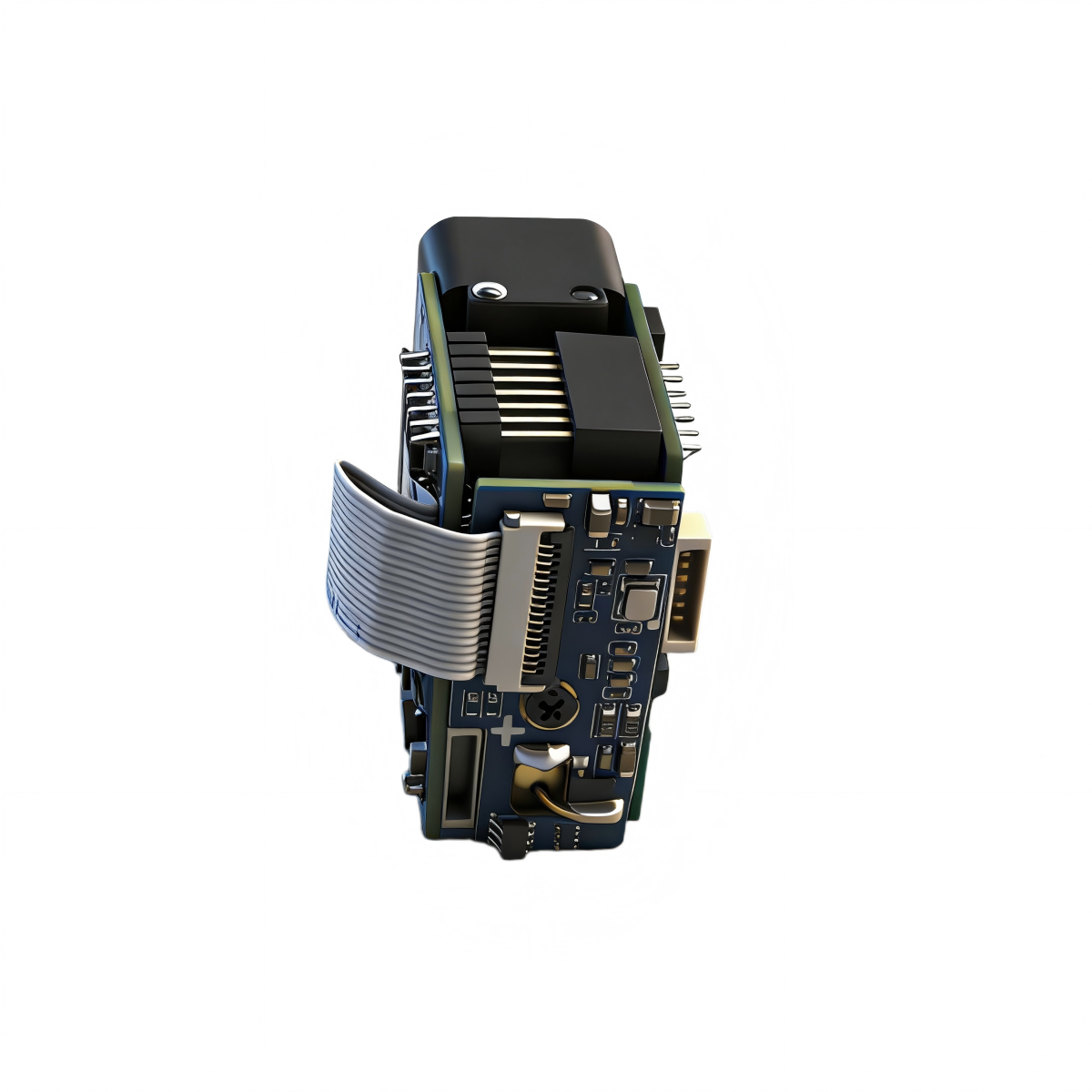

The ERDI LASER® SPD1200S2G is an advanced 905nm laser rangefinder module with integrated gyroscope, designed for both distance measurement and spatial orientation sensing. It provides precise ranging from 0.2 m to 1200 m, with extended nighttime capability up to 1500 m, while simultaneously delivering attitude data (roll, pitch, yaw) for enhanced spatial awareness. By combining laser ranging with orientation sensing, the module enables accurate 3D positioning and dynamic measurement, making it ideal for UAV mapping, tracking, and advanced electro-optical systems.
Key Advantages
- Integrated Gyroscope System: Built-in orientation sensing enables real-time measurement of roll, pitch, and yaw angles.
- Spatial Measurement Capability: Supports distance calculation between spatial points, enabling 3D positioning applications.
- High-Sensitivity Detection: Large receiving aperture improves signal acquisition and measurement stability.
- High Accuracy Performance: ±0.3 m short-range accuracy with optimized long-distance compensation.
- Real-Time Measurement: 4–15 Hz adaptive frequency supports dynamic tracking and moving target measurement.
- System Integration Efficiency: Combines distance and orientation sensing in one compact module, reducing system complexity.
TECHNICAL PARAMETERS
|
No. |
Parameter |
Specification |
|
1 |
Laser Wavelength |
905nm±5nm |
|
2 |
Laser Divergence Angle |
＜6mrad |
|
3 |
Optical Material |
Aspherical Lens |
|
4 |
Receiving Aperture |
9.0mm × 14.5mm |
|
5 |
Ranging Range |
0.1m～1200m, Max 1400m |
|
6 |
Ranging Accuracy |
±0.2m (≤400m)±d×0.75% (400m≤d≤1200m) |
|
7 |
Ranging Frequency |
2Hz~20Hz, Adaptive |
|
8 |
Measurement Accuracy Rate |
≥98% |
|
9 |
False Alarm Rate |
≤1% |
|
10 |
Communication Interface |
UART-TTL, Customizable |
|
11 |
Baud Rate |
Default: 115200bps, Optional: 9600bps |
|
12 |
Supply Voltage |
3.3V~5V |
|
13 |
Startup Time |
≤200ms |
|
14 |
Instant Startup Current |
≈350mA |
|
15 |
Operating Power Consumption |
Average ≈0.65W |
|
16 |
Operating Temperature |
-20℃~+60℃ |
|
17 |
Storage Temperature |
-40℃~+60℃ |
|
18 |
Ingress Protection |
Lens Cavity IP67 |
|
19 |
Laser Safety Class |
IEC CLASS I |
|
20 |
Dimension |
24.6×11.4×26.3mm (Square) |
|
21 |
Weight |
≈10g |
|
22 |
Shock Resistance |
1000g/ms (10 times/s, along optical axis) |
|
23 |
Vibration Resistance |
5~50~5 Hz, 1 octave/min, 2.5g |
|
24 |
Reliability |
MTBF ≥1500h |
|
25 |
Gyroscope Technical Parameters |
|
|
25 |
Euler Angle Range |
Roll (X): ±180°Pitch (Y): ±90°Yaw (Z): ±180° |
|
26 |
Tilt Angle Accuracy (X, Y Axis) |
0.3° |
|
27 |
Heading Angle (Z Axis) |
≤0.75° (@ within 10s) |
|
28 |
Radial Error of Distance Between Two Spatial Points |
±1m (≤500m)±1m+d×0.1% (500m＜d＜1200m) |
|
29 |
Static Distance Error Between Two Spatial Points |
≤±1m @ ＜100m≤±3m @ 100~500m≤±5m @ 500~1000m |
|
30 |
Dynamic Distance Error Between Two Spatial Points |
≤±1m @ ＜50m≤±3m @ 50~100m≤±6m @ 100~500m≤±10m @ 500~1000m |
Notes
- Refer to the figure below for X/Y/Z axis definition; the Y axis is aligned with the lens direction.
- The accuracy is measured within 10 seconds in dynamic state; integral cumulative error exists under dynamic working condition.
INTERFACE
|
Pin |
Definition |
Description |
|
1 |
GND |
Power − |
|
2 |
VCC |
Power + |
|
3 |
I/O (Reserved) |
Reserved for expansion |
|
4 |
TXD |
Signal output port, Ranging Module → Host |
|
5 |
RXD |
Signal input port, Host → Ranging Module |
|
6 |
SW-SHOT |
Function Enable (active high) Note: Compatible with active-low control requirements |
Information Download
-
PRODUCT DESCRIPTON
-
TECHNICAL PARAMETERS
-
INTERFACE
-
Information Download
The ERDI LASER® SPD1200S2G is an advanced 905nm laser rangefinder module with integrated gyroscope, designed for both distance measurement and spatial orientation sensing. It provides precise ranging from 0.2 m to 1200 m, with extended nighttime capability up to 1500 m, while simultaneously delivering attitude data (roll, pitch, yaw) for enhanced spatial awareness. By combining laser ranging with orientation sensing, the module enables accurate 3D positioning and dynamic measurement, making it ideal for UAV mapping, tracking, and advanced electro-optical systems.
Key Advantages
- Integrated Gyroscope System: Built-in orientation sensing enables real-time measurement of roll, pitch, and yaw angles.
- Spatial Measurement Capability: Supports distance calculation between spatial points, enabling 3D positioning applications.
- High-Sensitivity Detection: Large receiving aperture improves signal acquisition and measurement stability.
- High Accuracy Performance: ±0.3 m short-range accuracy with optimized long-distance compensation.
- Real-Time Measurement: 4–15 Hz adaptive frequency supports dynamic tracking and moving target measurement.
- System Integration Efficiency: Combines distance and orientation sensing in one compact module, reducing system complexity.
|
No. |
Parameter |
Specification |
|
1 |
Laser Wavelength |
905nm±5nm |
|
2 |
Laser Divergence Angle |
＜6mrad |
|
3 |
Optical Material |
Aspherical Lens |
|
4 |
Receiving Aperture |
9.0mm × 14.5mm |
|
5 |
Ranging Range |
0.1m～1200m, Max 1400m |
|
6 |
Ranging Accuracy |
±0.2m (≤400m)±d×0.75% (400m≤d≤1200m) |
|
7 |
Ranging Frequency |
2Hz~20Hz, Adaptive |
|
8 |
Measurement Accuracy Rate |
≥98% |
|
9 |
False Alarm Rate |
≤1% |
|
10 |
Communication Interface |
UART-TTL, Customizable |
|
11 |
Baud Rate |
Default: 115200bps, Optional: 9600bps |
|
12 |
Supply Voltage |
3.3V~5V |
|
13 |
Startup Time |
≤200ms |
|
14 |
Instant Startup Current |
≈350mA |
|
15 |
Operating Power Consumption |
Average ≈0.65W |
|
16 |
Operating Temperature |
-20℃~+60℃ |
|
17 |
Storage Temperature |
-40℃~+60℃ |
|
18 |
Ingress Protection |
Lens Cavity IP67 |
|
19 |
Laser Safety Class |
IEC CLASS I |
|
20 |
Dimension |
24.6×11.4×26.3mm (Square) |
|
21 |
Weight |
≈10g |
|
22 |
Shock Resistance |
1000g/ms (10 times/s, along optical axis) |
|
23 |
Vibration Resistance |
5~50~5 Hz, 1 octave/min, 2.5g |
|
24 |
Reliability |
MTBF ≥1500h |
|
25 |
Gyroscope Technical Parameters |
|
|
25 |
Euler Angle Range |
Roll (X): ±180°Pitch (Y): ±90°Yaw (Z): ±180° |
|
26 |
Tilt Angle Accuracy (X, Y Axis) |
0.3° |
|
27 |
Heading Angle (Z Axis) |
≤0.75° (@ within 10s) |
|
28 |
Radial Error of Distance Between Two Spatial Points |
±1m (≤500m)±1m+d×0.1% (500m＜d＜1200m) |
|
29 |
Static Distance Error Between Two Spatial Points |
≤±1m @ ＜100m≤±3m @ 100~500m≤±5m @ 500~1000m |
|
30 |
Dynamic Distance Error Between Two Spatial Points |
≤±1m @ ＜50m≤±3m @ 50~100m≤±6m @ 100~500m≤±10m @ 500~1000m |
Notes
- Refer to the figure below for X/Y/Z axis definition; the Y axis is aligned with the lens direction.
- The accuracy is measured within 10 seconds in dynamic state; integral cumulative error exists under dynamic working condition.
|
Pin |
Definition |
Description |
|
1 |
GND |
Power − |
|
2 |
VCC |
Power + |
|
3 |
I/O (Reserved) |
Reserved for expansion |
|
4 |
TXD |
Signal output port, Ranging Module → Host |
|
5 |
RXD |
Signal input port, Host → Ranging Module |
|
6 |
SW-SHOT |
Function Enable (active high) Note: Compatible with active-low control requirements |
Learn More
- Laser wavelength: 905 nm ± 5 nm
- Measurement range: 0.1m～1200m
- Nighttime range: up to 1400 m
- Accuracy:
- ±0.2m (≤400m)
- ±d×0.75% (400m≤d≤1200m
- Measurement frequency: 2–20 Hz Adaptive
- Beam divergence: < 6 mrad
- Receiver aperture: 9.0 mm × 14.5 mm
- Interface: UART TTL (115200 bps)
- Supply voltage: 3.3 – 5 V
- Power consumption: ≈ 0.65 W
- Weight: ≤ 10 g
- Dimensions: 24.6 × 14.45 × 26.3 mm
- Laser safety: IEC Class 1
Orientation Measurement
- Roll (X): ±180°
- Pitch (Y): ±90°
- Yaw (Z): ±180°
Attitude Accuracy
- Tilt angle accuracy: 0.3°
- Heading accuracy: ≤0.75°
Spatial Positioning Capability
Radial Error
- ±1 m (≤500 m)
- ±(1 m + 0.1% × distance) (>500 m)
Distance Measurement Between Spatial Points
Static Measurement
- ≤±1 m @ <100 m
- ≤±3 m @ 100–500 m
- ≤±5 m @ 500–1000 m
Dynamic Measurement
- ≤±1 m @ <50 m
- ≤±3 m @ 50–100 m
- ≤±6 m @ 100–500 m
- ≤±10 m @ 500–1000 m
- Integrated Laser + Gyroscope Architecture
- Supports Spatial Positioning & Orientation Sensing
- High-Precision 0.2 m Measurement Accuracy
- Adaptive 2–20 Hz High-Speed Ranging
- Compact 10 g Lightweight OEM Structure
- Suitable for Dynamic & Moving Platforms
The SPD1200S2G module is suitable for:
- UAV mapping and surveying systems
- Electro-optical tracking and targeting systems
- 3D positioning and spatial measurement systems
- Robotics navigation and perception systems
- Intelligent inspection and monitoring platforms
- Border and perimeter surveillance
- Smart infrastructure and measurement systems
- Dynamic object tracking applications
| Model | Core Strength | Key Feature | Best Scenario |
|---|---|---|---|
| SPD1200H2 | High Accuracy | Stable precision measurement | Precision sensing and industrial measurement |
| SPD1200Z2 | High Refresh Rate | Fast adaptive ranging | Dynamic target tracking and UAV navigation |
| SPD1200N0 | Sealed Compact Structure | Cylindrical integrated design | Industrial embedded systems |
| SPD1200N2 | Ultra-Compact Sealed Design | Miniaturized lightweight structure | Space-constrained portable devices |
| SPD1200S2 | Balanced High Performance | Stable ranging with low power consumption | General OEM and embedded integration |
| SPD1200S2G | Laser + Gyroscope Integration | Integrated ranging and attitude sensing | Spatial positioning and intelligent observation systems |
