905nm Laser Rangefinder Module with Visible Red Dot Indication 3~1200m
MOQ
After-Sales Support
Choose ERDI modules with confidence.
OEM/ODM Capabilities
Support Global Delivery
30-day TrialTake
-5_1445x.png?w=2048&h=2048&q=80)
-0_1445x.png?w=2048&h=2048&q=80)
-15_1445x.png?w=2048&h=2048&q=80)
-1_1445x.png?w=2048&h=2048&q=80)
-0_1445x.png?w=2048&h=2048&q=80)
-5_1800x.png?w=2048&h=2048&q=80)
-0_1800x.png?w=2048&h=2048&q=80)
-15_1800x.png?w=2048&h=2048&q=80)
-1_1800x.png?w=2048&h=2048&q=80)
-0_1800x.png?w=2048&h=2048&q=80)
PRODUCT DESCRIPTON

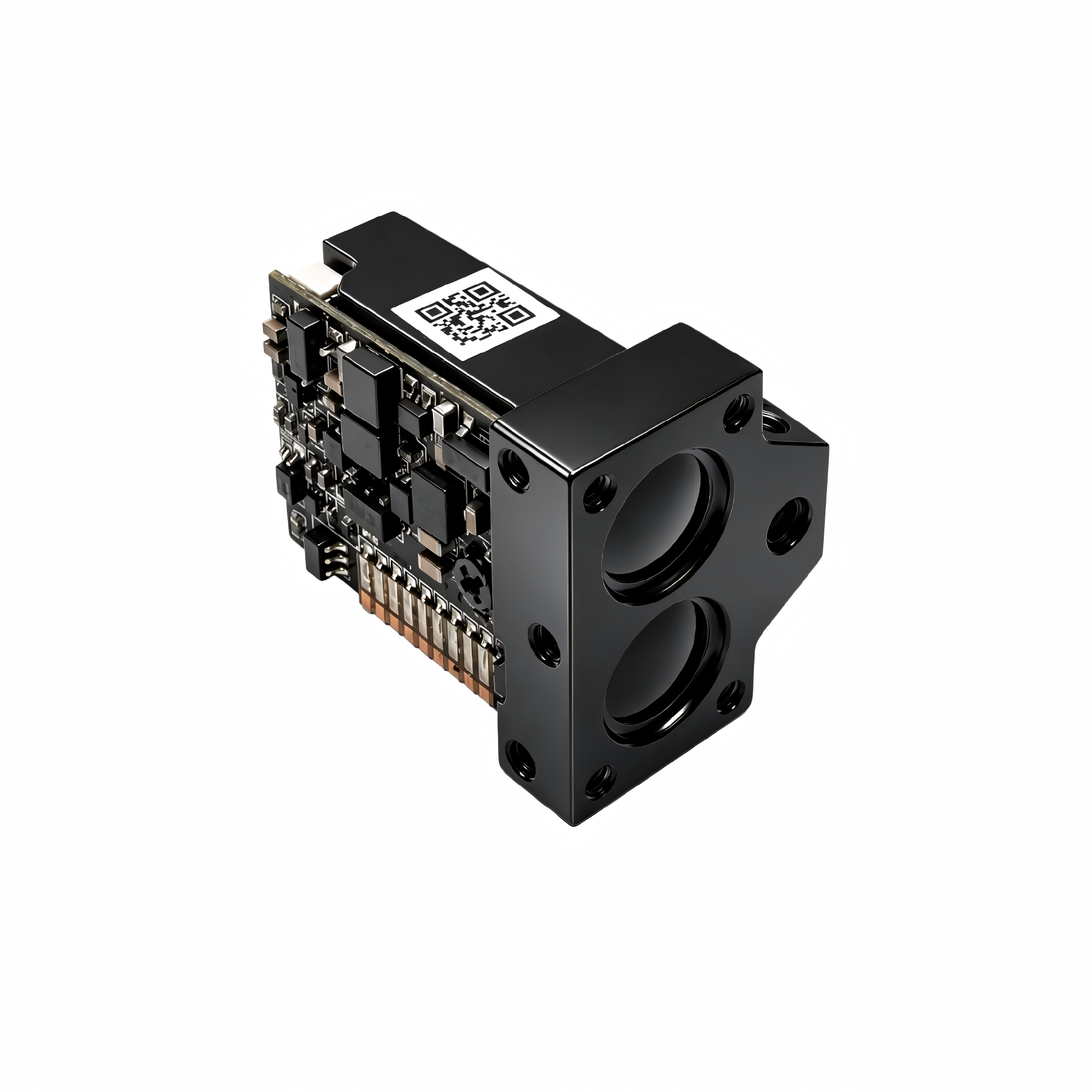

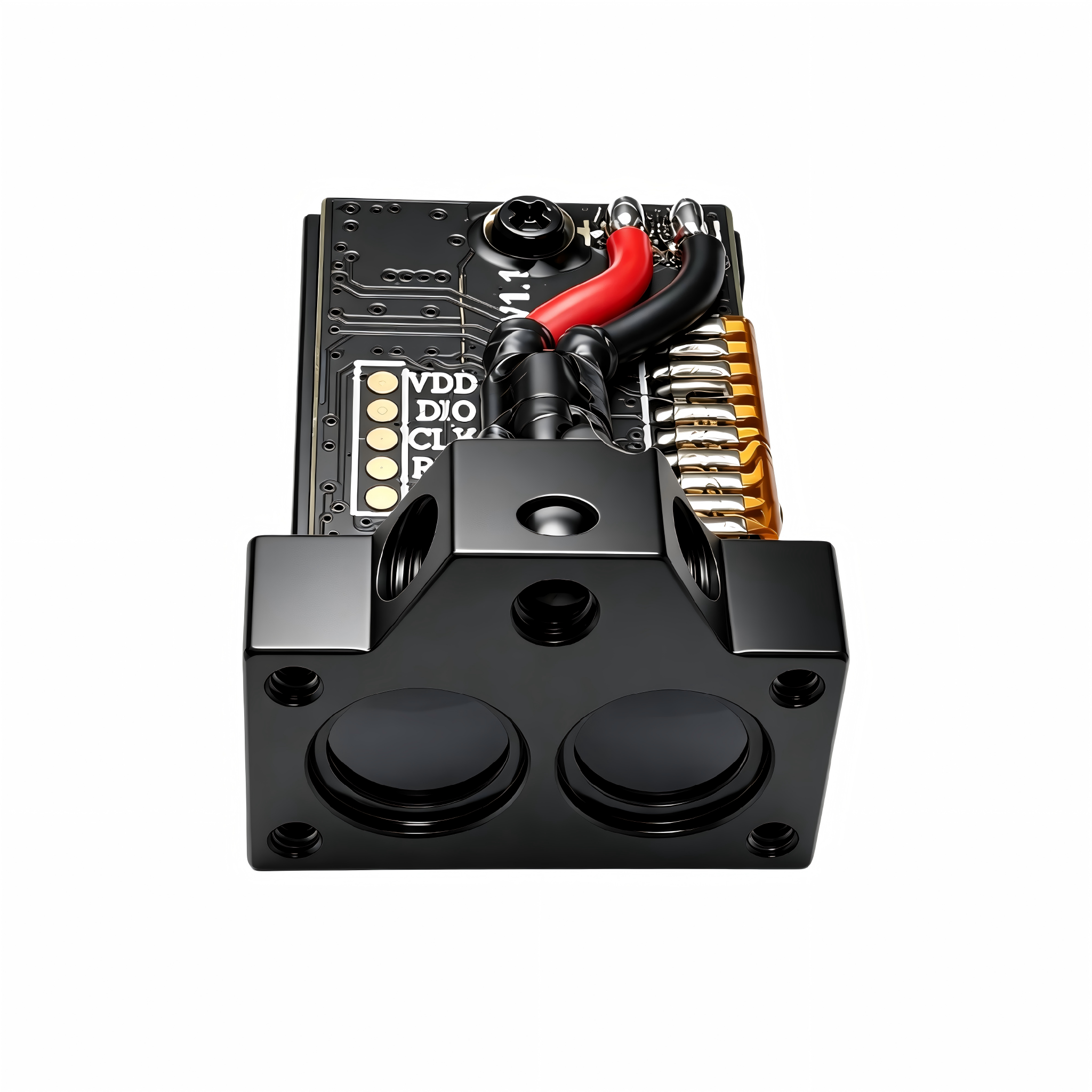

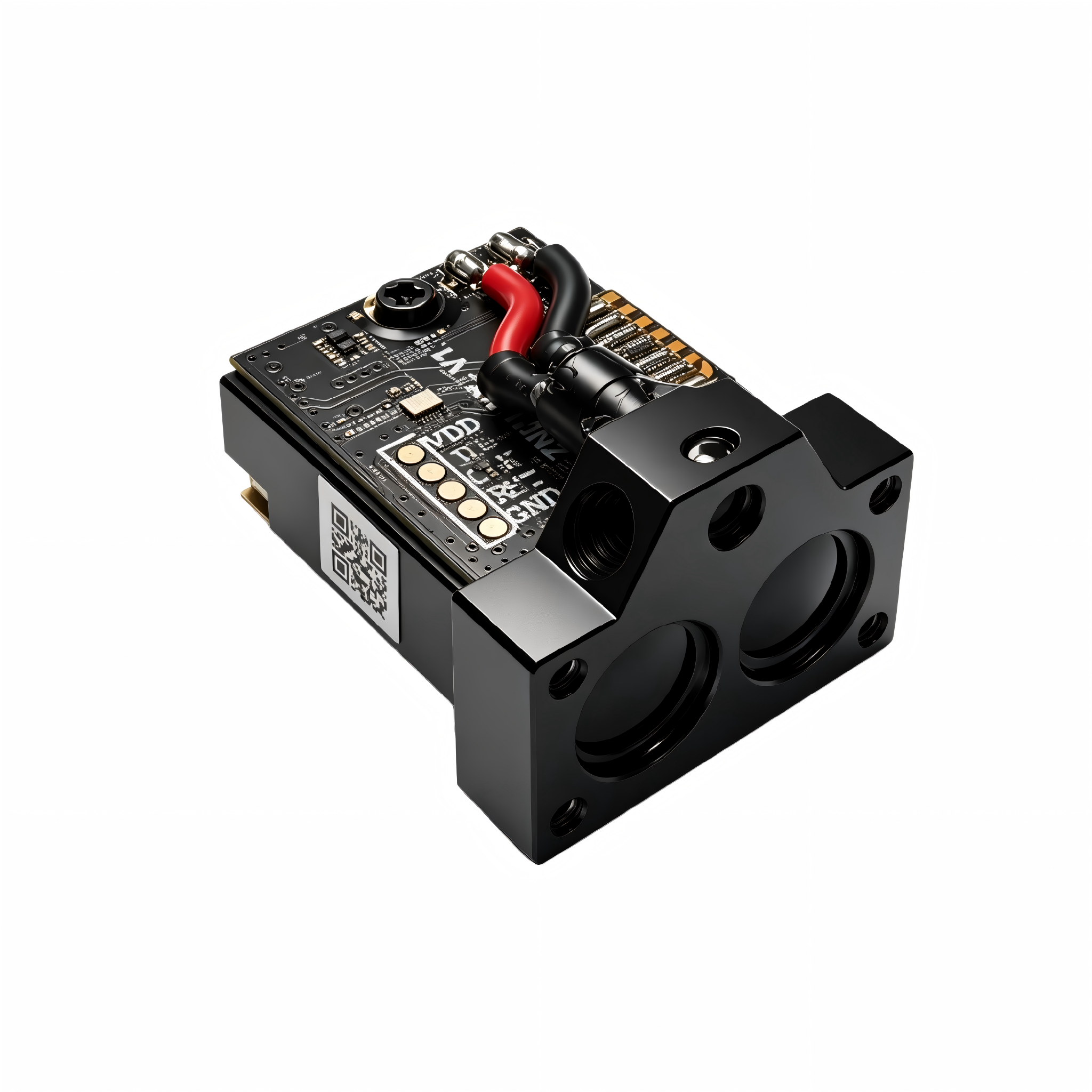

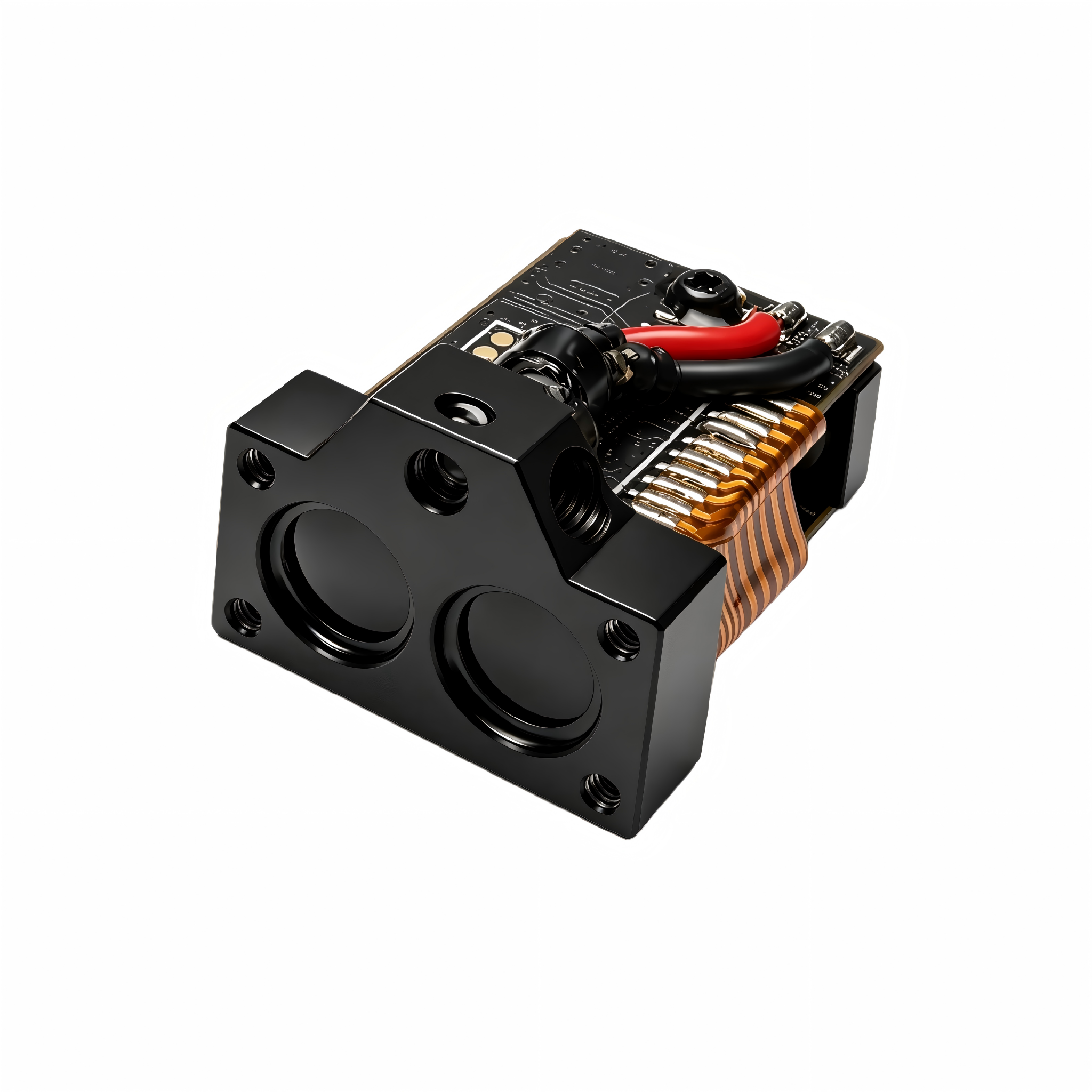

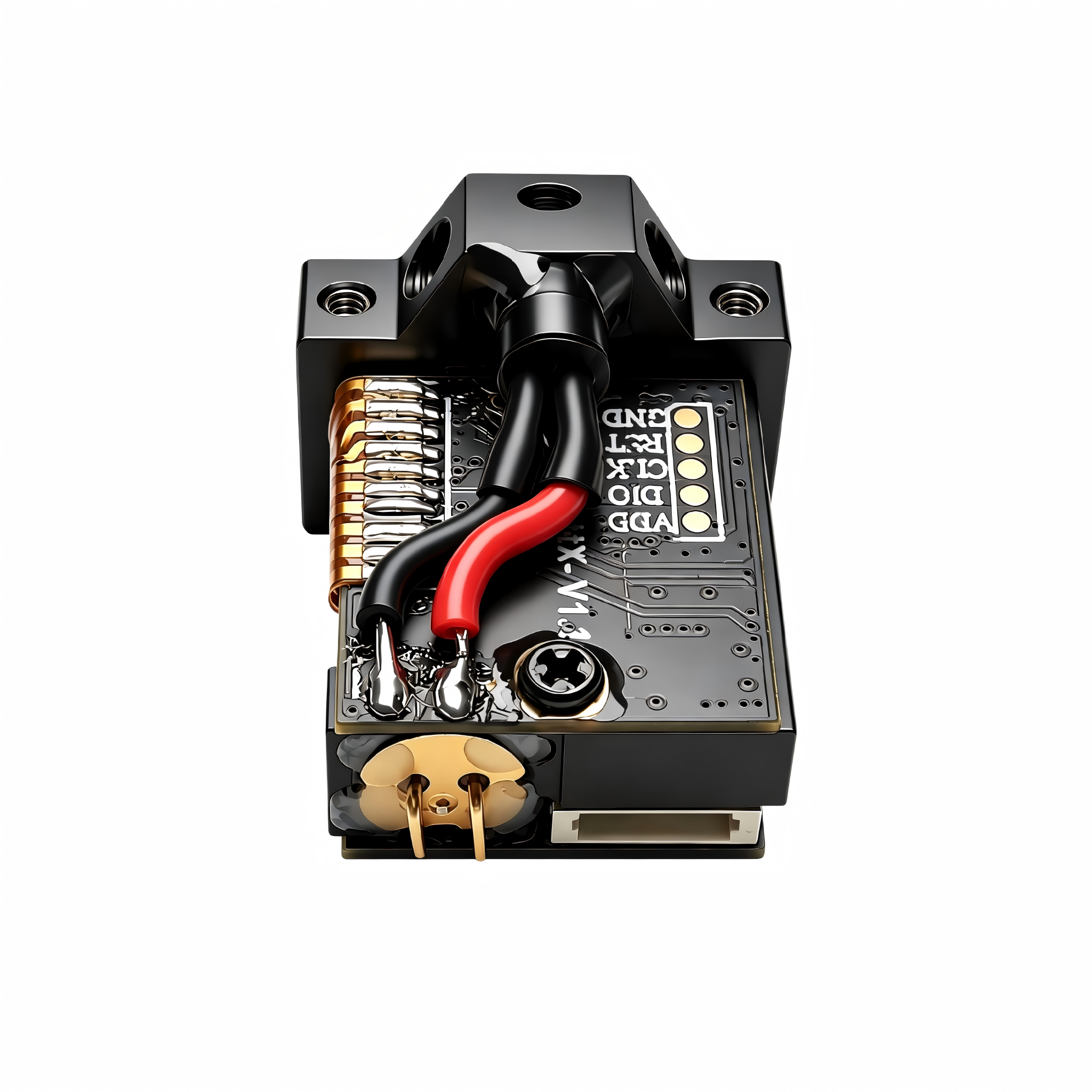

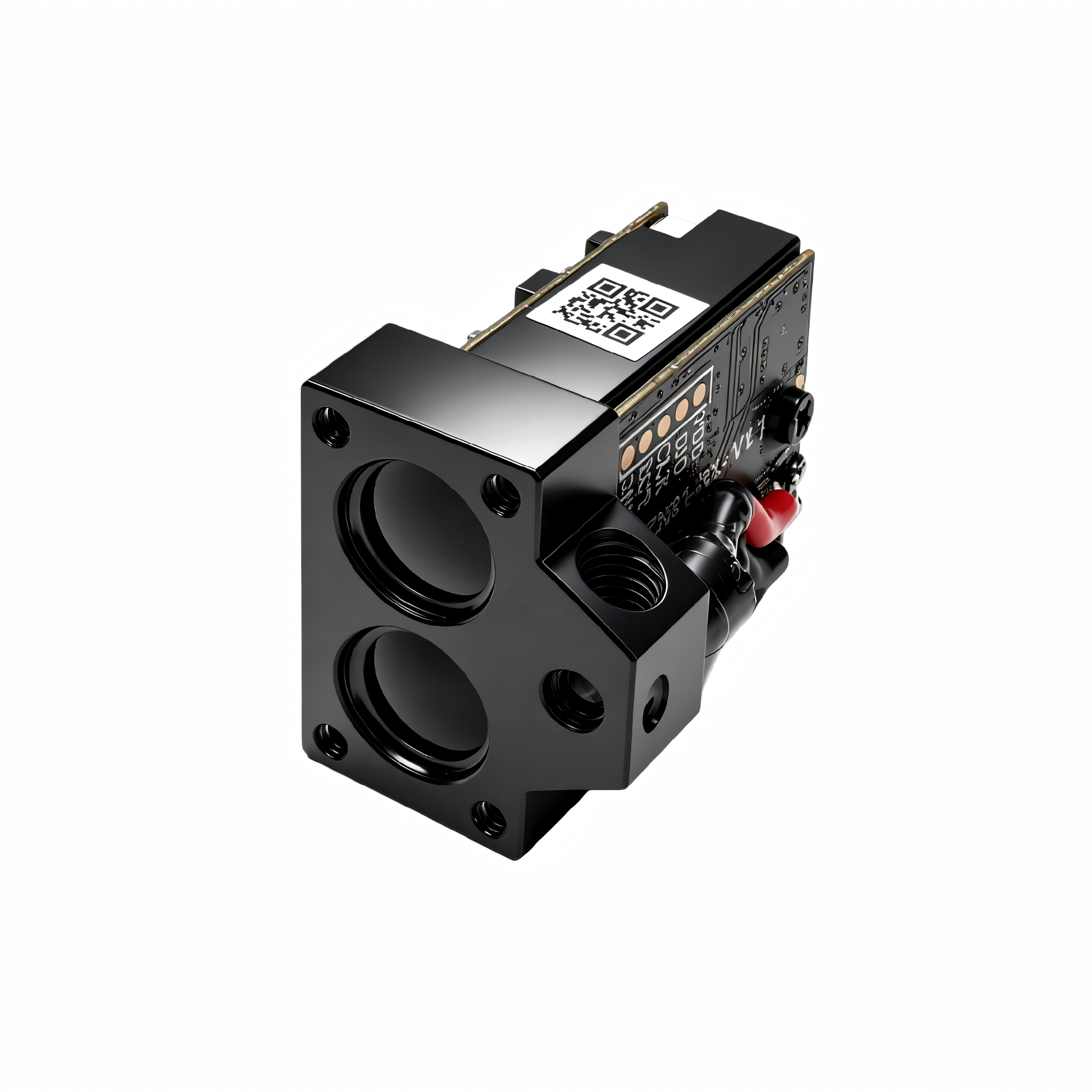

The ERDI LASER® SPD1200N3 is a 905nm laser rangefinder module with visible aiming laser, designed for applications that require precise target acquisition. It integrates a red dot pointer into a rugged aluminum housing, enabling clear visual aiming in outdoor environments. The module measures distances from 3 m to 1200 m and supports a standard UART-TTL interface, making it an ideal OEM rangefinder module for target indication and field measurement systems.
TECHNICAL PARAMETERS
|
Parameter |
Specification |
|
Laser wavelength |
905 ±5 nm |
|
Beam divergence |
<6 mrad |
|
Optical element type |
Aspheric lens |
|
Receive /transmit aperture |
Ø6.5 mm |
|
Measurement range |
3–1000 m Building target ;visibility ≥10 km;humidity ≤60% |
|
Ranging accuracy |
±0.5 m (d ≤100 m) |
|
Measurement update rate |
2.5–15 Hz |
|
Measurement success rate |
≥98% |
|
False alarm rate |
≤1% |
|
Communication interface |
UART ,3.3 V TTL;customizable |
|
Baud rate |
115200 bps default |
|
Supply voltage |
DC 3.3–5 V |
|
Startup time |
≤200 ms |
|
Instantaneous startup current |
≈200 mA |
|
Standby power consumption |
≤0.3 W |
|
Average power consumption |
≤0.5 W |
|
Operating temperature |
−20 to +60 °C |
|
Storage temperature |
−30 to +70 °C |
|
Ingress protection |
Lens cavity:IP67 |
|
Laser safety class |
IEC Class 1 |
|
Dimensions /material |
14.0 ×18.0 ×22.3 mm;rectangular 6061 aluminum alloy |
|
Weight |
≤6 g |
d is the measured distance in meters.See the mechanical drawing for dimensions and tolerances.The IP67 rating applies to the lens cavity only.
INTERFACE
|
Pin |
Signal |
Description |
|
1 |
GND |
Power supply ground |
|
2 |
VCC |
Positive supply input |
|
3 |
IO (reserved) |
Reserved for expansion |
|
4 |
TXD |
Signal output:module →host |
|
5 |
RXD |
Signal input:host →module |
|
6 |
SW-SHOT |
Function enable ,active-high (>1.2 V). Lower-level requirements can be accommodated ;confirm the supplied configuration before use. |
Information Download
-
PRODUCT DESCRIPTON
-
TECHNICAL PARAMETERS
-
INTERFACE
-
Information Download
The ERDI LASER® SPD1200N3 is a 905nm laser rangefinder module with visible aiming laser, designed for applications that require precise target acquisition. It integrates a red dot pointer into a rugged aluminum housing, enabling clear visual aiming in outdoor environments. The module measures distances from 3 m to 1200 m and supports a standard UART-TTL interface, making it an ideal OEM rangefinder module for target indication and field measurement systems.
|
Parameter |
Specification |
|
Laser wavelength |
905 ±5 nm |
|
Beam divergence |
<6 mrad |
|
Optical element type |
Aspheric lens |
|
Receive /transmit aperture |
Ø6.5 mm |
|
Measurement range |
3–1000 m Building target ;visibility ≥10 km;humidity ≤60% |
|
Ranging accuracy |
±0.5 m (d ≤100 m) |
|
Measurement update rate |
2.5–15 Hz |
|
Measurement success rate |
≥98% |
|
False alarm rate |
≤1% |
|
Communication interface |
UART ,3.3 V TTL;customizable |
|
Baud rate |
115200 bps default |
|
Supply voltage |
DC 3.3–5 V |
|
Startup time |
≤200 ms |
|
Instantaneous startup current |
≈200 mA |
|
Standby power consumption |
≤0.3 W |
|
Average power consumption |
≤0.5 W |
|
Operating temperature |
−20 to +60 °C |
|
Storage temperature |
−30 to +70 °C |
|
Ingress protection |
Lens cavity:IP67 |
|
Laser safety class |
IEC Class 1 |
|
Dimensions /material |
14.0 ×18.0 ×22.3 mm;rectangular 6061 aluminum alloy |
|
Weight |
≤6 g |
d is the measured distance in meters.See the mechanical drawing for dimensions and tolerances.The IP67 rating applies to the lens cavity only.
|
Pin |
Signal |
Description |
|
1 |
GND |
Power supply ground |
|
2 |
VCC |
Positive supply input |
|
3 |
IO (reserved) |
Reserved for expansion |
|
4 |
TXD |
Signal output:module →host |
|
5 |
RXD |
Signal input:host →module |
|
6 |
SW-SHOT |
Function enable ,active-high (>1.2 V). Lower-level requirements can be accommodated ;confirm the supplied configuration before use. |
Learn More
-
Visible Red Dot Indication：Built-in aiming laser allows users to see exactly where the beam is pointing, greatly improving targeting speed and accuracy.
-
Rugged Aluminum Housing：6061 aluminum alloy casing delivers excellent impact resistance and heat dissipation for harsh outdoor use.
-
Wide Measurement Range：Covers 0.2 m to 1200 m, suitable for both close-range and long-distance targeting.
-
Seamless OEM Integration：Supports UART-TTL communication and a compact footprint (14.0 × 18.0 × 22.3 mm) for easy embedding into handheld or fixed systems.
-
Outdoor surveying and mapping
-
Security and surveillance with target indication
-
Forestry and agricultural measurement
-
Power line inspection
-
OEM handheld devices requiring visible aiming laser
Compared with the SPD1200N2 (rectangular, no pointer):
| SPD1200N3 | SPD1200N2 |
|---|---|
| Visible Red Dot | None |
| 6061 Aluminum Alloy | Compact / Transparent |
| OEM rangefinder module target indication, outdoor field use | Flat-profile OEM integration |
Q: What is the advantage of the visible red dot?
A: It acts as a visible aiming laser, allowing the user to confirm the exact target point before measuring, which is especially useful for long-distance or outdoor use.
Q: Is this a 1000m laser rangefinder module with UART?
A: Yes, it supports UART-TTL communication and covers a range up to 1200 m, comfortably meeting 1000 m class requirements.
Q: Can it be integrated into handheld devices?
A: Yes, its compact size, lightweight aluminum housing, and UART interface make it suitable for handheld and portable OEM designs.
Q: Is the laser eye-safe?
A: Yes, it complies with IEC Class 1 safety standards.
