High-Frequency 905nm Laser Rangefinder Modules

905nm High-Frequency Laser Rangefinder Modules

The ERDI High-Frequency Series represents a new generation of industrial laser rangefinders designed specifically for high-speed dynamic measurement applications. Unlike traditional modules that only update a few times per second, our high-frequency modules can deliver up to 10,000 distance measurements per second, making them ideal for capturing fast-moving objects and micro-changes in industrial environments.

✅ 50Hz to 10kHz Frequency ✅ 0.05m Minimum Ranging ✅ ±5cm Centimeter-Level Accuracy ✅ 100KLux Ambient Light Immunity

VB Series: Ultra-Lightweight Low-Power Modules

Weight range: 1g – 1.5g
Frequency range: 50Hz – 200Hz
Voltage: 3V – 5.5V
Ideal for: Battery-powered devices, miniature robotics, consumer electronics

H Series: Industrial-Grade High-Frequency Modules

Weight range: 15g – 20g
Frequency range: 50Hz – 10kHz
Voltage: 9V – 36V industrial wide voltage
Ideal for: Factory automation, high-speed machinery, dynamic control systems

High Frequency Series（10m~50m）

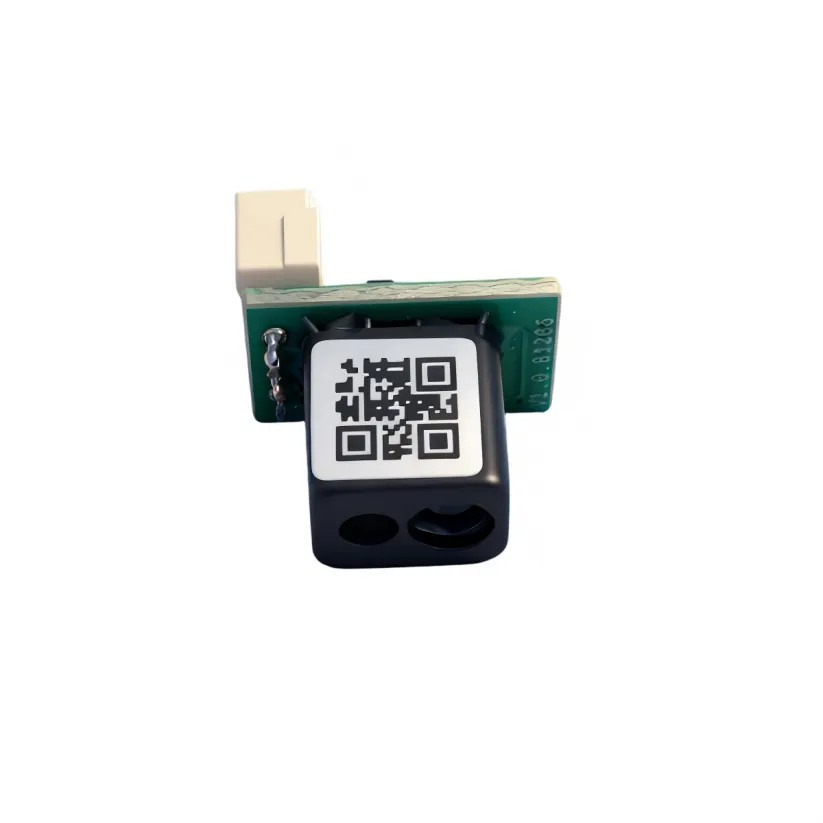

	LRF10VB Check Now	LRF22VB Check Now	LRF50VB Check Now	LRF50H Check Now
Measuring Range	0.05m~9m (90%reflectivity) 0.05m~5m (10%reflectivity)	0.05m～20m (90%reflectivity) 0.05m～10m (10%reflectivity)	0.05m～50m (90%reflectivity) 0.05m～20m (10%reflectivity)	0.05m～50m (90%reflectivity) 0.05m～15m (10%reflectivity)
Frequency	50Hz	200Hz (Alternative100/50/20/10/1Hz）	100Hz	20Hz～10KHz (Default: 1KHz)
Accuracy	±5cm (<5m) 1% (≥5m)	±5cm (<5m ) 1% (≥5m)	±5cm (<5m ) 1% (≥5m)	±5cm(＜10m) , 1%(≥10m)(2σ)
Ambient Light Immunity	2m@ 70KLux2	8m@60KLux	10m@60KLux	45m@100KLux2
Supply Voltage	4.5~5.5VDC	3 ~ 3.6VDC	3.3~5VDC	9~36VDC
Communication Interface	UART	UART/IIC	UART/IIC	UART
Dimension	12 x 7.5 x 9.1mm	21x 15 x 7.43 mm	18.7 x 11.8 x 13.3mm	38 x 20 x 30 mm
Weight	1g	1.5g	1.3g	15±2g
Operating Temperature	-20℃~ +60℃	-20℃ ~ +60℃	-20℃ ~ +60℃	-20℃~+60℃ （No condensation，indicator red light automatically turns off when under -20℃）

High Frequency Series（50m~1500m）

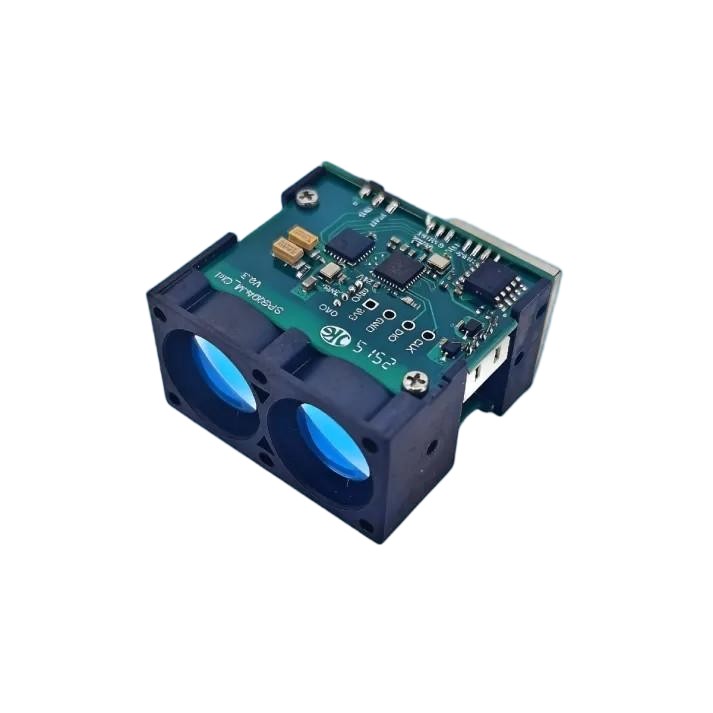

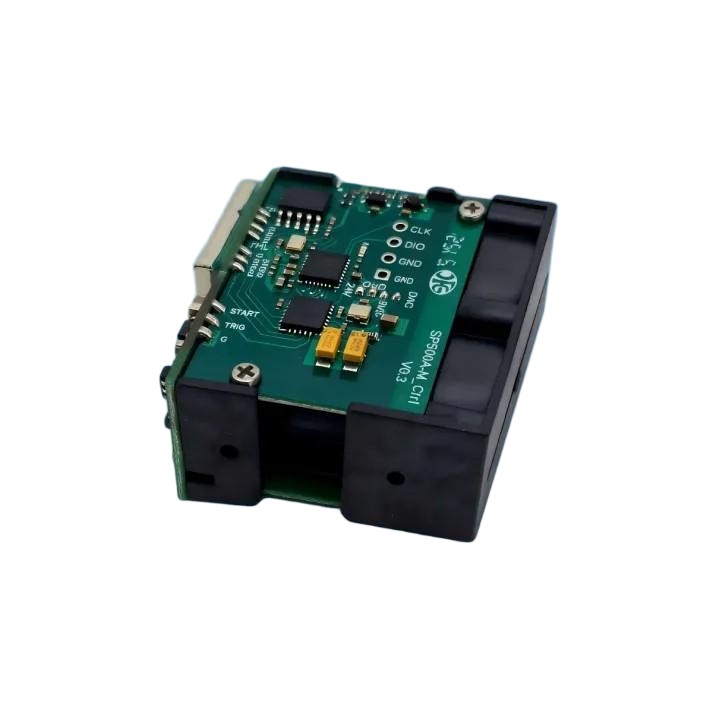

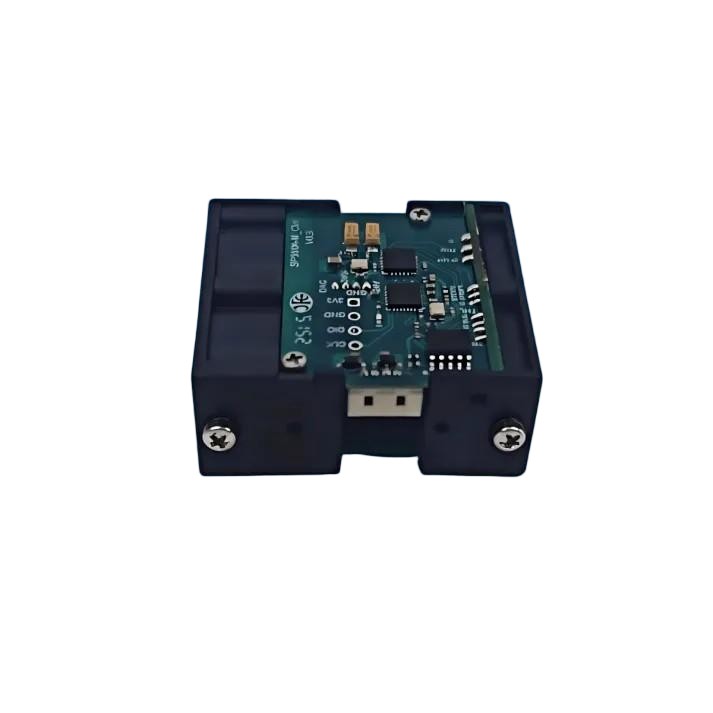

	LRF100H Check Now	LRF200H Check Now	LRF300H Check Now	LRF600H Check Now	LRF1500H Check Now
Measuring Range	0.05m～100m (90%reflectivity) 0.05m～30m (10%reflectivity)	0.05m～200m (90%reflectivity) 0.05m～70m (10%reflectivity)	0.05m～300m (90%reflectivity) 0.05m～100m (10%reflectivity)	0.05m～600m (90%reflectivity) 0.05m～200m (10%reflectivity)	0.05m～1500m (90%reflectivity) 0.05m～300m (10%reflectivity)
Frequency	20Hz～10KHz (Default: 1KHz)	20Hz～10KHz (Default: 1KHz)	1KHz or 50Hz (Switch automatically to match the intensity of reflected signals)	1KHz or 50Hz (Switch automatically to match the intensity of reflected signals)	1KHz or 50Hz (Switch automatically to match the intensity of reflected signals)
Accuracy	±10cm (<10m), 1% (≥10m)	±10cm (<10m), 1% (≥10m)	±10cm (<10m), 1% (≥10m)	±10cm (<10m), 1% (≥10m)	±10cm (<10m), 1% (≥10m)
Ambient Light Immunity	100KLux	100KLux	100KLux	100KLux	100KLux
Supply Voltage	9 ~ 36VDC	9 ~ 36VDC	9 ~ 36VDC	9 ~ 36VDC	9 ~ 36VDC
Communication Interface	UART/IIC	UART/IIC	UART/IIC	UART/IIC	UART/IIC
Dimension	33 x 34 x 18 mm	33 x 34 x 18 mm	33 x 34 x 18 mm	33 x 34 x 18 mm	33 x 34 x 18 mm
Weight	20±2g	20±2g	20±2g	20±2g	20±2g
Operating Temperature	-20℃ ~ +60℃	-20℃ ~ +60℃	-20℃ ~ +60℃	-20℃ ~ +60℃	-20℃ ~ +60℃

Typical Applications

The High-Frequency Series is designed for applications where real-time performance and dynamic measurement accuracy are critical. Its unique combination of ultra-high frequency, zero blind spot measurement, and industrial reliability makes it the ideal choice for the following industries:

VB Series Applications (Ultra-Lightweight Low-Power)

Consumer Electronics: Smart home devices, gesture recognition systems, wearable technology
Small Robotics: Robot vacuum cleaners, service robots, toy drones
Portable Devices: Handheld measuring tools, mobile scanners, smart locks
IoT Sensors: Smart parking systems, occupancy detection, level monitoring

H Series Applications (Industrial-Grade Ultra-High Frequency)

High-Speed Industrial Automation: Conveyor belt sorting, product counting, dimension measurement
Precision Measurement: Vibration monitoring, machine tool spindle runout detection, dynamic displacement measurement
Robotics: Collaborative robots, industrial manipulators, AGV/AMR navigation
Intelligent Transportation: Vehicle speed measurement, traffic flow monitoring, parking guidance systems
Security & Surveillance: High-speed PTZ camera tracking, perimeter intrusion detection
Aerospace & Defense: EO/IR gimbals, drone obstacle avoidance, target tracking systems

Explore Other ERDI 905nm Product Series

A Series（1000m~2000m）

Lowest Cost OEM Integration

1000m Module

This comparison of LRF1000A, LR1000B23, LR1000C3, and LR1000C4 helps engineers and product developers quickly determine the optimal module for their application.

D Series（600m~1500m）

Ready to Get Started?

Whether you need 100 units for a prototype run or 100,000 units for mass production, the A Series delivers the reliable performance and competitive pricing you need. We also offer flexible OEM/ODM customization options, including modified mechanical dimensions, custom communication protocols, and firmware adjustments.
