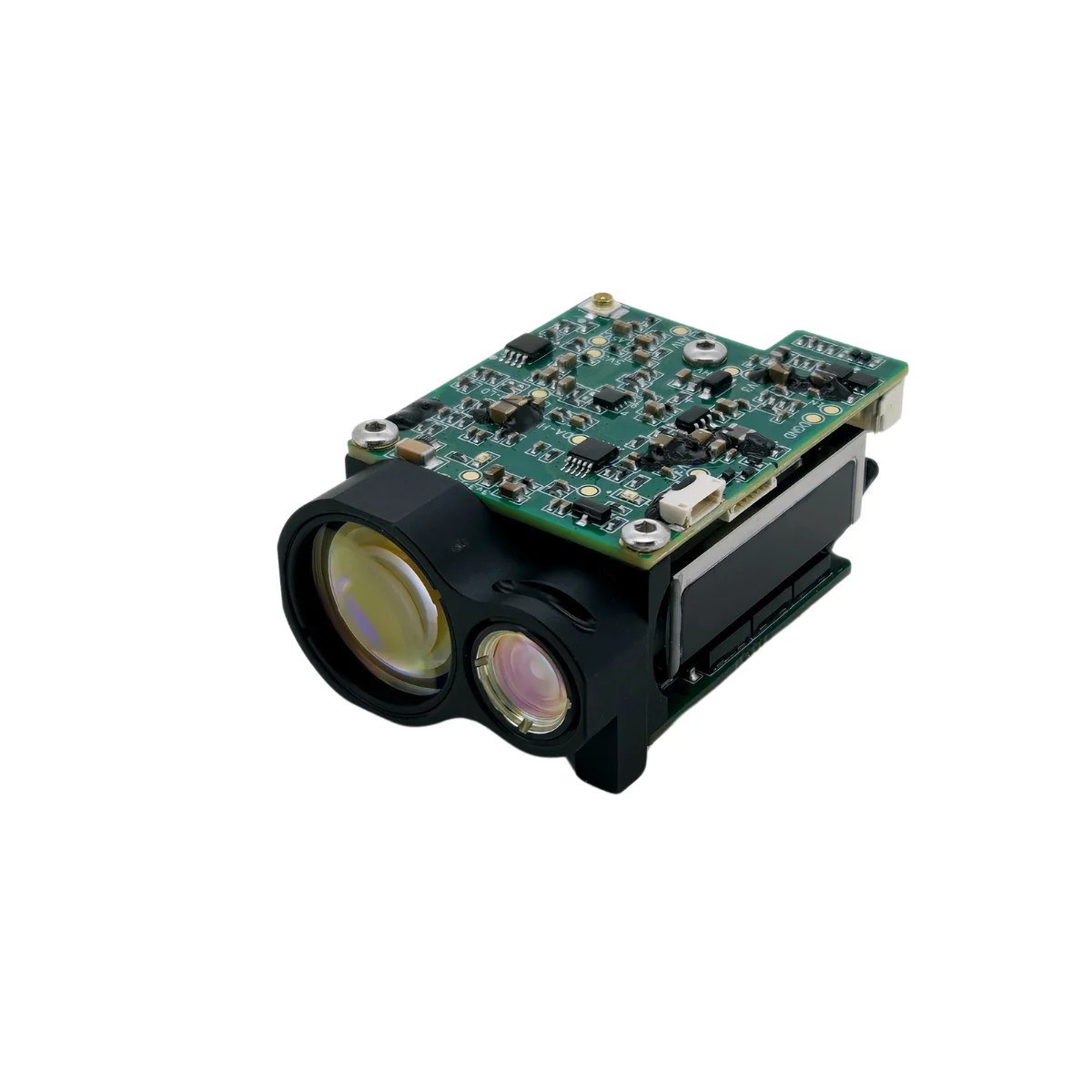

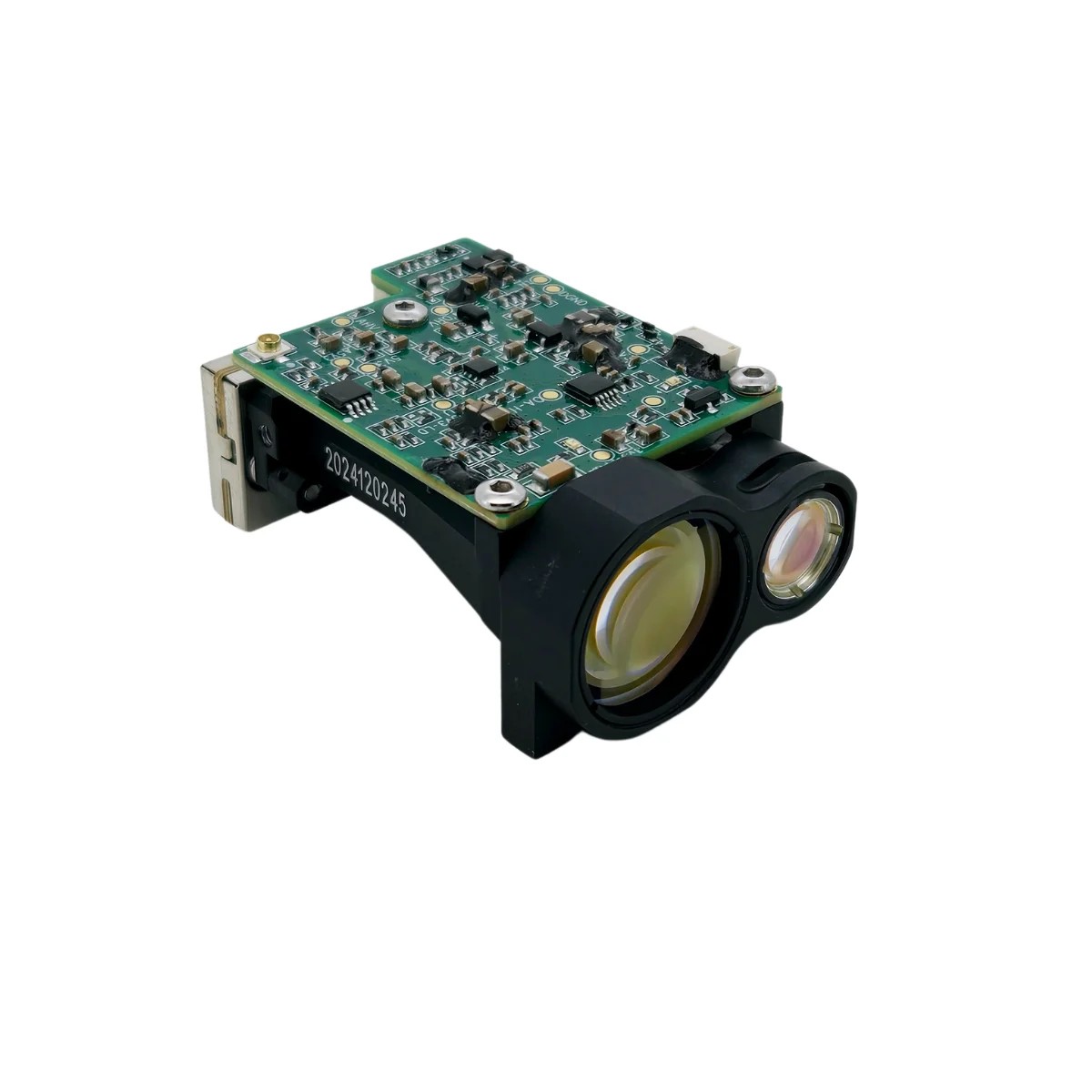

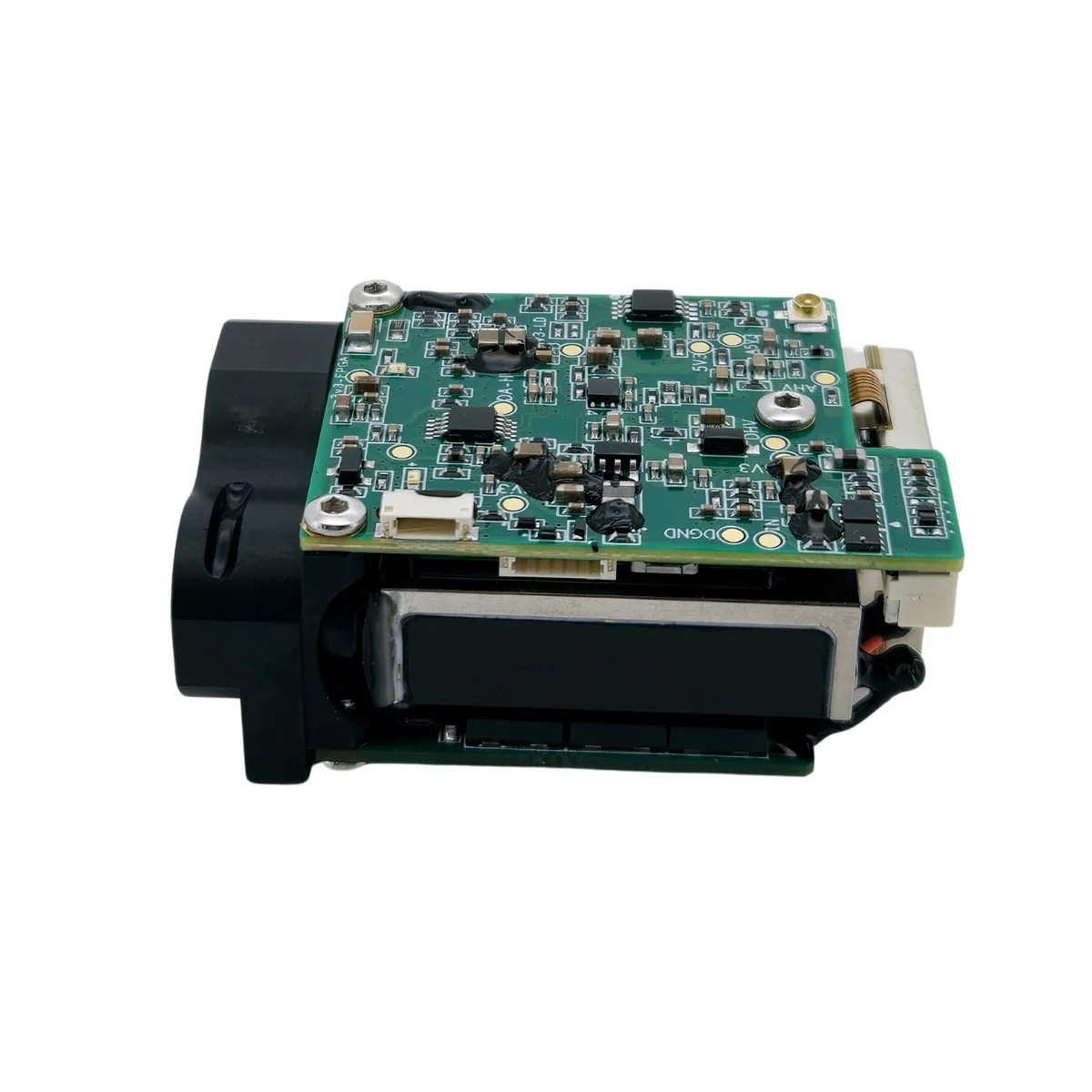

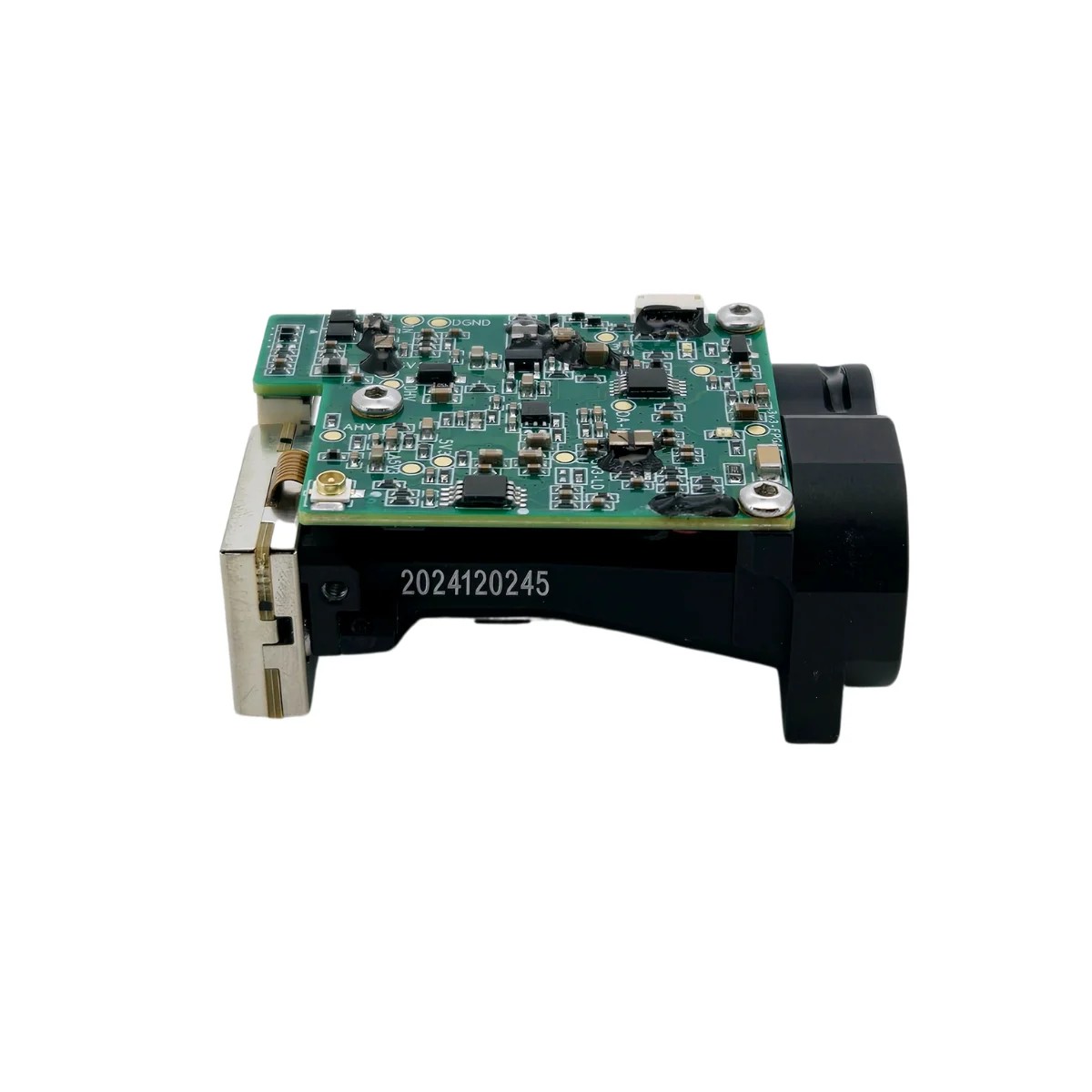

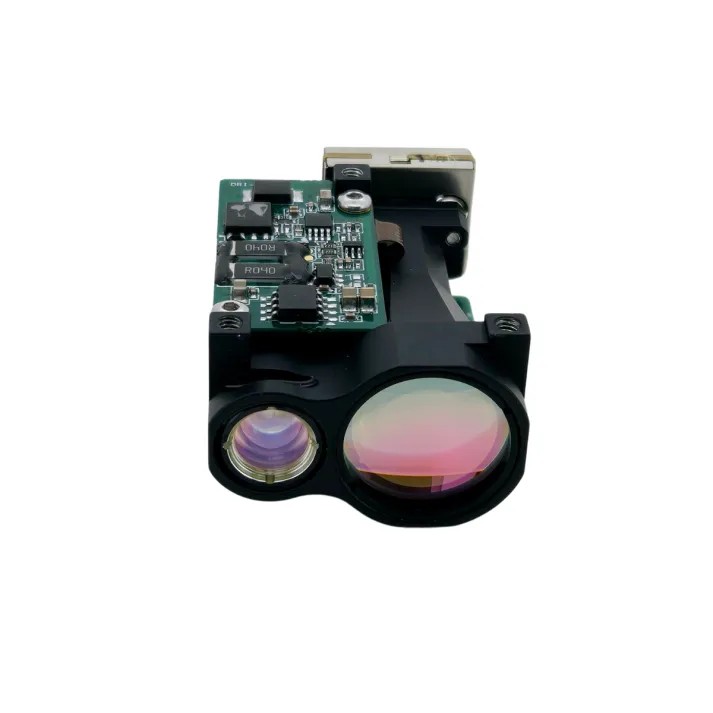

DPSS Laser Rangefinder Module 1535nm - 3km

Name: DPSS Laser Rangefinder Module 1535nm - 3km
Brand: ERDI TECH LTD
SKU: LRF0308C-03
Price: 800 USD
Availability: InStock

LRF0308C-03

Selling point

ERDI LASER® eyesafe laser ranging module, with a NATO target ranging capability of more than 3000m, provides an excellent laser ranging solution for UAVs, airborne and other optoelectronic platforms, equipped with UART (TTL_3.3V), RS232 and RS422(Choose 1 out of 3) communication electrical Interface (choose one from three). The built-in host computer software, instruction set and communication protocol make it convenient for users to carry out secondary development.

MOQ

After-Sales Support

OEM/ODM Capabilities

Support Global Delivery

30-day TrialTake

3D Model Download

Information Download

DESCRIPTION

The erbium laser is a diode-pumped solid-state DPSS laser that uses erbium-doped (Er³⁺) glass as the gain medium and a semiconductor diode as the pump source. The NATO standard ranging distance is no less than 3 km. The beam divergence angle is 0.6 mrad, featuring concentrated energy and superior beam quality. This ranging module is compactly designed and small in size, with dimensions of 48 × 30.5 × 21 mm and a weight not exceeding 32 g, making it very convenient for installation and integration.

The LRF0308C adopts a UART (TTL_3.3V) communication interface, offers multiple installation options, and supports program updates through the serial port.

TECHNICAL PARAMETERS

PROJECT	PERFORMANCE INDICATORS
Model	LRF0308C
Laser Wavelength	1535±5nm
Eye- safety	Class Ⅰ
Divergence Angle	≤0.6 mrad
Laser Energy	≥100 μJ
Launch Lens Diameter	Φ8 mm
Receiver Lens Diameter	Φ16 mm
Measuring Range （Reflectance 30%; visibility ≥ 5km.）	NATO objective(2.3m×2.3m) ≥3000m Measuring human target(0.5m×1.7m) ≥1200m
Minimum Range	≤15 m
Ranging Frequency	Single, 1Hz ~10Hz
Number of multi-target detections	Up to 3 targets
Ranging Accuracy	±2 m
Range Resolution	≤20 m
Precision Rate	≥98%
False Alarm Rate	≤1%
Pin-in-lead package model	FWF08002-S06B13W5M
Supply Voltage	DC3～5 V
Standby power consumption	≤1 mW
Average power consumption	≤2.5 W @10 Hz
Peak Power Consumption	≤7 W @12 V
Weight	≤32±1 g
Dimension (L×W×H)	48mm×30.5mm×21 mm
Operating Temperature	-40～+70 ℃
Storage Temperature	-55～+75 ℃
Impact Resistance	Meet the MIL-STD-810G testing standard
Vibration Resistance	Meet the MIL-STD-810G testing standard

STRUCTURAL DRAWING(mm)

The overall dimension and user installation interface of the ranging module are shown in the figure below.

The centroid position of the ranging module is shown in the figure below.

The centroid position of the rangefinder module is shown in the figure below.

ELECTRICAL INTERFACE

User Electrical interface: UART（TTL_3.3V）

The connector model of electrical interface is A1257WR-S-6P, and the specific wiring definition is shown in the table below

Pin	Definition	Description	Cable color
1	Positive power supply	Power supply, 4.5 ~ 16V	Red
2	Negative power supply	Power supply, ground	Black
3	POWER_ON	Module power switch, TTL_ 3.3V level; Module on (> 2.7V), module off (< 0.3V);	White
4	UART_TX	Serial port sender, TTL_ 3.3V level	Yellow
5	UART_RX	Serial port receiver, TTL_ 3.3V level	Green
