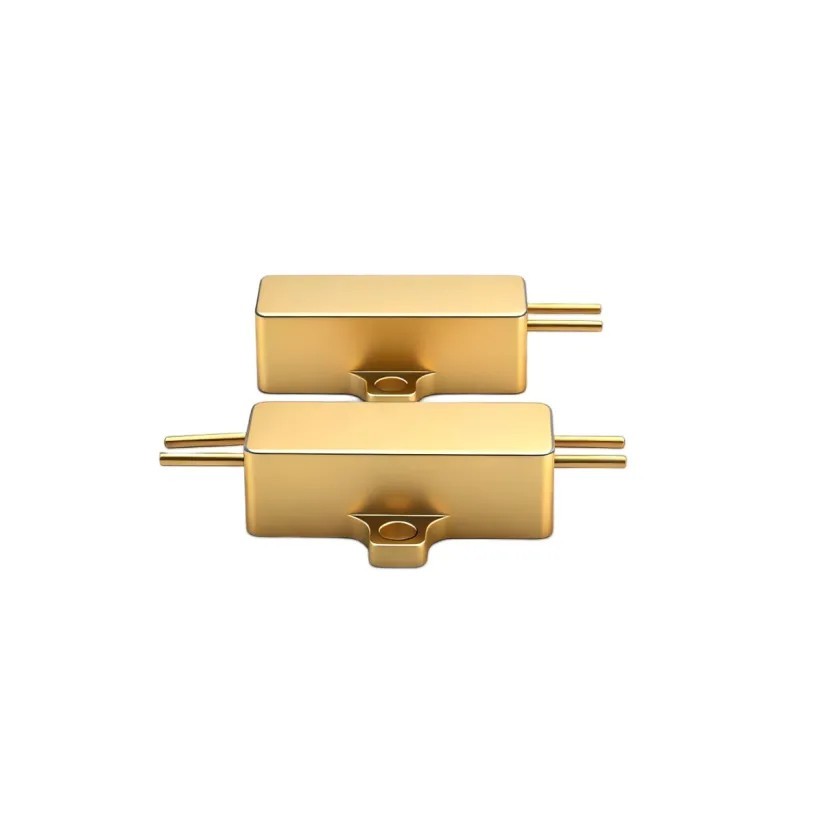

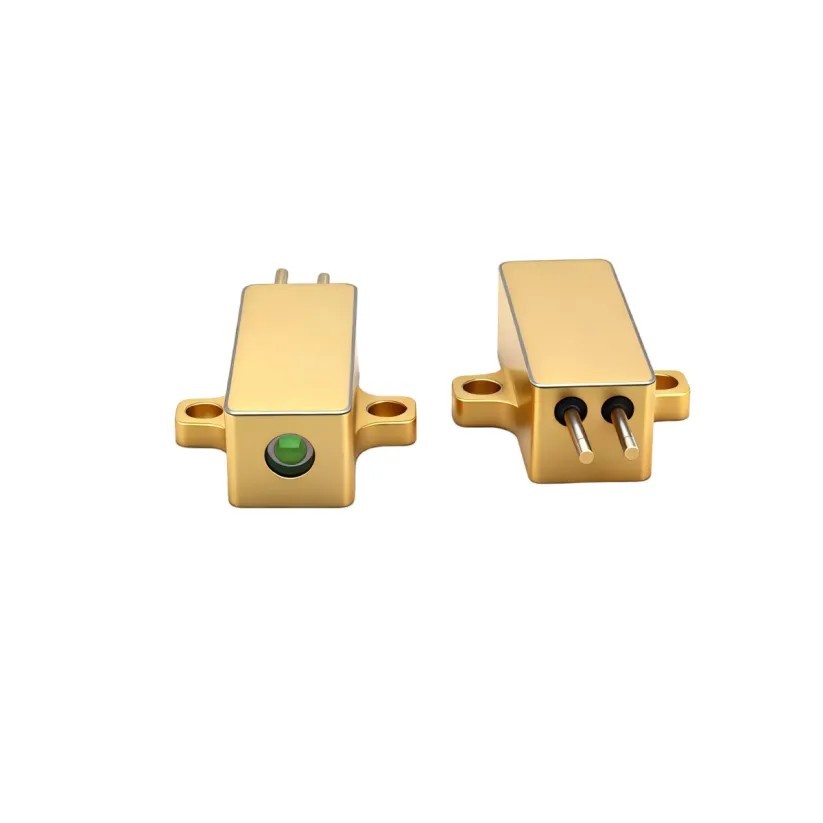

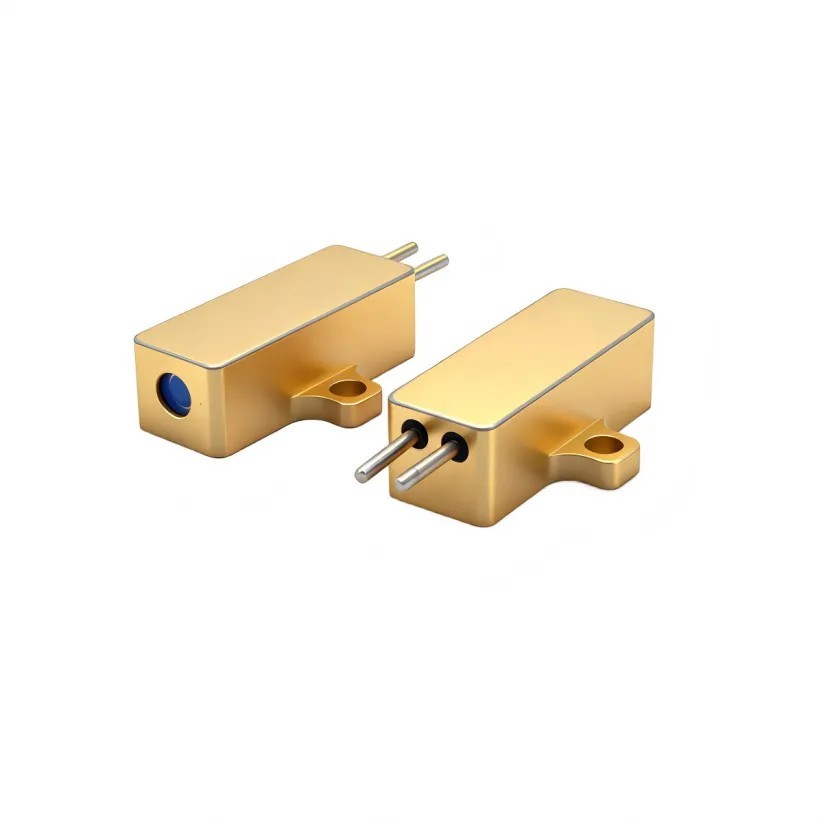

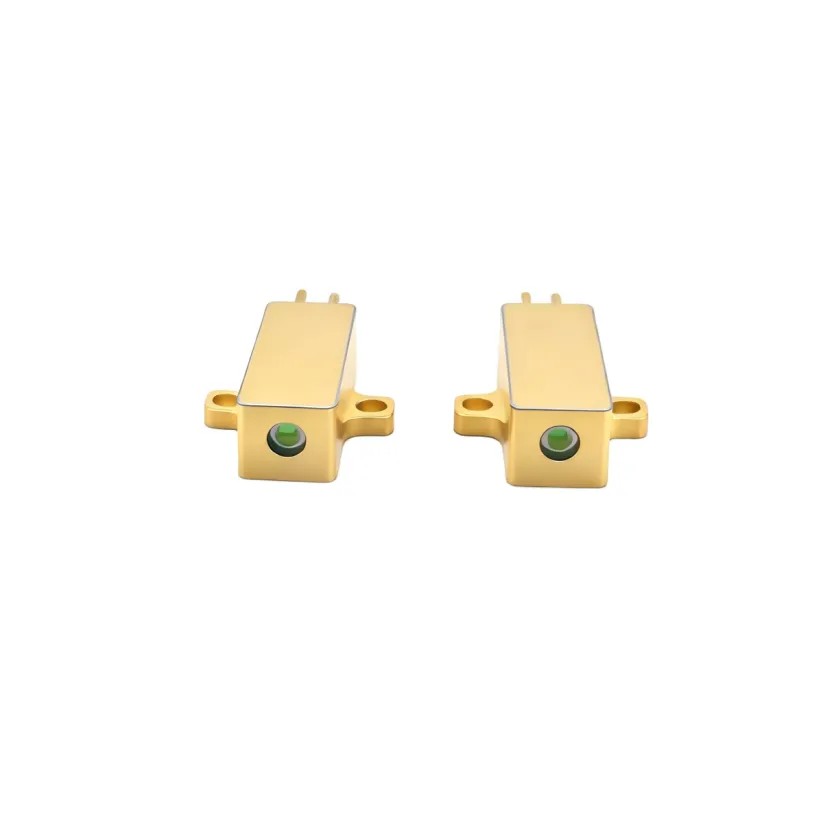

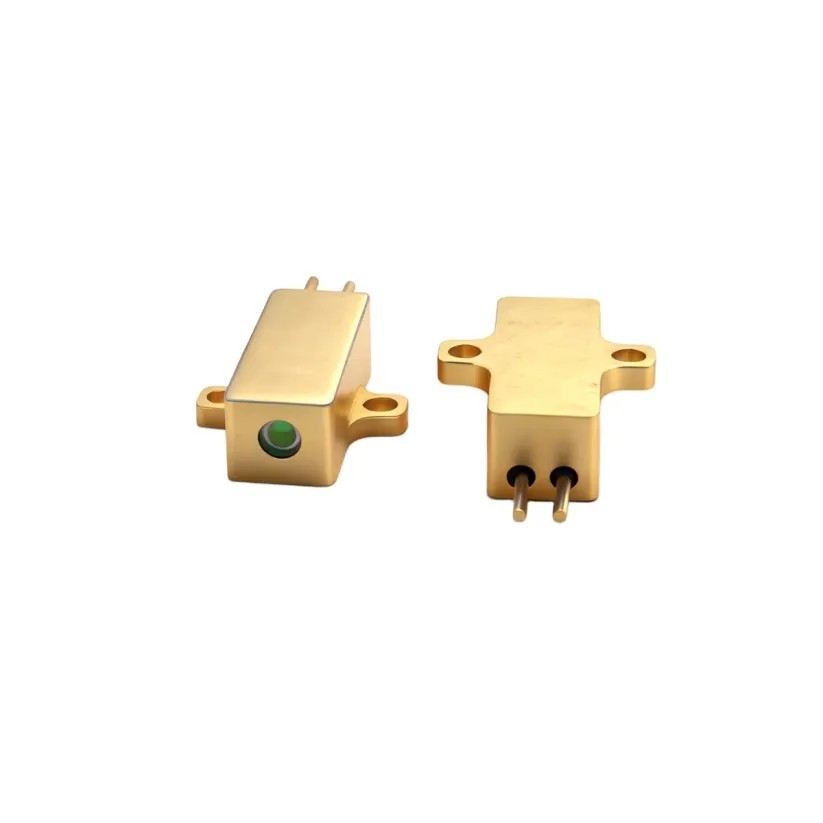

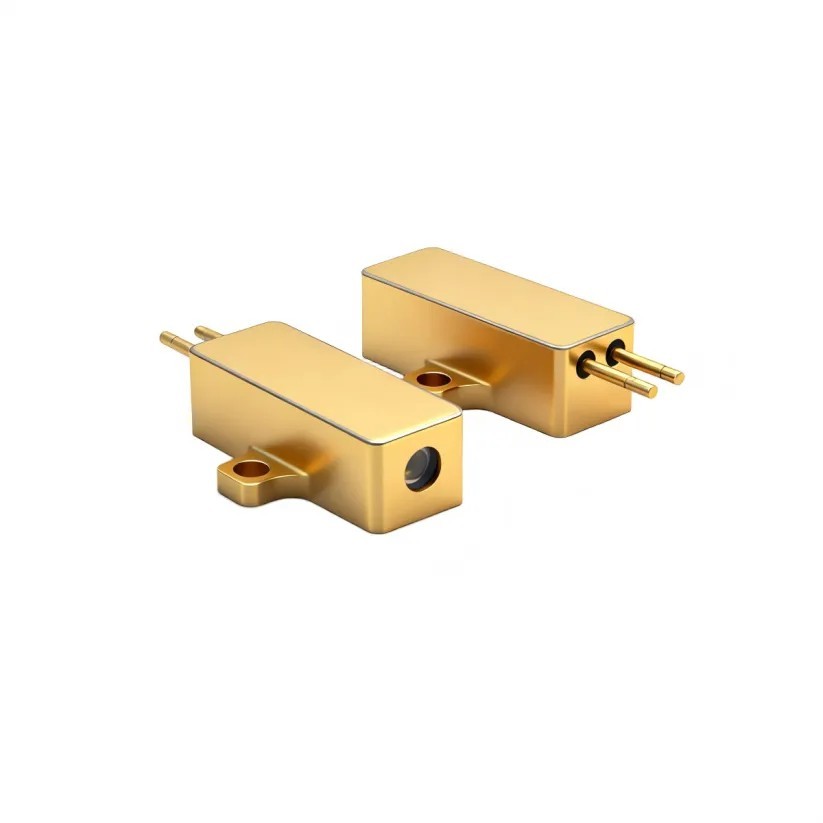

1535nm Diode Pumped Solid-state DPSS Laser -300μJ
MOQ
After-Sales Support
Choose ERDI modules with confidence.
OEM/ODM Capabilities
Support Global Delivery
30-day TrialTake
PRODUCT DESCRIPTON
The ERDI LASER® ER300 is a Diode Pumped Solid-State Laser (DPSSL) built with co-doped Er:Yb phosphate glass and a high-efficiency semiconductor pump source. This erbium-glass laser delivers ≥300 μJ pulse energy, 5 ns pulse width, and 1–10 Hz repetition rate, providing stable Class 1 eye-safe output. With its compact size and reliable performance, ideal for LiDAR, laser rangefinder, and outdoor optical systems.
Key Advantages
- Eye-Safe 1535 nm Output – Class 1 erbium-glass laser suitable for safety-critical applications.
- High Optical Quality – TEM00 beam, ≤7 mrad divergence, and stable 10% pulse performance.
- Rugged & Reliable – Wide temperature range, MIL-STD-810G compliant, ≥10 million-shot lifetime.
- Compact & Easy to Integrate – 25×8×6.8mm, 8.5 g, 2 V drive for seamless system integration.
TECHNICAL PARAMETERS
| Model | ER300 |
| Wavelength | 1.54 μm |
| Eye safe | Class 1 |
| Pulse energy | ≥300 μJ |
| Laser Pulse width | 5 ns |
| Drive pulse width | ≤ 2.4ms |
| Pulse repetition rate | 1~10Hz |
| Pulse stability | 10% |
| Raw Beam Diameter | 0 .3 mm |
| Beam divergence angle | ≤ 7 mrad |
| Beam Mode | TEM00 |
| Operating temperature | -40 ℃ ~ +65 ℃ |
| Storage temperature | -55 ℃ ~+ 75℃ |
| Dimension (mm) | 25×8×6.8mm3 |
| Weight | 8.5 g |
| Voltage | 2 V |
| Electric current | 12A |
| Impact | Meets MIL-STD-810G test standards |
| Vibration | Meets MIL-STD-810G test standards |
| Service life | ≥10 million times |
DIMENSION(mm)
