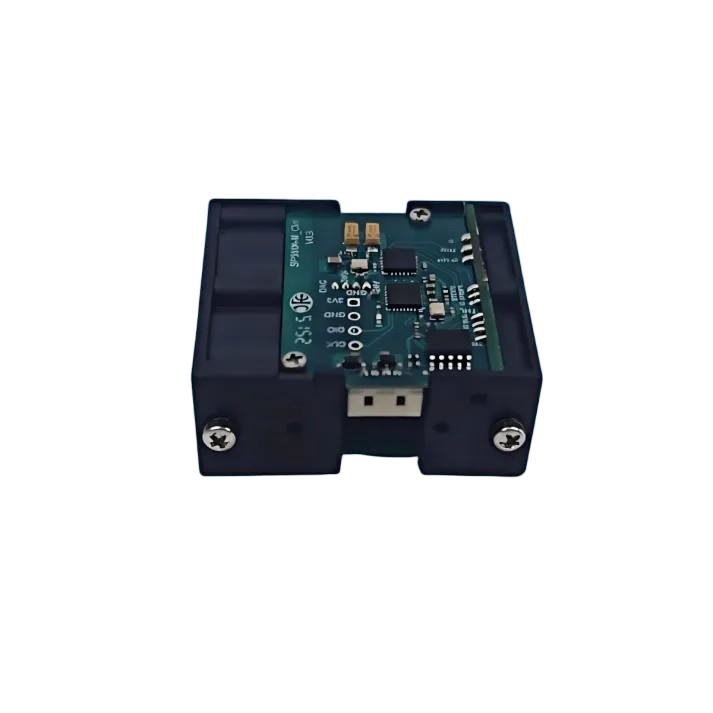

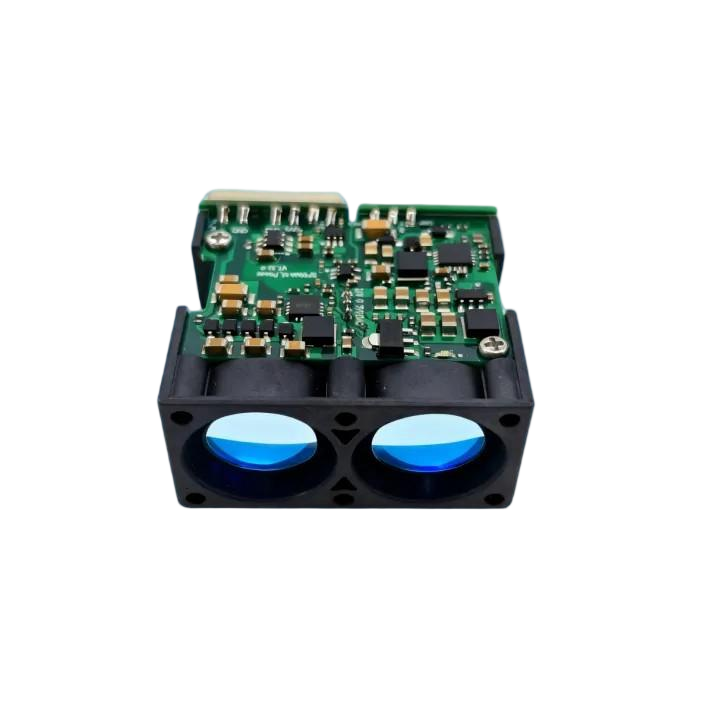

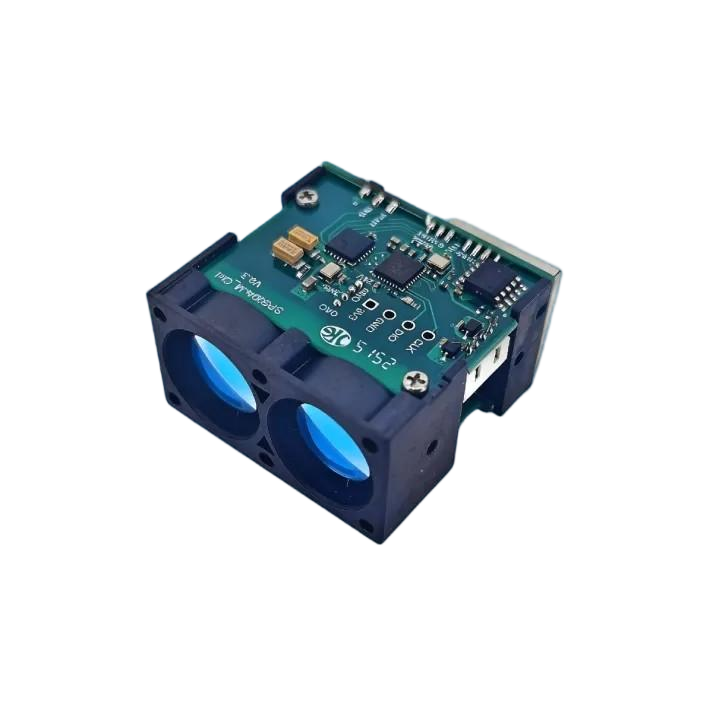

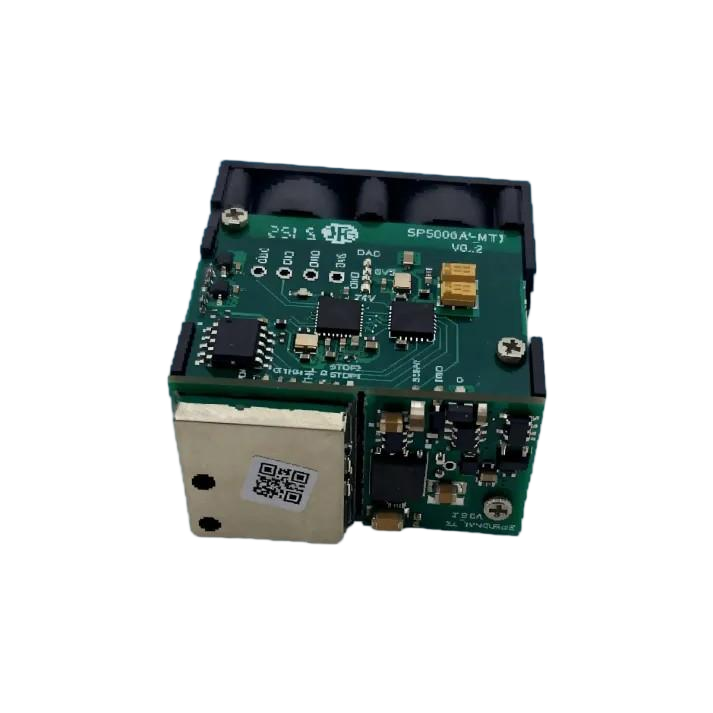

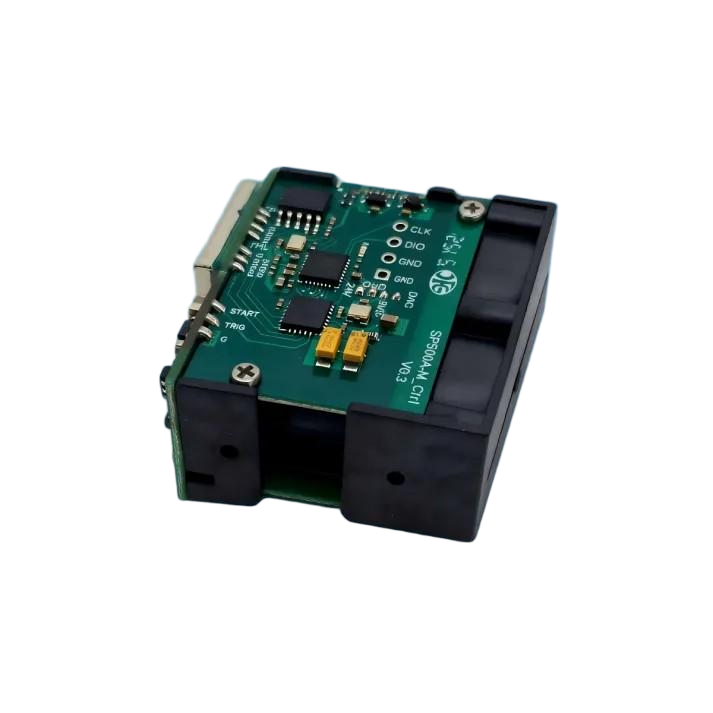

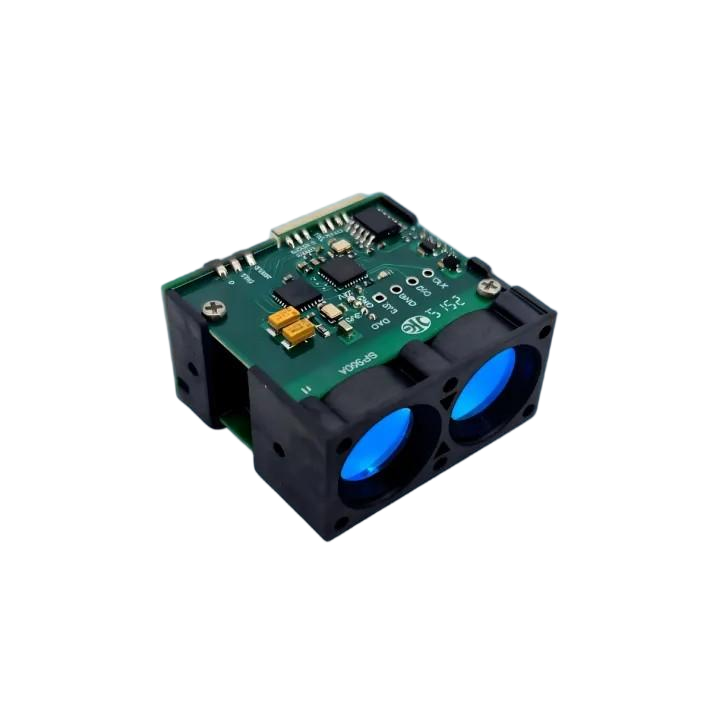

905nm High Precision DTOF Laser Ranging Sensor - 600m
MOQ
After-Sales Support
Choose ERDI modules with confidence.
OEM/ODM Capabilities
Support Global Delivery
30-day TrialTake
_1445x.png?w=713&h=713&q=80)
_1445x.png?w=713&h=713&q=80)
_1445x.png?w=713&h=713&q=80)
_1445x.png?w=713&h=713&q=80)
_1445x.png?w=713&h=713&q=80)
_1445x.png?w=713&h=713&q=80)
_1445x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
_1800x.png?w=713&h=713&q=80)
PRODUCT DESCRIPTON
The ERDI LASER® LRF600H is a 905nm high-frequency automotive LiDAR sensor utilizing DTOF laser technology for fast and precise distance measurement. Designed for autonomous vehicles, robotics, and industrial automation, it delivers stable and reliable performance even under strong ambient light conditions.
Key Advantage
-
High-Precision Measurement: ±10 cm accuracy at short distances (<10 m) and 1% beyond 10 m, with repeatability ±50 cm at maximum range.
-
Adaptive High-Frequency Sensor: Supports 1 kHz or 50 Hz, automatically switching to match reflected signal intensity for optimal performance.
-
Compact & Lightweight Design: Dimensions 33×34×18 mm, weight 20 g, ideal for integration into automotive and robotic systems.
-
Robust & Flexible Integration: Excellent ambient light immunity (up to 100K Lux), UART/I²C interface, low power consumption (1.2 W), and customizable appearance, structure, and output protocols.
TECHNICAL PARAMETERS
|
Model |
LRF600H |
|
Range |
0.05m～600m (90%reflectivity), 0.05m～200m (10%reflectivity) |
|
Frequency |
1KHz or 50Hz (Switch automatically to match the intensity of reflected signals) |
|
Accuracy |
±10cm (<10m), 1% (≥10m) |
|
Repeatability |
±5cm (<10m), ±50cm@600m |
|
Ambient Light Immunity |
100KLux |
|
Central Wavelength |
905nm |
|
Photobiological Safety |
Class1 |
|
FOV |
about 4mrad |
|
Wavelength for Indication |
N/A |
|
Photobiological Safety for Indication |
N/A |
|
Supply Voltage |
9~36VDC |
|
Peak Current |
100mA |
|
Average Current |
55mA |
|
Average Power Consumption |
1.2W |
|
Communication Interface |
UART/IIC |
|
Protection Level |
N/A |
|
Dimension |
33 x 34 x 18mm |
|
Weight |
20±2g |
|
Operating Temperature |
-20℃~+60℃ |
|
Wire Specification |
1.25mm，5P 50cm stranded wires |
|
Customization |
available in appearance / structure / output protocol |
DIMENSION(mm)
INTERFACE
 |
||
|
No. |
Definition / Wire Color |
User Interface |
|
1 |
9-36V (Red) |
External Power + |
|
2 |
Power GND (Black) |
External Power - |
|
3 |
Port GND (Yellow) |
GND |
|
4 |
TX (Green) |
RX |
|
5 |
RX (Blue) |
TX |
Information Download
-
