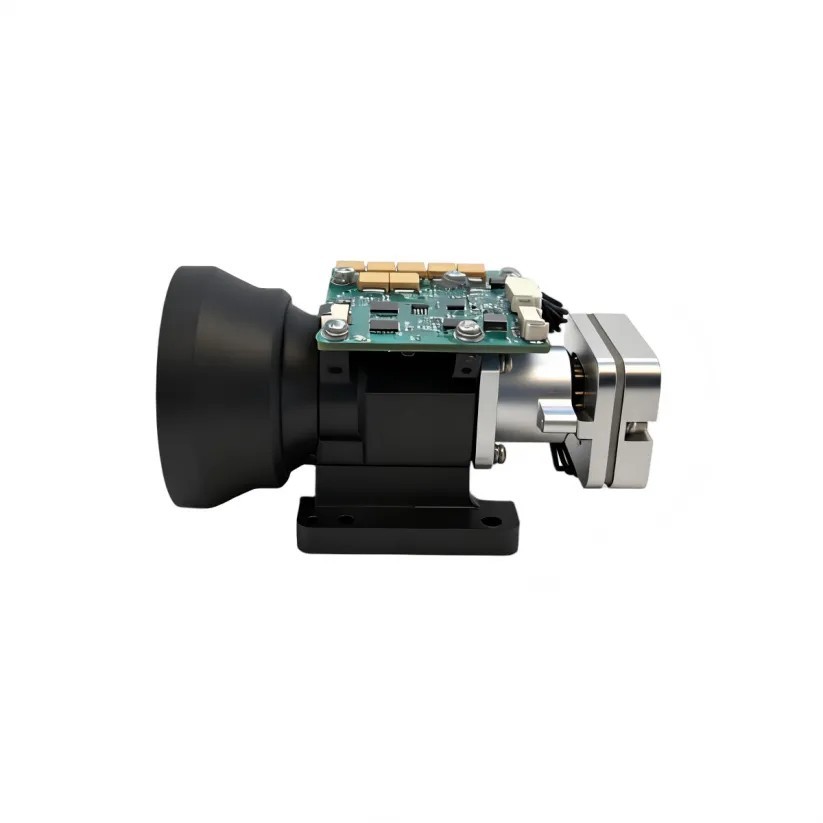

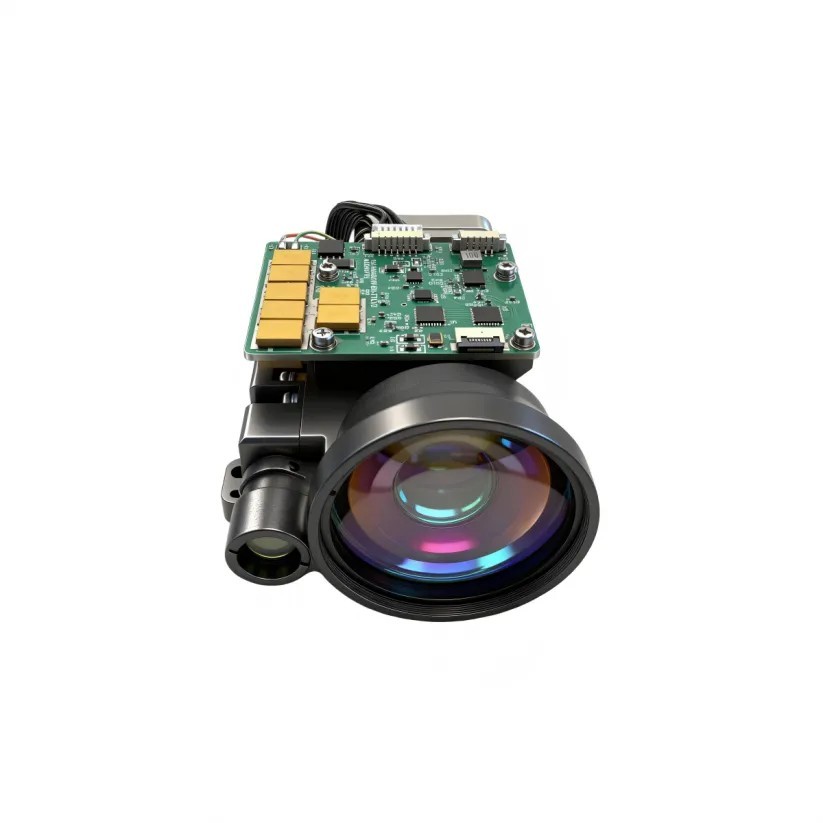

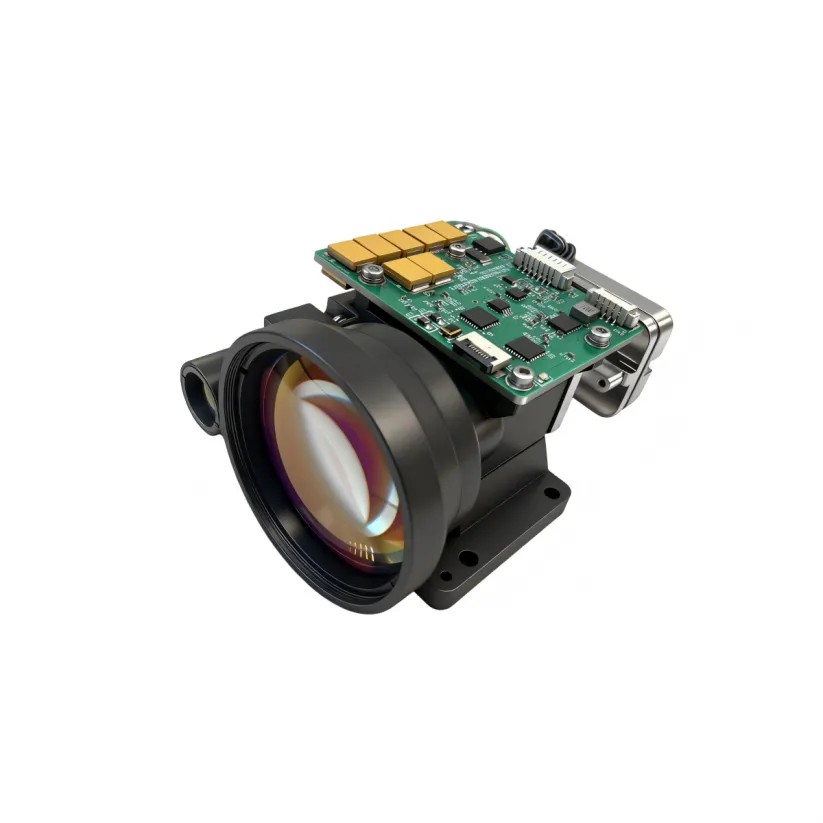

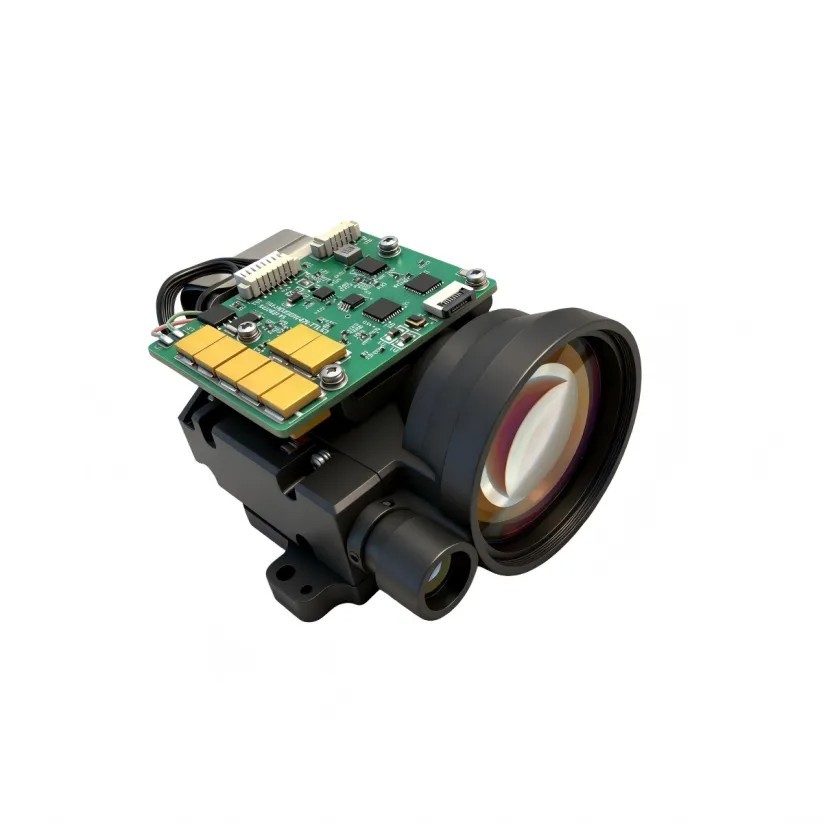

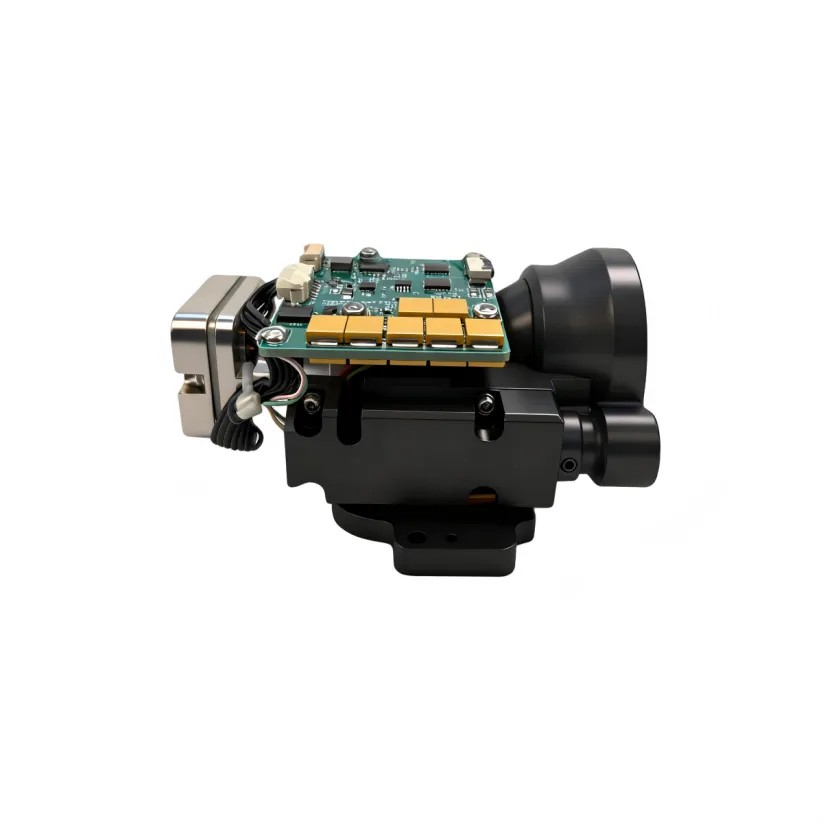

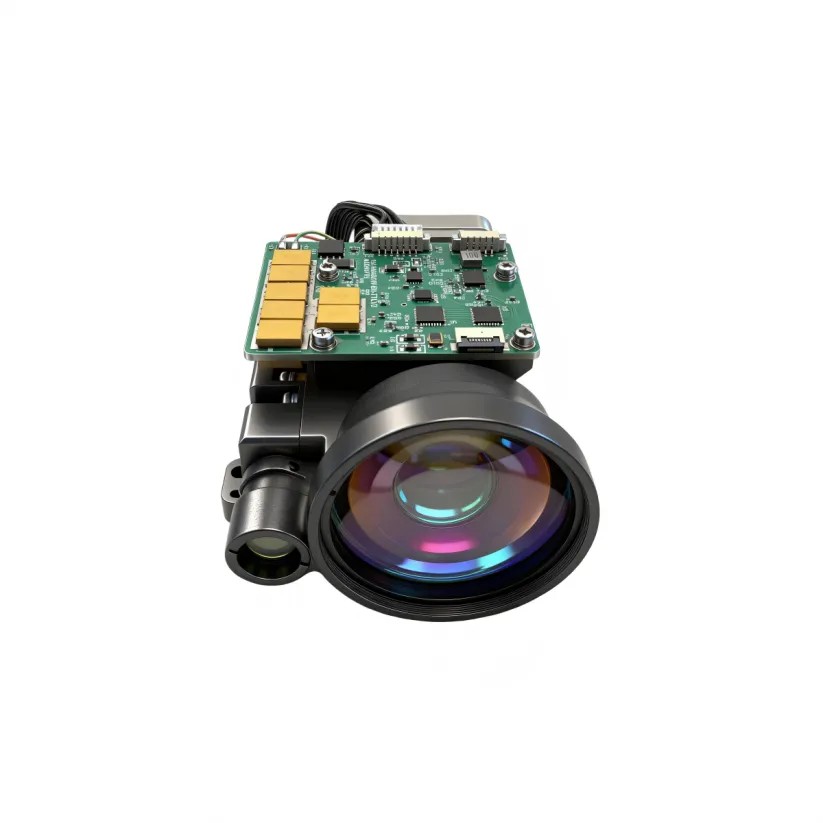

DPSS Laser Rangefinder Module 1535nm - 8km

The ERDI LASER® LRF0815C is a long- range Class 1 eye-safe 1535nm laser rangefinder featuring a high-energy ≥300μJ erbium-glass laser and a large-aperture Φ40mm receiver, enabling ≥8000m detection on NATO targets. Designed for UAV pods, long-range surveillance platforms, and electro-optical systems, it supports 0.5–10Hz ranging with ±2m accuracy and stable performance from −40℃ to +70℃.

Key Advantages

• Extended detection range: ≥8000m ranging with ≥98% precision and ≤1% false-alarm rate.
• High optical performance: Narrow ≤0.3mrad divergence and Φ40mm receiver lens for strong long-range return signal.
• Robust field reliability: MIL-STD-810G shock & vibration resistance with wide temperature adaptability.
• Flexible integration: RS422 (optional TTL), low 2W average power, and compact 65×46×86mm design for EO/IR platforms.

Electrical connector model: J30J;Detailed definition of electrical interface is shown in the following table:

Table Interface definition
