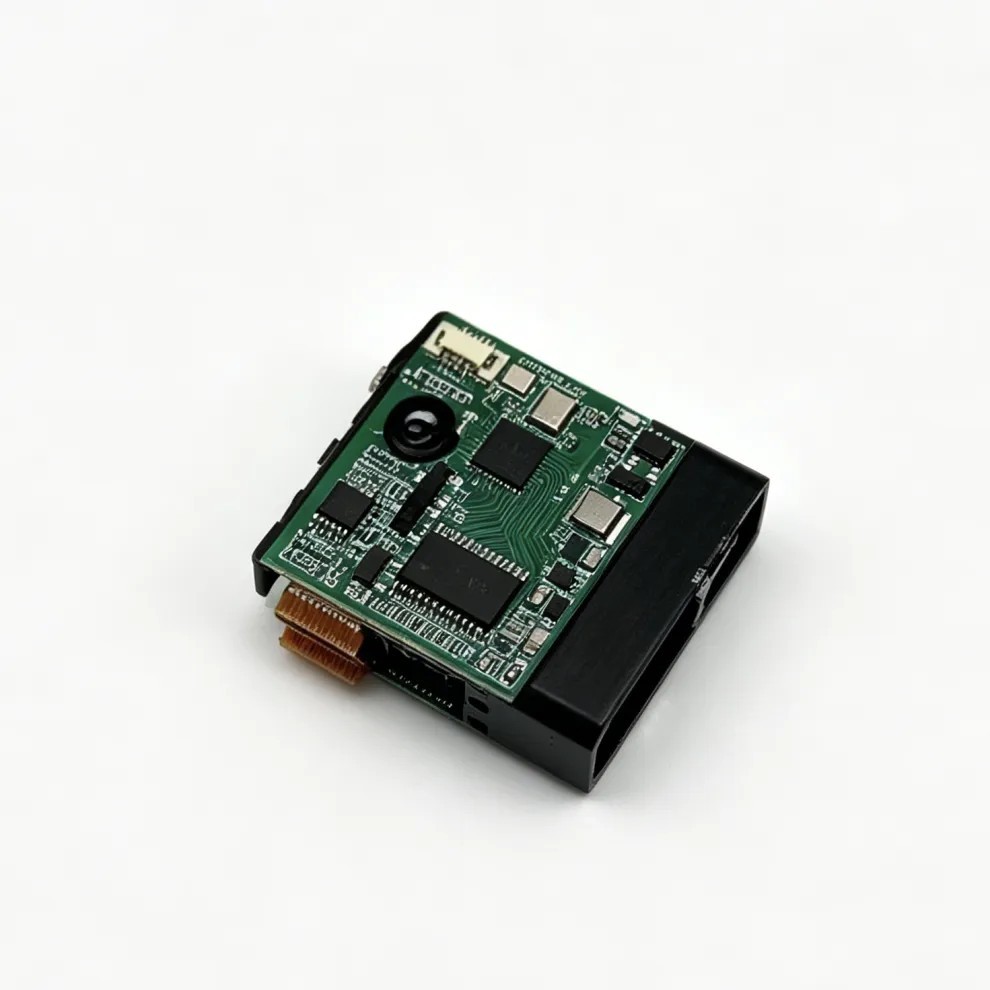

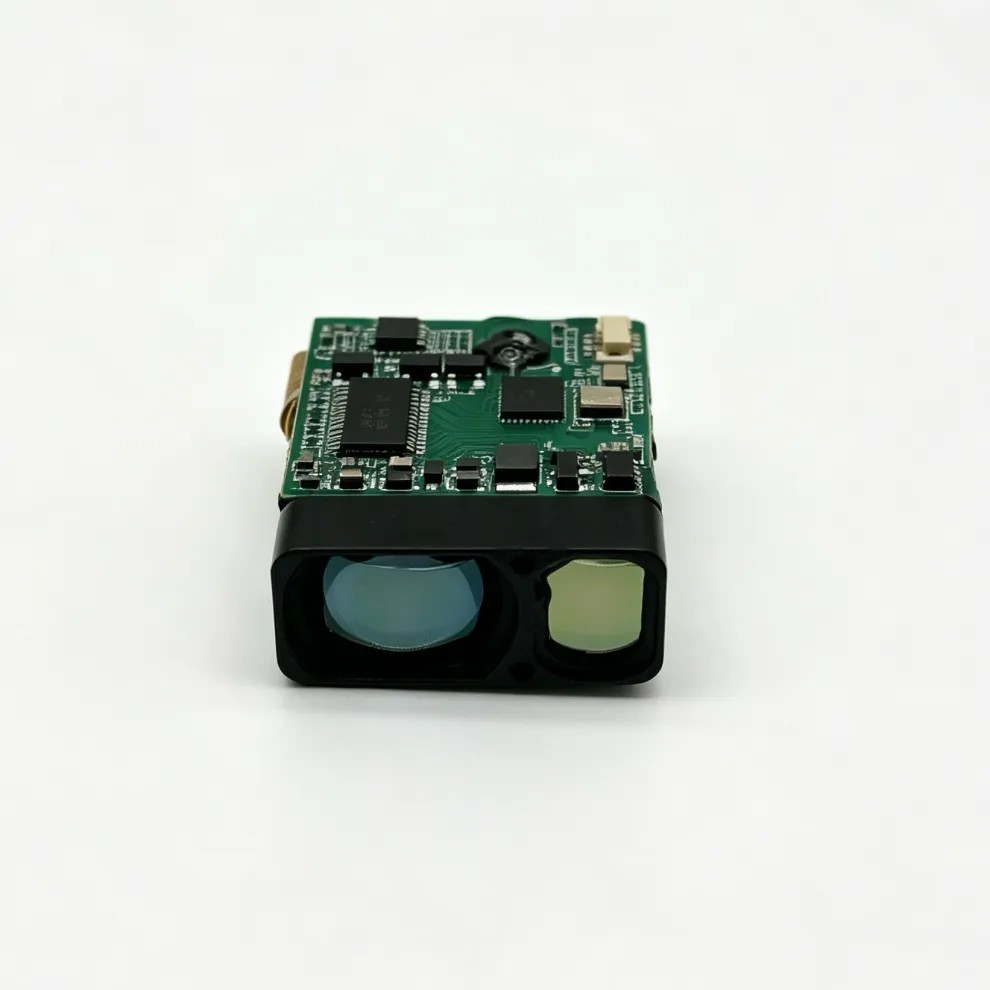

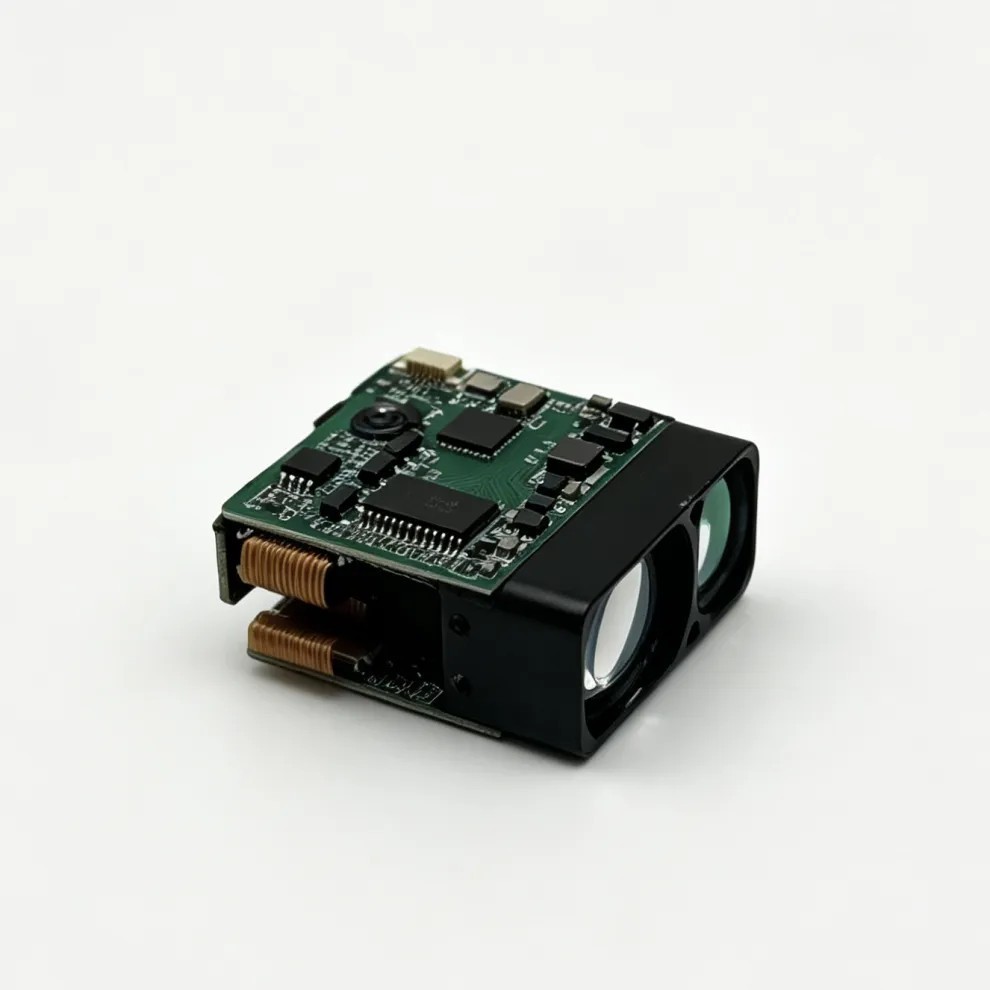

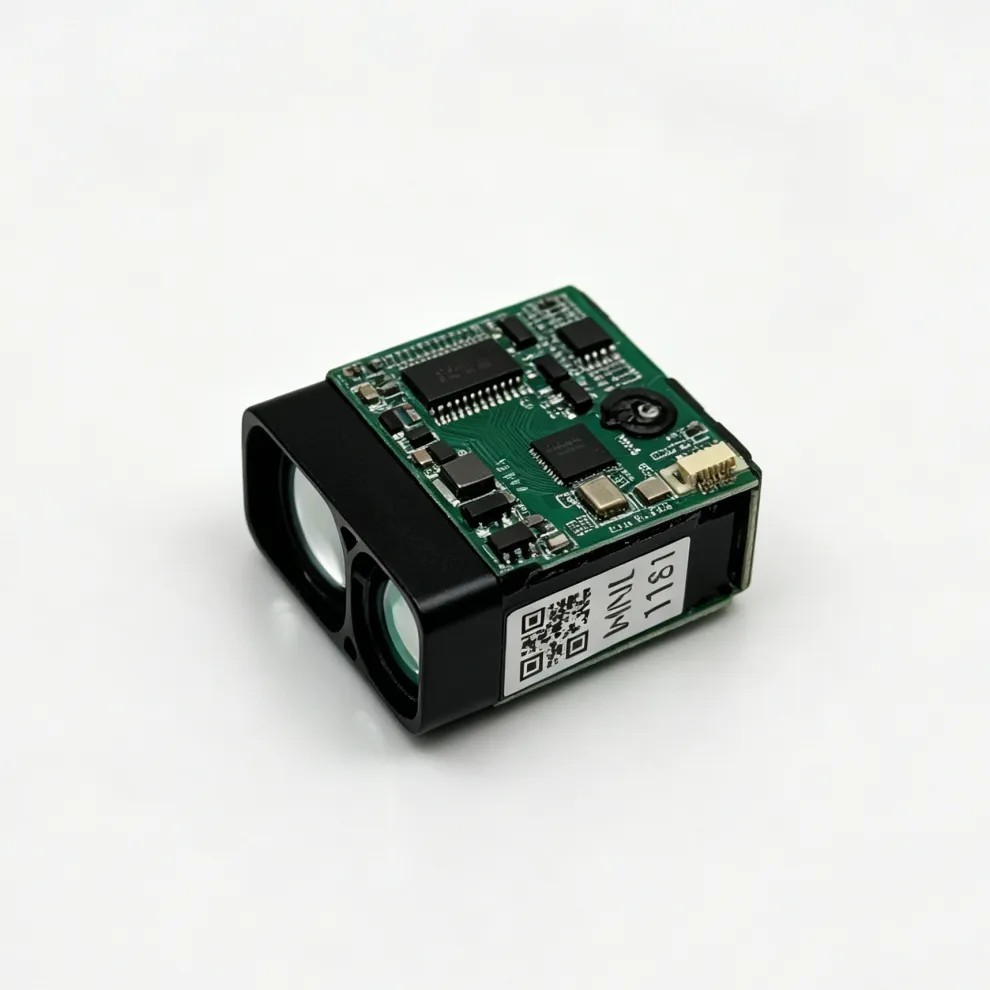

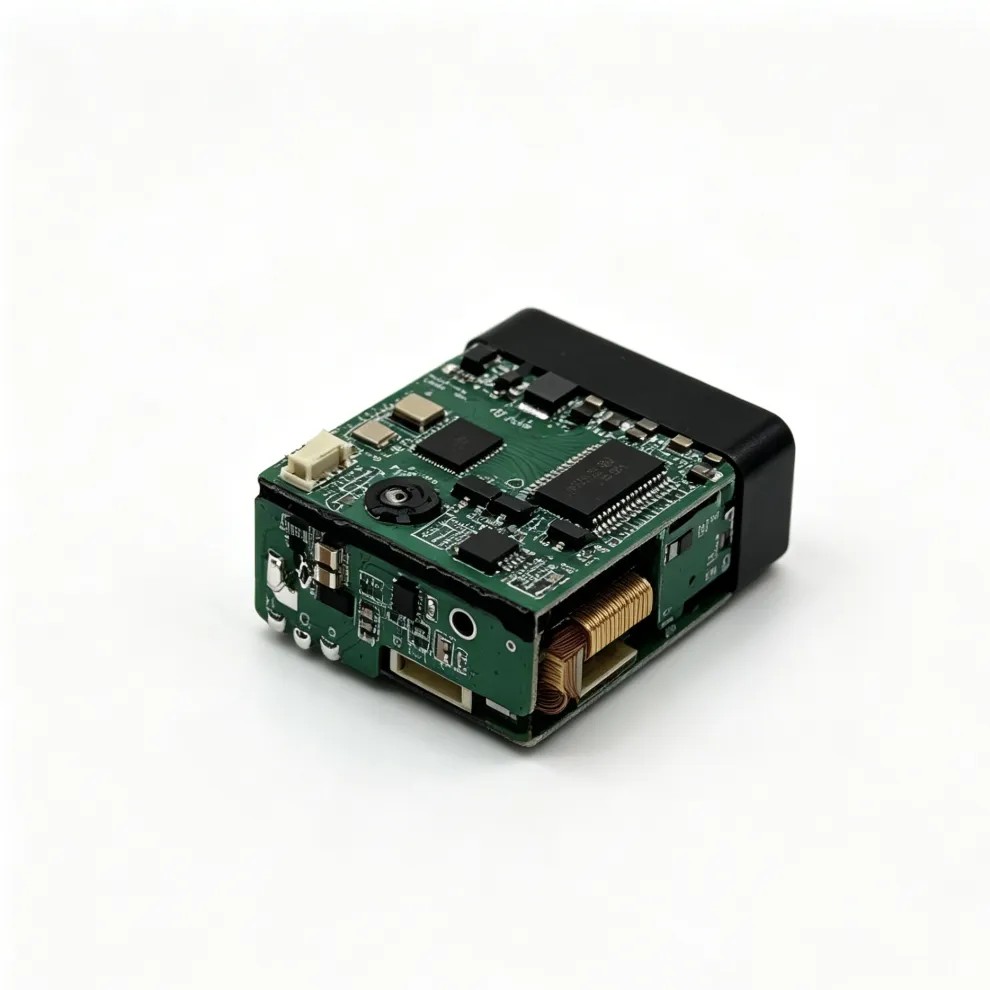

The ERDI LASER® LRF3000A1 is a compact 905nm laser rangefinder module designed for precise distance measurement up to 3000 meters. Featuring Class 1 eye-safe laser technology, high measurement accuracy, UART TTL communication, and ultra-lightweight design, this laser distance sensor provides a reliable ranging solution for UAV payloads, EO/IR systems, robotics, autonomous platforms, and industrial applications.
Key Advantage
- 3km Long-Range Measurement: Supports ranging distances up to 3000m on building targets with high measurement reliability.
- Ultra-Compact & Lightweight Design: Only 12g with a compact size of 13.5×25.1×27.8mm, ideal for UAV and embedded systems.
- Class 1 Eye-Safe 905nm Laser: Uses 905nm Class 1 laser technology (IEC 60825-1) for safe and reliable distance sensing.
- Easy System Integration: Supports UART TTL interface, compatible with UAV controllers, EO/IR payloads, and embedded platforms.
- Low Power & Fast Response: Optimized for battery-powered applications with operating power as low as ≤1.6W.
- IP67 Rugged Protection: Designed for outdoor environments with strong resistance to dust, water, vibration, and shock.
TECHNICAL PARAMETERS
|
Maximum Ranging Distance |
≥ 3000 m @ 70% reflectivity, building target |
|
Minimum Ranging Distance |
1 m @ 90% reflectivity, white board |
|
Ranging Accuracy |
d≤100m:±0.7m d>100m:±（0.7+0.0003*d）m (d represents distance, in meters) |
|
Measurement Frequency |
Normal Mode: 3–10 Hz, adaptive |
|
Valid Measurement Rate |
≥98% |
|
False Alarm Rate |
≤1% |
|
Baud Rate |
115200 bps (factory default) / 9600 bps |
|
Interface Type |
UART(TTL_3.3V) |
|
Supply Voltage |
DC 3.3 V–5 V (ripple < 0.1 V) |
|
Standby Power Consumption |
≤ 350 mW (Power on pulled low) |
|
|
≤ 1 mW (Power on pulled high) |
|
Operating Power Consumption |
≤1.8W@25℃ ≤2.1W@70℃ ≤1.6W@-20℃ |
|
Response Time |
Minimum: ≤ 160 ms + 100 ms Maximum: ≤ 160 ms + 517 ms |
|
Laser Wavelength |
905±10nm Class 1(IEC 60825-1) |
|
Typical Beam Divergence |
≤10mrad |
|
Average Laser Power |
7.63mW |
|
Receiver Field of View |
≈8mrad |
|
Weight |
12±0.5g |
|
Dimensions |
13.5mmÍ25.1mm Í27.8mm |
|
Shock |
1000 g/ms (10 times/s along the optical axis) |
|
Vibration |
5–50–5 Hz, 1 octave/min, 2.5 g |
|
Operating Temperature |
-20～+60℃ |
|
Storage Temperature |
-25～+75℃ |
|
Reliability |
MTBF≥1500h |
|
Protection Rating |
IP67 |

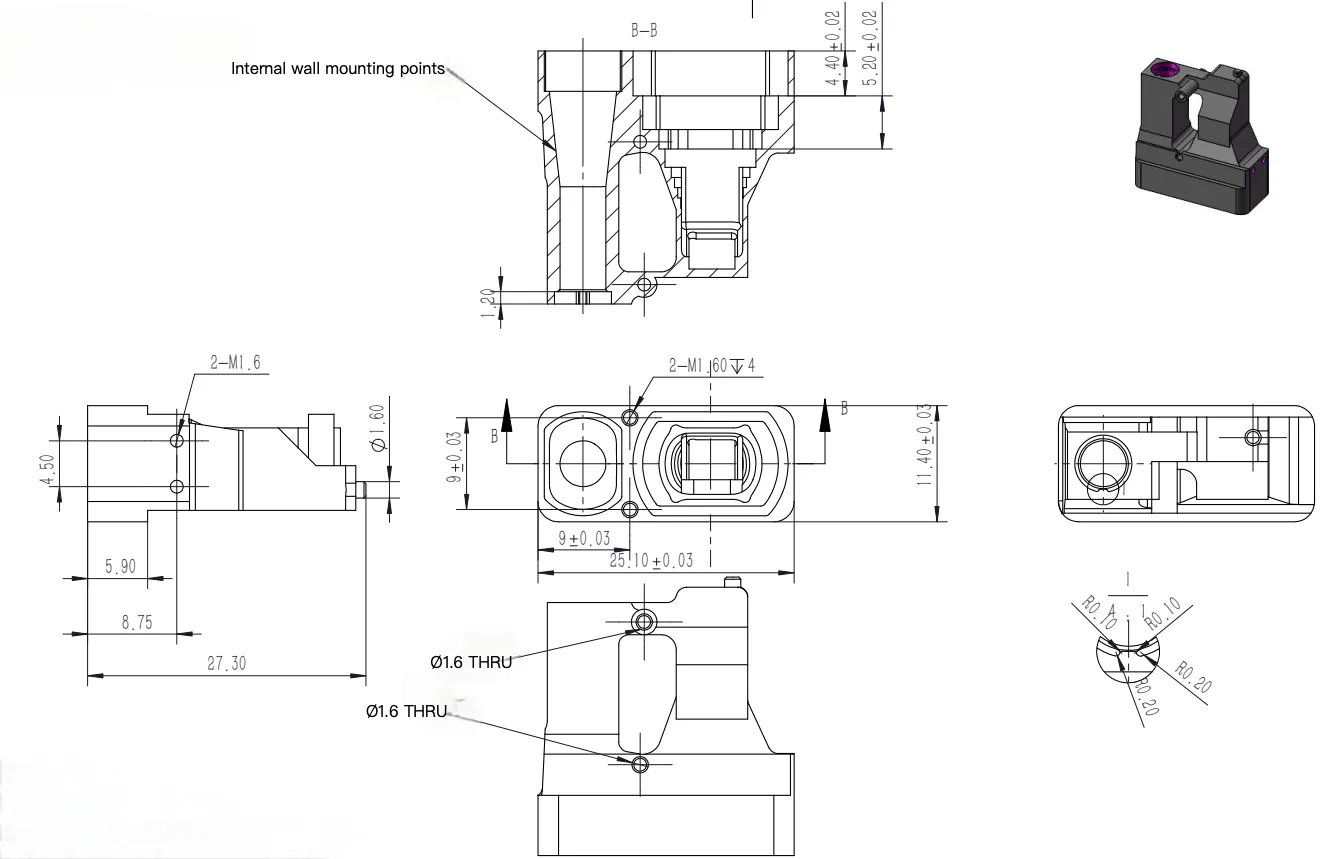

DIMENSION(mm)
INTERFACE
|
Pin |
Definition |
Description |
|
1 |
GND |
Ground |
|
2 |
Power Supply |
3.3 V–5 V DC Power Supply |
|
3 |
NC |
Reserved Pin |
|
4 |
TTL_TXD |
Serial TX, TTL_3.3 V level |
|
5 |
TTL_RXD |
Serial RX, TTL_3.3 V level |
|
6 |
Enable Pin |
Power ON at low level |
Information Download
-
