1535nm High Frequency Erbium Glass Laser - 5kHz
ER10
Selling point
MOQ
No MOQ restrictions apply—sample orders are fully supported, allowing you to evaluate device performance firsthand before scaling up purchases.
After-Sales Support
We provide a 1-year warranty on all devices, complemented by lifetime technical after-sales assistance to ensure long-term operational efficiency for your business.
OEM/ODM Capabilities
We offer comprehensive OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, tailored to meet your branding, specification, and customization needs.
Support Global Delivery
30-day TrialTake
DESCRIPTION
ERDI LASER® ER10 is a high-repetition 1535 nm erbium glass laser that features Class 1 eye safety and advanced bonded-body packaging technology, making it compact, lightweight, and reliable. Delivering ≥10 μJ pulse energy at up to 5 kHz, it operates in the infrared range and is ideal as a laser source for lightweight LiDAR sensors and laser rangefinders.
TECHNICAL SPECIFICATIONS
| Wavelength | 1535 nm |
|
Laser Energy |
≥10 μJ |
| Eyesafe | Class 1 |
| Laser Pulse width | 5 ns |
| Drive pulse width | ≤ 0.3ms |
| Pulse repetition rate | 5KHz |
| Pulse stability | 10% |
| Directivity | <0.2° |
| Raw Beam Diameter | 0 .2 mm |
| Beam divergence angle | ＜15 mrad |
| Beam Mode | TEM00 |
| Operating temperature | -45 ℃~+65 ℃ |
| Storage temperature | -55 ℃~+85 ℃ |
| Dimension (mm) | 17×8×7 |
| Weight | 7 g |
| Voltage | 2 V |
| Electric current | 5 A |
| Impact | 1500 G, 0 . 5 ms |
| Vibration | 20~2000 Hz/20 G |
| Service life | ＞5 million times |

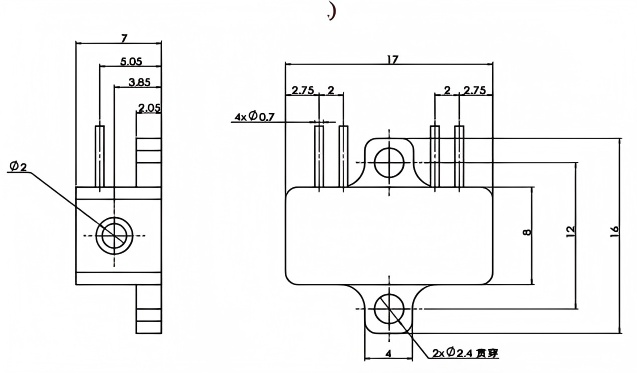

MECHANICAL DIMENSIOM(mm)
