1064nm Laser Rangefinder & Target Designator - 20mJ
MOQ
After-Sales Support
OEM/ODM Capabilities
Support Global Delivery
30-day TrialTake
PRODUCT DESCRIPTON

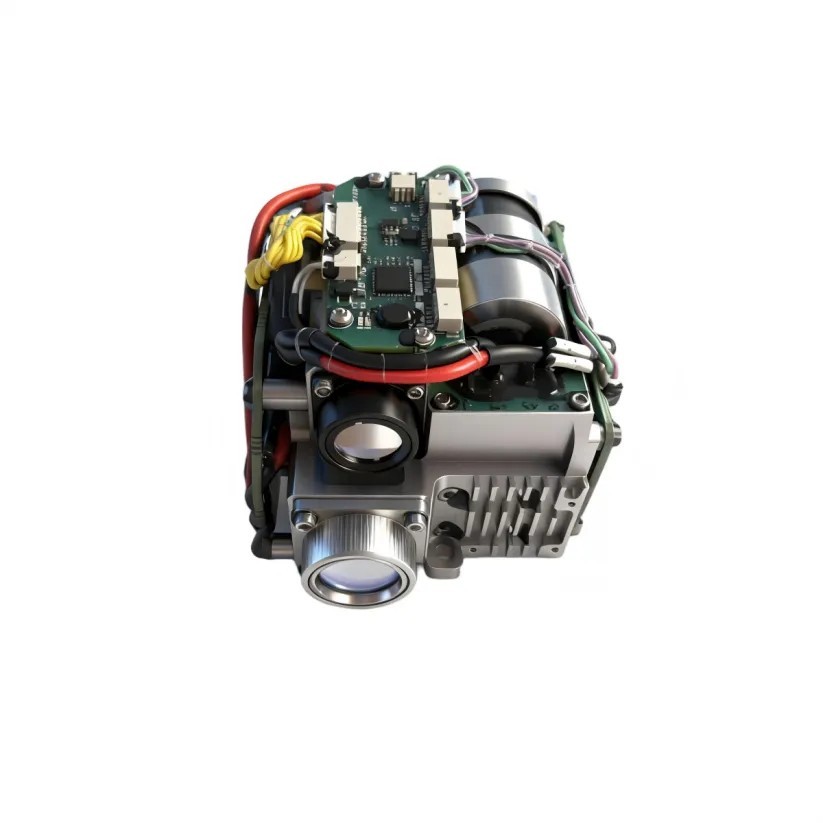

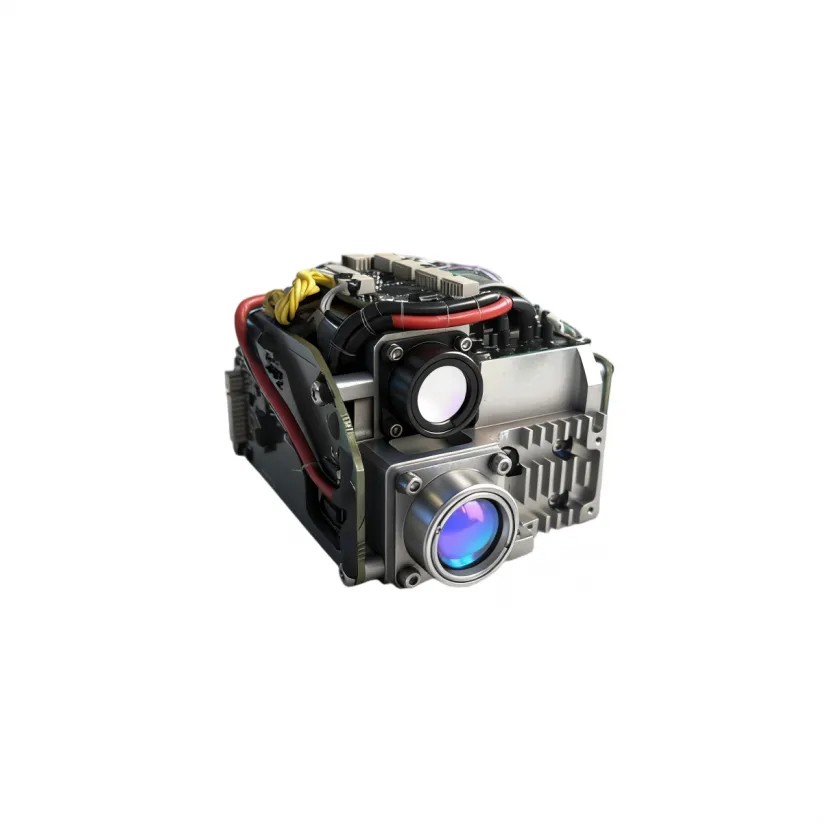

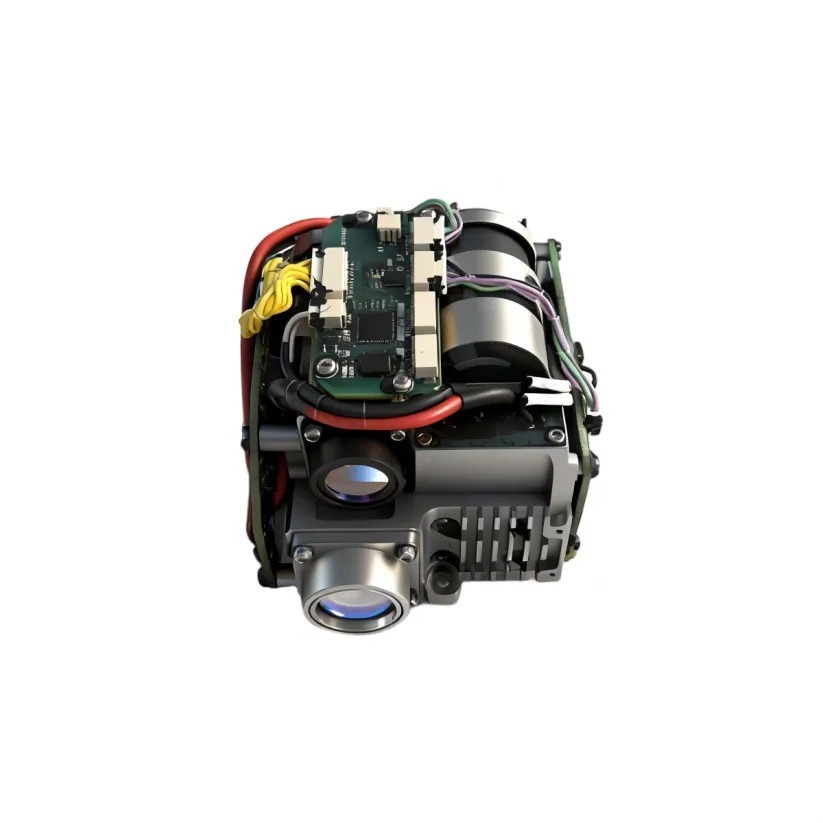

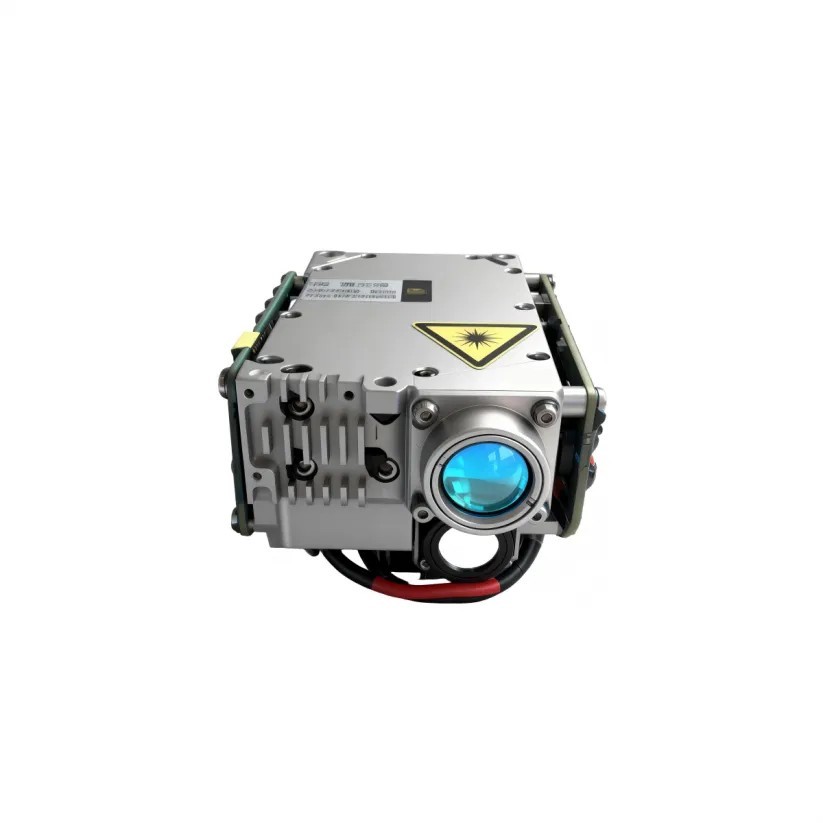

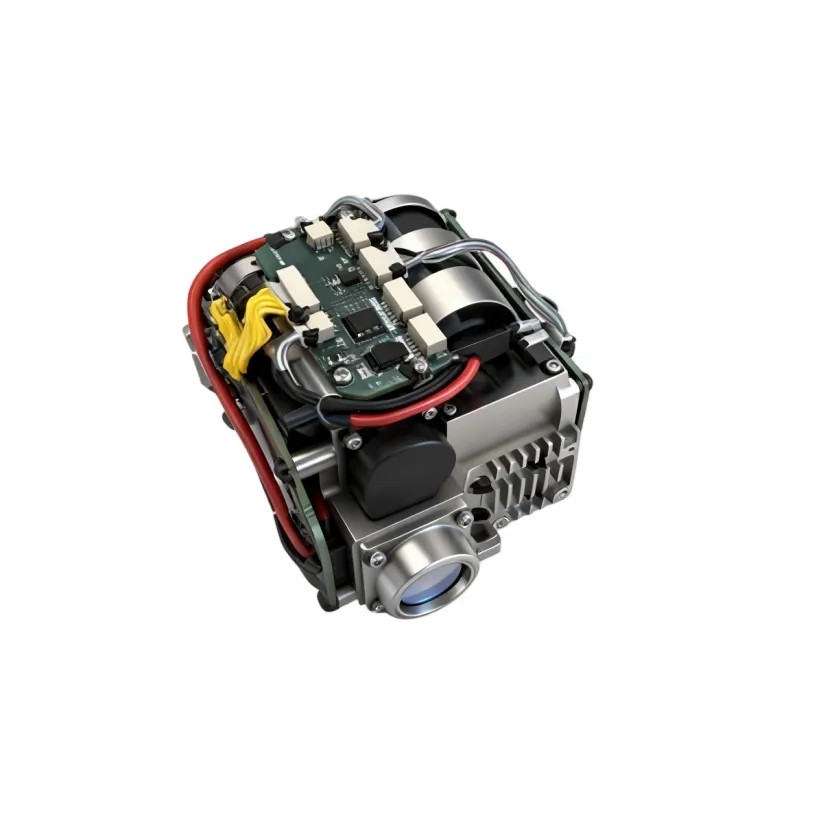

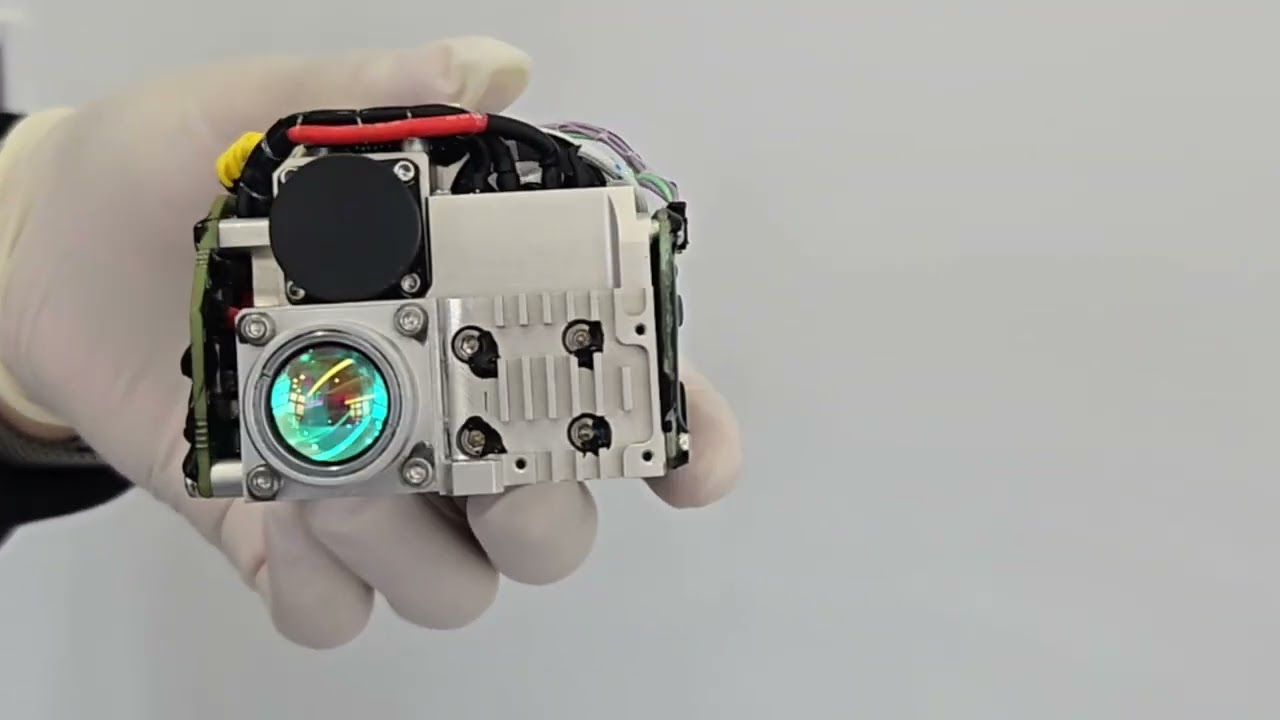

ERDI LASER® LDR20K1 is a lightweight 1064 nm laser target designator and 5 km laser rangefinder designed for UAV turrets, airborne EO/IR gimbals, and compact targeting pods. Delivering ≥20 mJ pulse energy,0.6 mrad beam divergence, it supports single-shot and continuous ranging with ±1 m accuracy and ≥98% acquisition rate. Its precise 20 Hz frequency-coded designation ensures reliable target marking for guided munition systems.
Key Advantage
- Dual-function design: Combines 1064 nm wavelength laser target designation with 5 km precision ranging in a single compact module.
- High-performance targeting: 20 mJ energy, 20 Hz coding frequency, and accurate pulse-code designation supporting guided strike systems.
- Reliable long-range ranging: ±1 m accuracy, ≥98% hit rate, first/last-target logic, and stable performance across temperature extremes.
- Lightweight & integration-ready: ≤290 g with RS-422 digital control, serial-command operation, range gating, and real-time status output.
- Mission-proven durability: Withstands –40 °C to +55 °C, 2 g vibration, 10 g shock, and demanding airborne mission profiles.
- Smart diagnostics: Power-on self-test, periodic self-test, laser pulse count reporting, and automated safety timeouts.
TECHNICAL PARAMETERS
|
Control Function |
||
|
The laser target indicator can achieve the following control functions through the serial interface. |
1. Respond to the laser ranging command and be able to stop the ranging operation at any time according to the stop command. 2. Output distance data and status information once for each pulse during the ranging process. 3. The ranging function has a range gating feature 4. After starting continuous ranging, if no stop command is received, the ranging will automatically stop after 5 minutes (at a frequency of 1Hz) / 1 minute (at a frequency of 5Hz). 5. It is possible to set the illumination mode and encoding 6. Respond to the laser target indication command, perform target indication according to the set mode, encoding, and target, and be able to stop the target indication at any time according to the stop command. 7. After starting the target indication, if no stop command is received, the target indication will automatically stop after one cycle. 8. Output the distance value and status information once for each pulse during the laser target indication. 9. Conduct power-on self-check and periodic self-check and output status information. 10. Respond to the self-check activation command and output status information. 11. Be able to report the cumulative number of laser pulses. |
|
|
Parameter Indicators |
||
|
Pump Source |
Laser LD (Laser Diode) Pumping |
|
|
Cooling Method |
Passive cooling, no temperature control |
|
|
Working Mode |
Ranging, target indication |
|
|
Operating Wavelength |
1.064μm |
|
|
Pulse Energy |
≥20 mJ |
|
|
Laser Energy Stability |
Within one target indication cycle, the fluctuation of the single-pulse energy does not exceed 10% of the average energy (statistical data is collected 2 seconds after the light is emitted). |
|
|
Pulse Width |
≥15 ns±5ns |
|
|
Beam Divergence Angle |
≤0.6mrad |
|
|
Stability of The Laser Optical Axis |
≤0.05mrad |
|
|
Ranging performance |
||
|
Ranging frequency |
1~20Hz |
|
|
Continuous Laser Ranging Time |
5min(1Hz)/1min (5Hz)/20S(20hz) |
|
|
Minimum measuring distance |
≤ 300m. |
|
|
Maximum measuring distance |
≥ 5000m(Visibility: 13.5 km, target reflectivity: 0.2, target size: 2.3 m × 4.6 m) |
|
|
Ranging accuracy |
±1m. |
|
|
Rate of successful measurement |
98%. |
|
|
Ranging logic |
first and last target. |
|
|
Irradiation performance |
||
|
Precision of laser coding |
≤1μs |
|
|
Laser Irradiation Frequency |
1~20Hz |
|
|
Laser Irradiation Distance |
≥ 2 km |
|
|
Laser Target Designation Cycle |
1. Short-cycle Target Designation: 2. Long-period Target Indication: |
|
|
Laser Coding |
||
|
It complies with the requirements of MIL-STD-810G standard and has the expandable capability of user self-coding. |
||
|
It has the ability to receive external synchronous signals and encodes by controlling the laser beam emitting mode through external signals. |
||
|
Coding method: Precise frequency code (encoded with eight groups of pre-stored periodic codes). |
||
|
Dimensions and Weight |
||
|
External Dimension Envelope |
≤92mm×67mm×53mm |
|
|
Weight |
≤290g |
|
|
Input Power Supply Requirements |
||
|
During operation, the average power consumption is not more than 55W, and the peak power consumption is not more than 100W. |
||
|
The operating voltage range is from 20V ~ 28V. |
||
|
Three-proofing for Electrical Components |
||
|
After the circuit board is designed and debugged, it is coated with three-proofing paint for “three-proofing” treatment. |
||
|
Environmental adaptability requirements |
||
|
High Temperature |
Operating temperature |
≤ +55°C |
|
|
Storage temperature range |
≥ -40°C |
|
Low Temperature |
Operating temperature |
≥ -40°C |
|
|
Storage temperature range |
≥ -45°C |
|
Vibration Requirements |
1. It can withstand the flight vibration as well as the impacts during takeoff and landing, and all equipment can withstand the environmental conditions of automobile transportation. 2. The vibration is in the form of a swept frequency spectrum. From 15Hz to 33Hz, it is a sinusoidal vibration with equal displacement, and the displacement magnitude is 0.91mm; from 33Hz to 700Hz, it is a sinusoidal vibration with equal acceleration, and the acceleration is 2g. 3. Vibrate in each of the three directions for 1 hour. 4. Specimen Status: The product is placed on the test bench in the normal operating state for the impact test, and the product is powered on. 5. After the impact test, the product should operate normally. |
|
|
Shock Requirements |
1. Vertical axial direction: ≥ 10g, 2. Horizontal axis direction: ≥ 10g, 3. Longitudinal axis direction: ≥ 10g; 4. Post-peak sawtooth wave with a duration of 11ms. For the X, Y, and Z axes, in two directions of each axis, once for each direction, a total of 18 times. 5. Specimen Status: The product is placed on the test bench in the normal use state for the shock test, and the product is powered on. |
|
DIMENSION(mm)
INTERFACE
Electrical Interface
Communication interface: RS422
Connector model and interface definition: see Table 1.
Connector: MOLEX 53048-0810
Mating plug: MOLEX 51021-0800
Table 1 — Electrical Interface Definition (TTL)
|
Pin No. |
Signal Name |
Description |
|
1 |
Vin |
Power supply +24 V |
|
2 |
Vin |
Power supply +24 V |
|
3 |
GND |
Power return (–) |
|
4 |
GND |
Power return (–) |
|
5 |
RX1+ |
Host → Laser rangefinder/designator module (RS-422 RX+) |
|
6 |
RX1– |
Host → Laser rangefinder/designator module (RS-422 RX–) |
|
7 |
TX1– |
Laser rangefinder/designator module → Host (RS-422 TX–) |
|
8 |
TX1+ |
Laser rangefinder/designator module → Host (RS-422 TX+) |
External trigger interface:
|
Pin No. |
Signal Name |
Description |
|
1 |
TBI |
External trigger + (triggered on rising edge) |
|
2 |
TBG |
External trigger – |
Figure — Electrical Interface Diagram
