PRODUCT DESCRIPTON

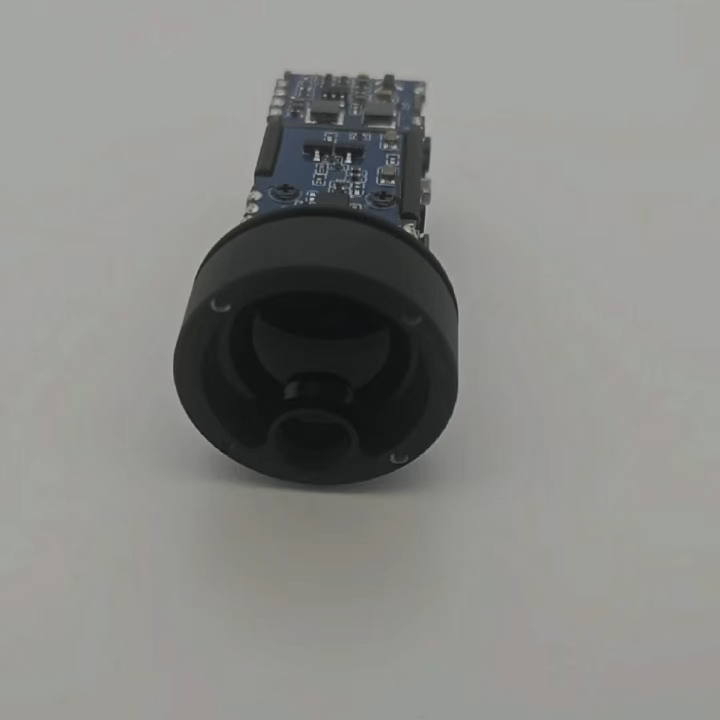

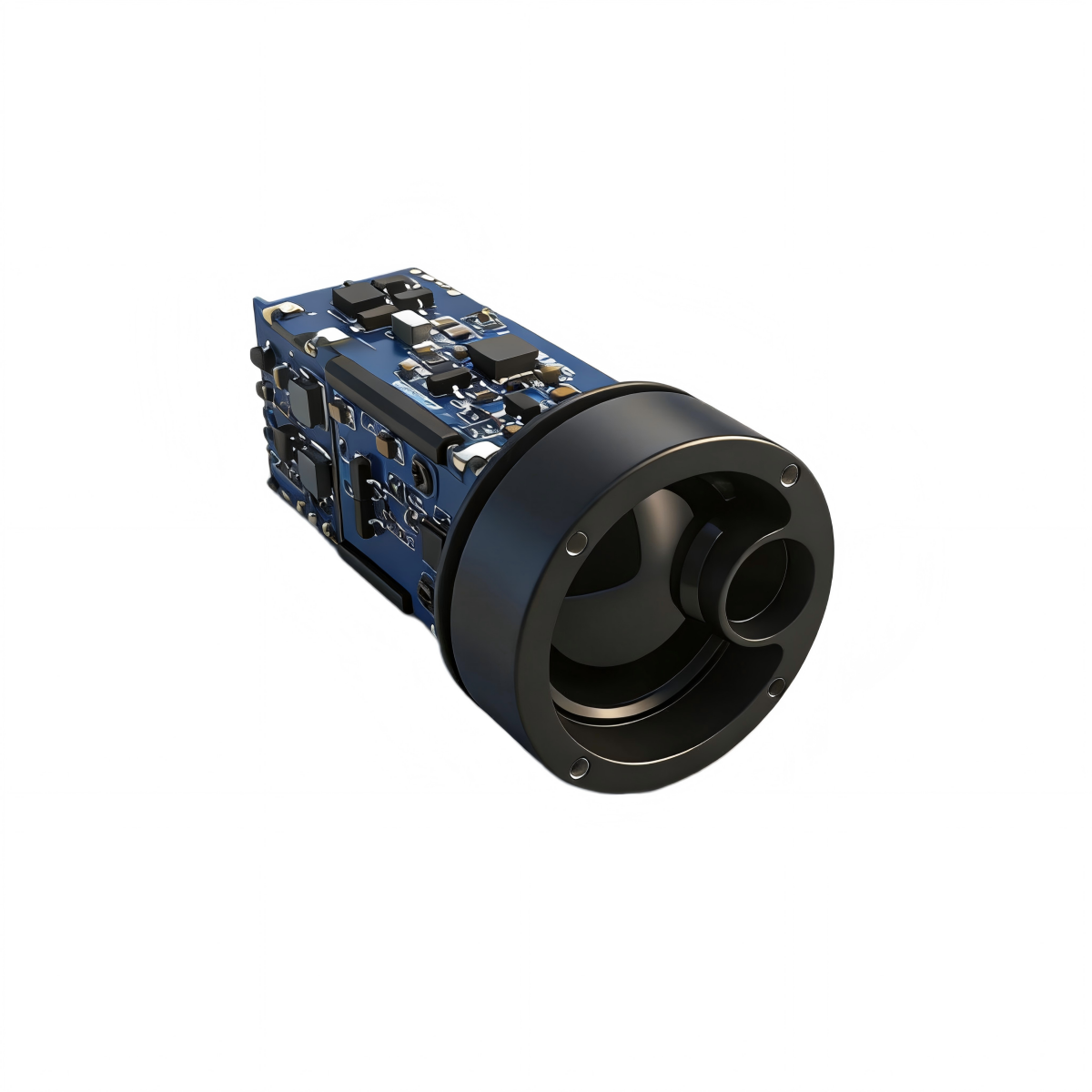

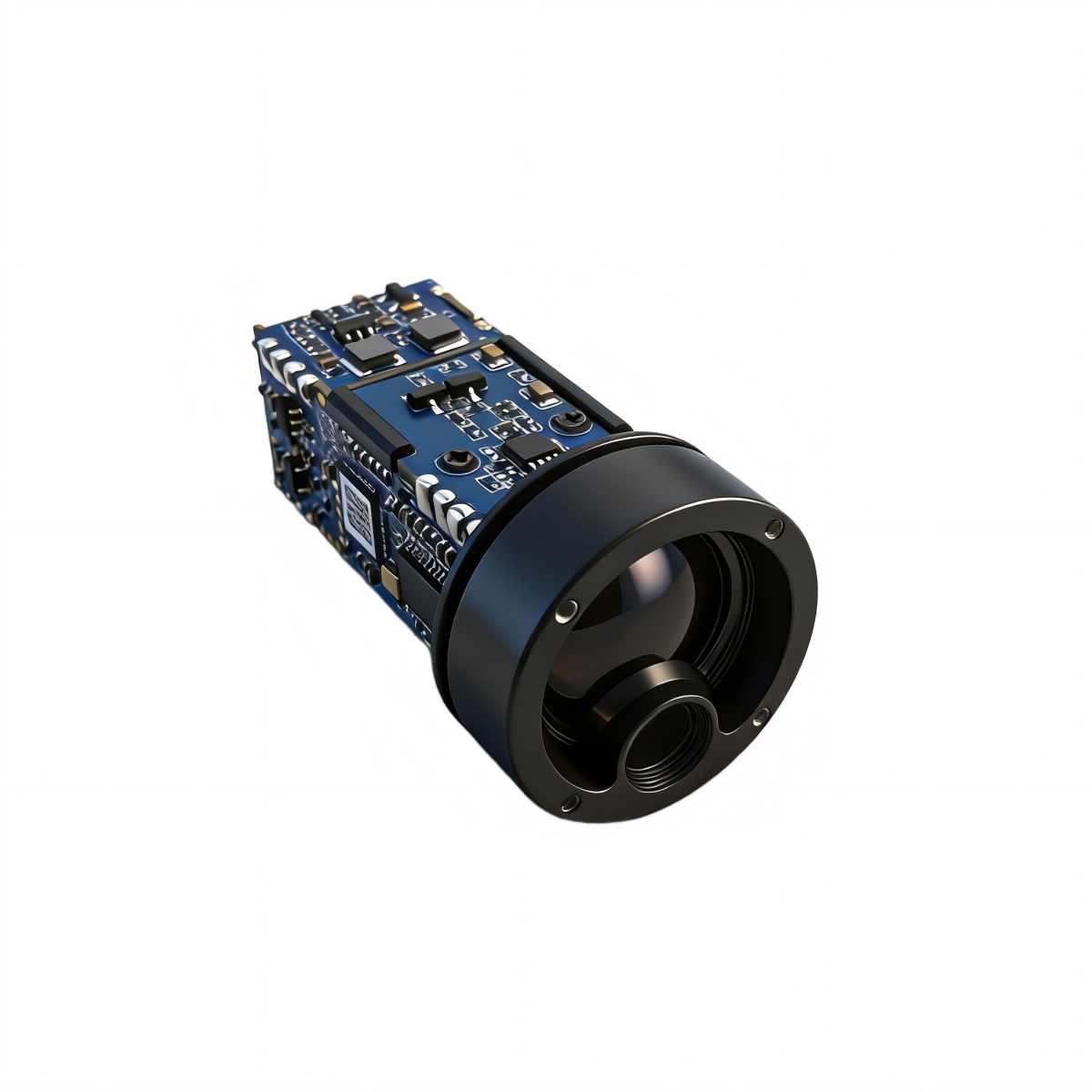

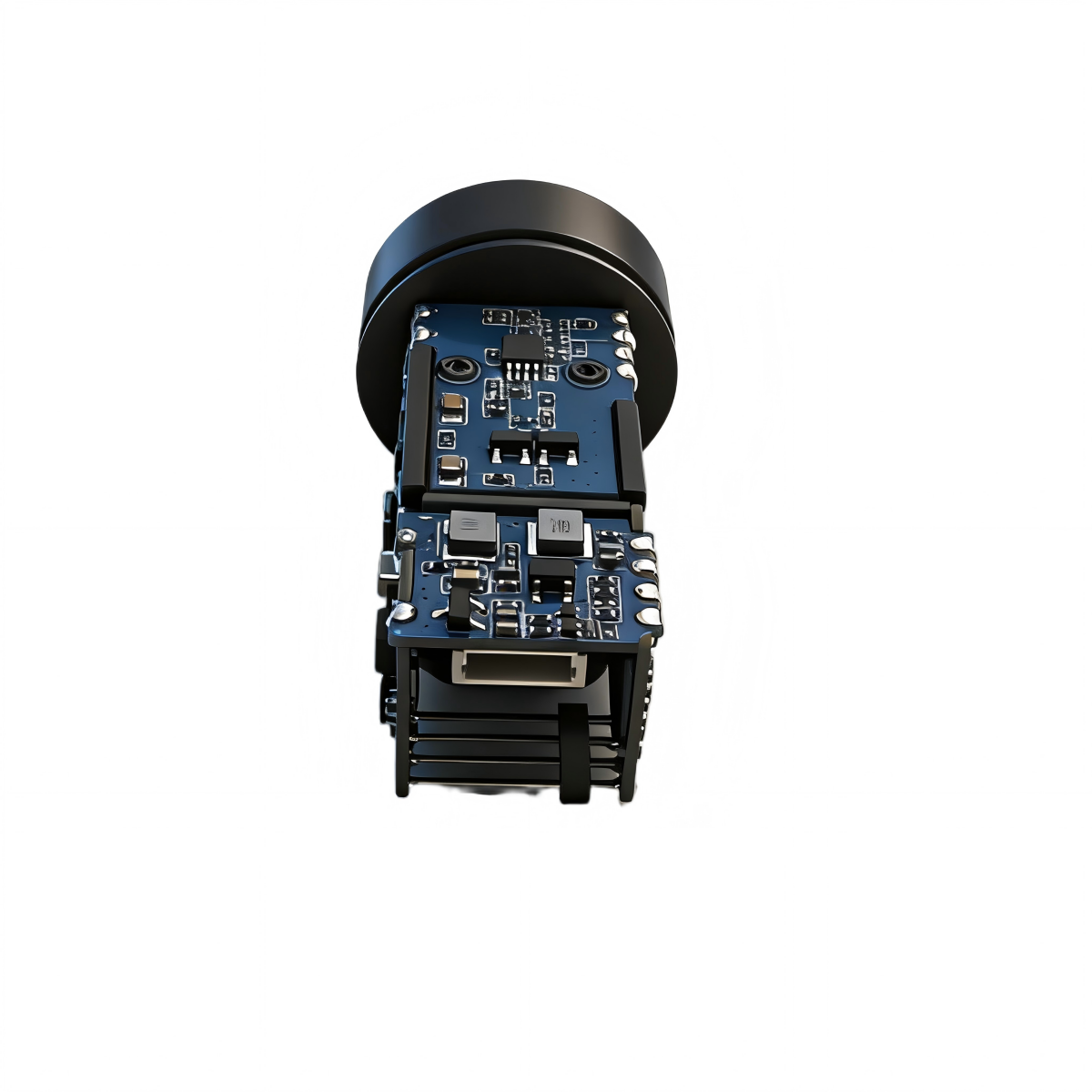

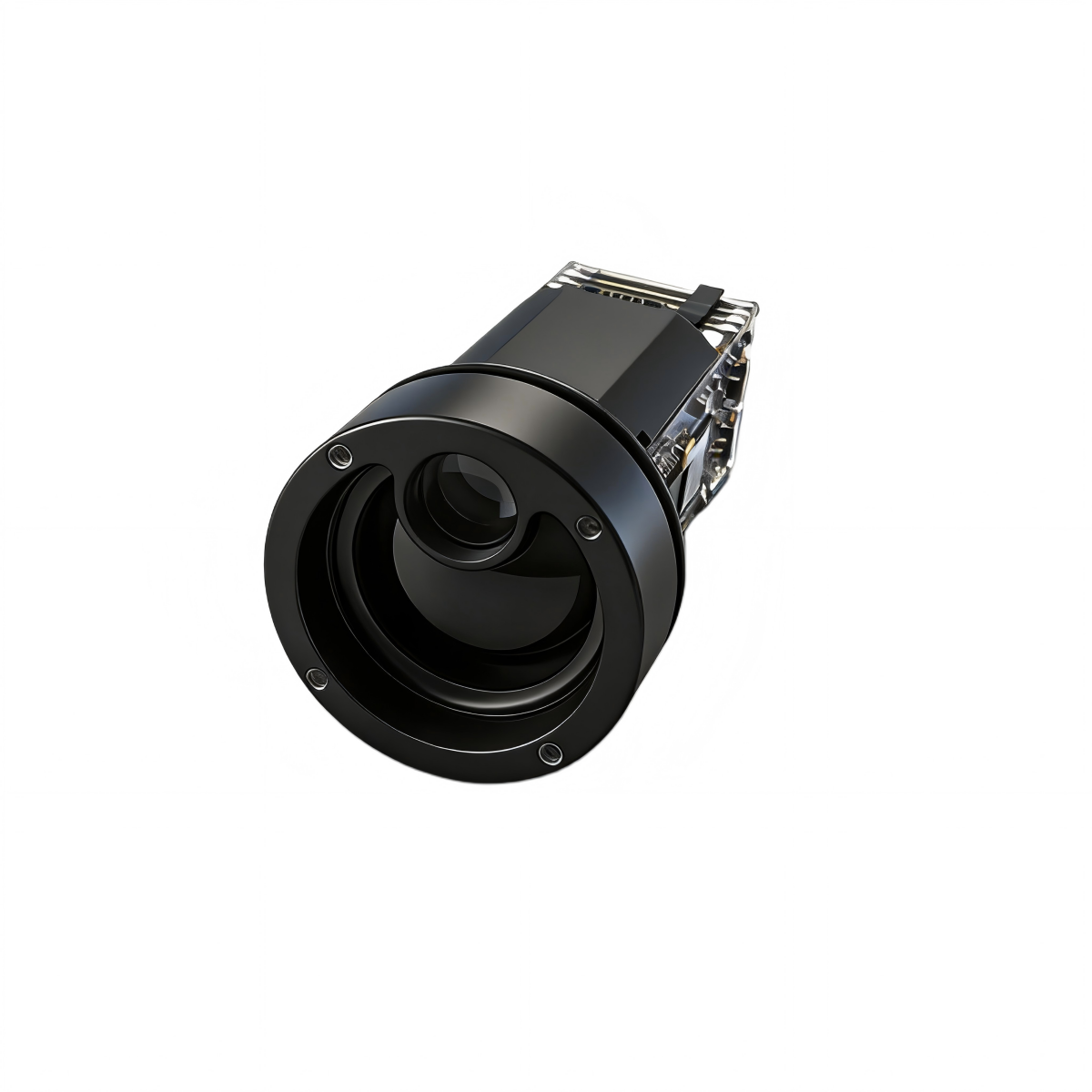

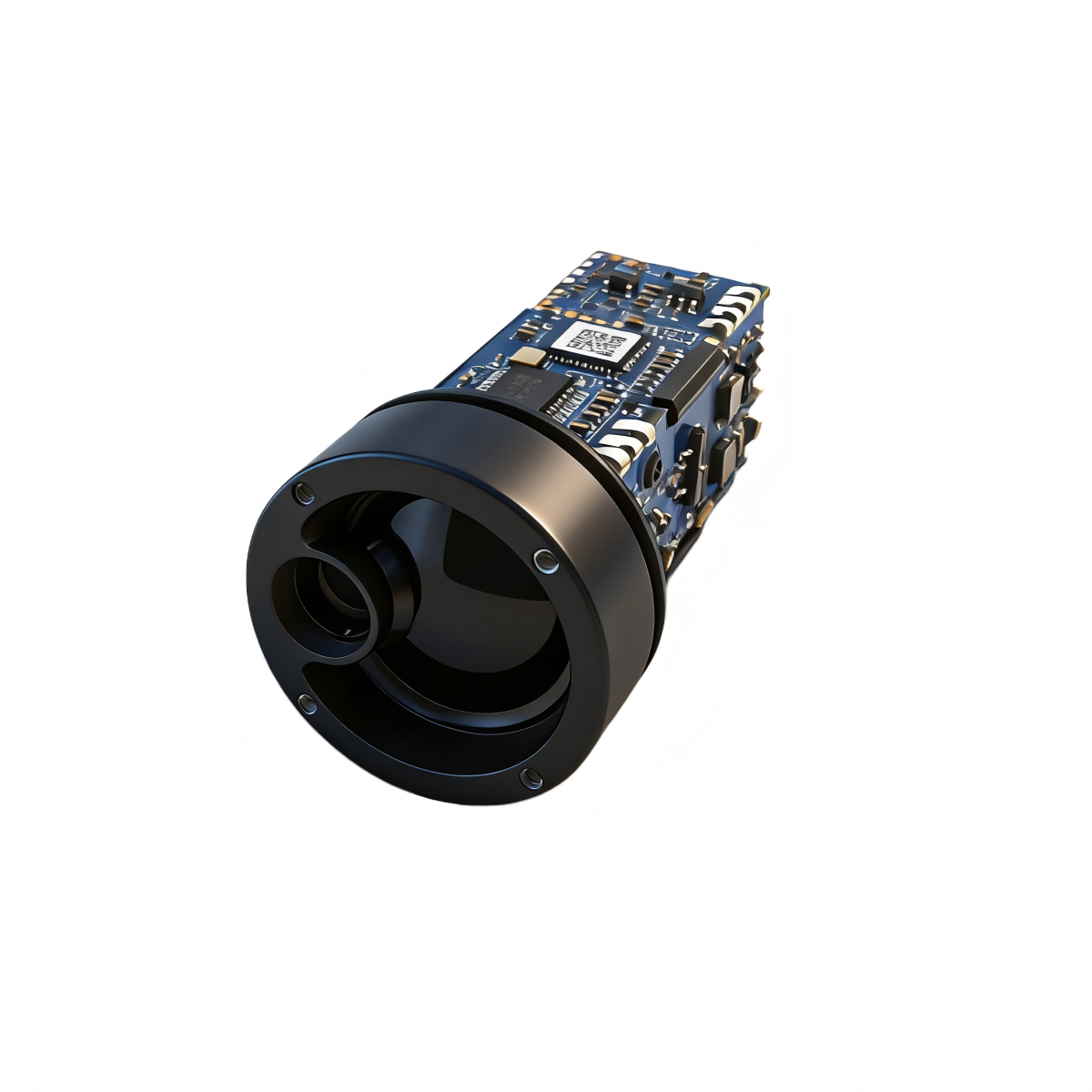

The ERDI LASER® LR1000D25 is a compact 905nm laser rangefinder module designed for precise distance measurement up to 1000 m. The module integrates a stable optical system, optimized signal processing, and a UART-TTL interface, enabling reliable performance in electro-optical and embedded applications requiring accurate and efficient distance sensing.
Key Advantages
- High Measurement Accuracy Across Full Range: Optimized ranging algorithm achieves ±1 m accuracy at short-to-medium distances and improved proportional accuracy at longer distances.
- Compact Mechanical Structure: Small cylindrical design (Ø25 mm × 46.1 mm) supports easy integration into portable electro-optical equipment and UAV payloads.
- Stable Measurement Performance: High valid measurement rate (≥98%) and low false alarm rate (≤1%) ensure reliable distance output in practical environments.
- Configurable Ranging Frequency: Adjustable measurement frequency from 3–10 Hz allows flexible adaptation to dynamic or static measurement tasks.
- Low Power Consumption: Average power consumption below 0.8 W supports battery-powered and embedded system applications.
- Integration-Friendly Interface: UART-TTL communication protocol simplifies system integration and secondary development.
TECHNICAL PARAMETERS
|
Parameter |
Specification |
|
Laser Wavelength |
905 nm ± 5 nm |
|
Laser Beam Divergence |
< 6 mrad (small laser spot: approx. 3.2 cm × 3.2 cm at 10 m) |
|
Optical Material |
Resin Aspherical Lens |
|
Receiver Aperture |
20 mm ± 0.05 mm |
|
Ranging Range |
4 m – 1000 m |
|
Ranging Accuracy |
δ ≤ ±1m,6m ≤ d < 400m1） δ ≤ ±50cm+d*1‰, 400m ≤ d ≤ 1000m2） |
|
Ranging Frequency |
3–10 Hz (customizable) |
|
Ranging Resolution |
Typical value: 20 cm |
|
Valid Measurement Rate |
≥ 98% |
|
False Alarm Rate |
≤ 1% |
|
Communication Interface |
UART-TTL (customizable) |
|
Baud Rate |
115200 bps |
|
Supply Voltage |
3.3 V–5 V (recommended supply voltage ≥ 3.5 V) |
|
Operating Power Consumption |
Average power consumption < 0.8 W |
|
Peak Current |
Typical inrush current ≈ 350 mA (at typical voltage 3.3 V) |
|
Operating Temperature |
Operating temperature: -20°C to +55°C |
|
Storage Temperature |
Storage temperature: -40°C to +60°C |
|
Protection Rating |
No external rating (IP67 inside lens cavity) |
|
Laser Safety Class |
IEC Class 1 |
|
Dimensions |
Ø25 mm × 46.1 mm |
|
Weight |
Approx. 23 g |
|
Shock |
1000 g/ms (10 times/s along optical axis) |
|
Vibration |
5–50–5 Hz, 1 octave/min, 2.5 g |
|
Reliability |
MTBF ≥ 1500 h |
INTERFACE
|
Pin |
Definition |
Description |
|
1 |
SW-SHOT |
Function Enable (active high) Note: Compatible with active-low control requirements |
|
2 |
RXD |
Signal input port, Host → Ranging Module |
|
3 |
TXD |
Signal output port, Ranging Module → Host |
|
4 |
I/O (Reserved) |
Reserved for expansion |
|
5 |
VCC |
Power + |
|
6 |
GND |
Power − |
Information Download
-
PRODUCT DESCRIPTON
-
TECHNICAL PARAMETERS
-
INTERFACE
-
Information Download
The ERDI LASER® LR1000D25 is a compact 905nm laser rangefinder module designed for precise distance measurement up to 1000 m. The module integrates a stable optical system, optimized signal processing, and a UART-TTL interface, enabling reliable performance in electro-optical and embedded applications requiring accurate and efficient distance sensing.
Key Advantages
- High Measurement Accuracy Across Full Range: Optimized ranging algorithm achieves ±1 m accuracy at short-to-medium distances and improved proportional accuracy at longer distances.
- Compact Mechanical Structure: Small cylindrical design (Ø25 mm × 46.1 mm) supports easy integration into portable electro-optical equipment and UAV payloads.
- Stable Measurement Performance: High valid measurement rate (≥98%) and low false alarm rate (≤1%) ensure reliable distance output in practical environments.
- Configurable Ranging Frequency: Adjustable measurement frequency from 3–10 Hz allows flexible adaptation to dynamic or static measurement tasks.
- Low Power Consumption: Average power consumption below 0.8 W supports battery-powered and embedded system applications.
- Integration-Friendly Interface: UART-TTL communication protocol simplifies system integration and secondary development.
|
Parameter |
Specification |
|
Laser Wavelength |
905 nm ± 5 nm |
|
Laser Beam Divergence |
< 6 mrad (small laser spot: approx. 3.2 cm × 3.2 cm at 10 m) |
|
Optical Material |
Resin Aspherical Lens |
|
Receiver Aperture |
20 mm ± 0.05 mm |
|
Ranging Range |
4 m – 1000 m |
|
Ranging Accuracy |
δ ≤ ±1m,6m ≤ d < 400m1） δ ≤ ±50cm+d*1‰, 400m ≤ d ≤ 1000m2） |
|
Ranging Frequency |
3–10 Hz (customizable) |
|
Ranging Resolution |
Typical value: 20 cm |
|
Valid Measurement Rate |
≥ 98% |
|
False Alarm Rate |
≤ 1% |
|
Communication Interface |
UART-TTL (customizable) |
|
Baud Rate |
115200 bps |
|
Supply Voltage |
3.3 V–5 V (recommended supply voltage ≥ 3.5 V) |
|
Operating Power Consumption |
Average power consumption < 0.8 W |
|
Peak Current |
Typical inrush current ≈ 350 mA (at typical voltage 3.3 V) |
|
Operating Temperature |
Operating temperature: -20°C to +55°C |
|
Storage Temperature |
Storage temperature: -40°C to +60°C |
|
Protection Rating |
No external rating (IP67 inside lens cavity) |
|
Laser Safety Class |
IEC Class 1 |
|
Dimensions |
Ø25 mm × 46.1 mm |
|
Weight |
Approx. 23 g |
|
Shock |
1000 g/ms (10 times/s along optical axis) |
|
Vibration |
5–50–5 Hz, 1 octave/min, 2.5 g |
|
Reliability |
MTBF ≥ 1500 h |
|
Pin |
Definition |
Description |
|
1 |
SW-SHOT |
Function Enable (active high) Note: Compatible with active-low control requirements |
|
2 |
RXD |
Signal input port, Host → Ranging Module |
|
3 |
TXD |
Signal output port, Ranging Module → Host |
|
4 |
I/O (Reserved) |
Reserved for expansion |
|
5 |
VCC |
Power + |
|
6 |
GND |
Power − |
Learn More
- Laser wavelength: 905 nm ± 5 nm
- Measurement range: 4 m – 1000 m
- Accuracy:
- ±1 m (6 m – 400 m)
- ±(0.5 m + 0.1% × distance) (400 m – 1000 m)
- Measurement frequency: 3 – 10 Hz configurable
- Resolution: 0.2 m typical
- Interface: UART TTL (115200 bps)
- Supply voltage: 3.3 – 5 V
- Average power consumption: < 0.8 W
- Weight: approx. 23 g
- Dimensions: Ø25 mm × 46.1 mm
- Laser class: IEC Class 1 eye safe
LR1000D25 laser rangefinder module is suitable for:
- electro-optical observation systems
- UAV payload distance sensing
- handheld thermal imaging devices
- night vision equipment integration
- laser targeting systems
- perimeter monitoring and surveillance
- railway and infrastructure inspection
- industrial automation measurement
- smart sensing and positioning systems
- outdoor distance measurement equipment
- specialized manufacturer of laser ranging modules and electro-optical solutions
- extensive experience in UAV and industrial integration
- support for OEM and customized solutions
- stable product performance across diverse environments
- engineering support for system integration
What is the maximum measurement distance?
The module supports reliable ranging capability up to 1000 m under standard measurement conditions.
What interface does the module use?
LR1000D25 uses a UART TTL interface, enabling easy integration into embedded electronic systems.
Is the laser safe for human eyes?
Yes, the module complies with IEC Class 1 laser safety standards.
Can the ranging frequency be customized?
Yes, the measurement frequency can be configured between 3 Hz and 10 Hz depending on application requirements.
Is the module suitable for UAV integration?
Yes, its compact size and low power consumption make it suitable for UAV electro-optical payloads.
